Wika Bourdon Tube Pressure Gauge Model 213.53.063, 0…250 Bar With Liquid Filled Case, 63 mm (2.5") Dial, 1/4" NPT Connection, Center Back Mount, Stainless Steel Case, Class 1.6 Accuracy, IP65, 84254733
Part Number : 84254733
Brand :
![WIKA]()

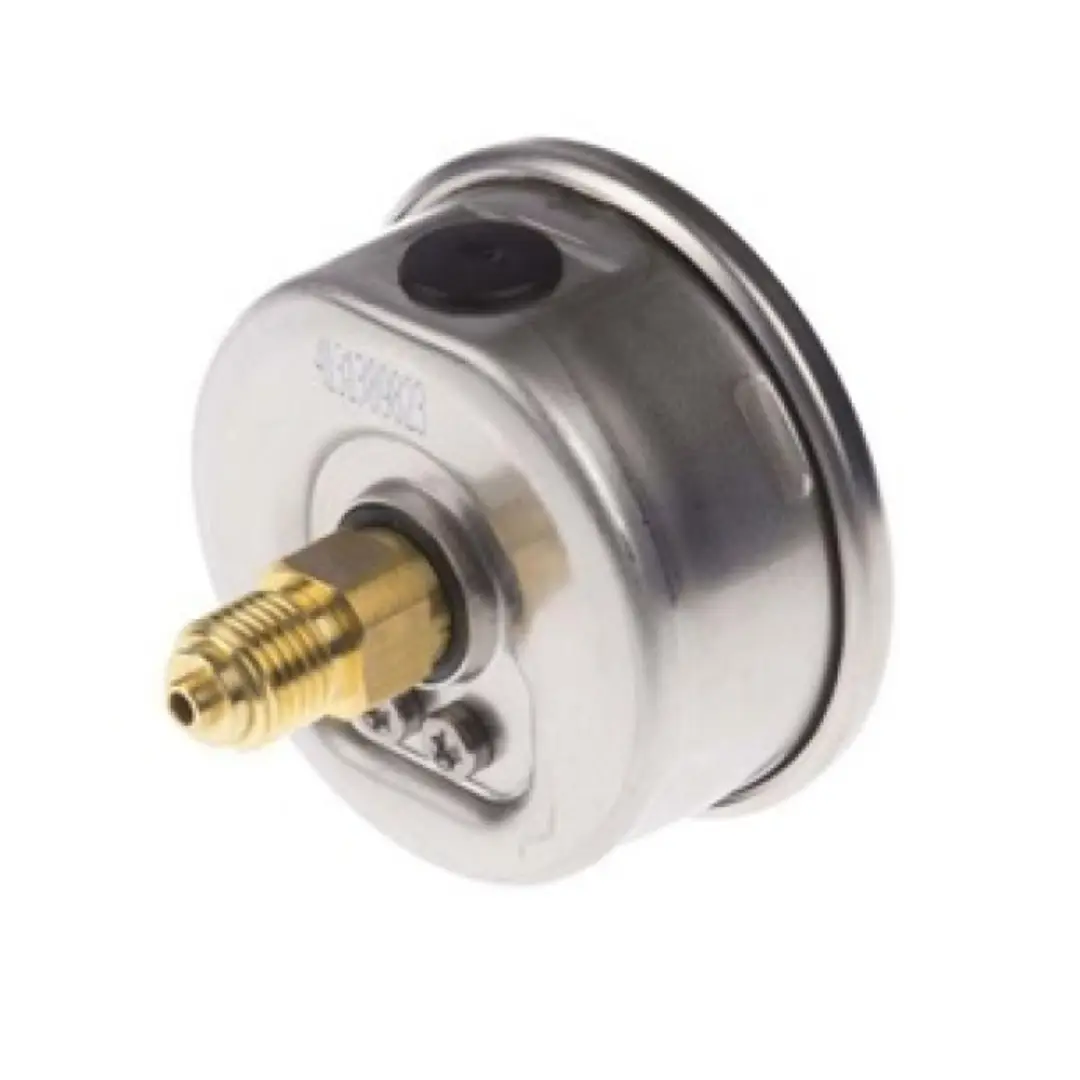

WIKA model 213.53.063 liquid filled Bourdon tube pressure gauge with stainless steel case, 0…250 bar (primary scale) with PSI secondary scale, 63 mm (2.5") dial and 1/4" NPT, center back mount for reliable industrial pressure monitoring.
View all
KWD 10.000
Description
The WIKA 213.53.063 Bourdon tube pressure gauge is a compact, liquid filled gauge designed for reliable measurement of bar pressures in demanding industrial environments. The liquid filling damps pointer vibration and pulsation, ensuring clear readability even under fast load cycles or strong machine vibration. A robust stainless steel case combined with a Copper alloy pressure element and copper alloy movement offers long service life for non-aggressive gaseous and liquid media that are not highly viscous or crystallising. The 63 mm (2.5") dial provides a clear dual scale display, while the 1/4" NPT center back mount simplifies installation on manifolds, panels and equipment. With Class 1.6 to EN 837-1 and IP65 ingress protection, this gauge is suitable for a wide range of general industrial, hydraulic, pneumatic and utility applications where dependable local pressure indication is required.
Key Features
• Liquid filled Bourdon tube pressure gauge for reliable indication under vibration and pulsation • Stainless steel case with Copper alloy pressure element and copper alloy movement • 63 mm (2.5") dial with clear dual scale display in PSI and bar • 1/4" npt center back mount process connection for easy panel or equipment installation • Class 1.6 to EN 837-1 for dependable indication in industrial service • IP65 ingress protection for demanding indoor and outdoor environmentsTypical Applications
• Hydraulic and pneumatic systems • Pumps, compressors and pressure booster skids • General industrial machinery and OEM equipment • Process lines for non-aggressive gases and liquids compatible with copper alloys • Utility, maintenance and workshop pressure monitoringSpecifications
