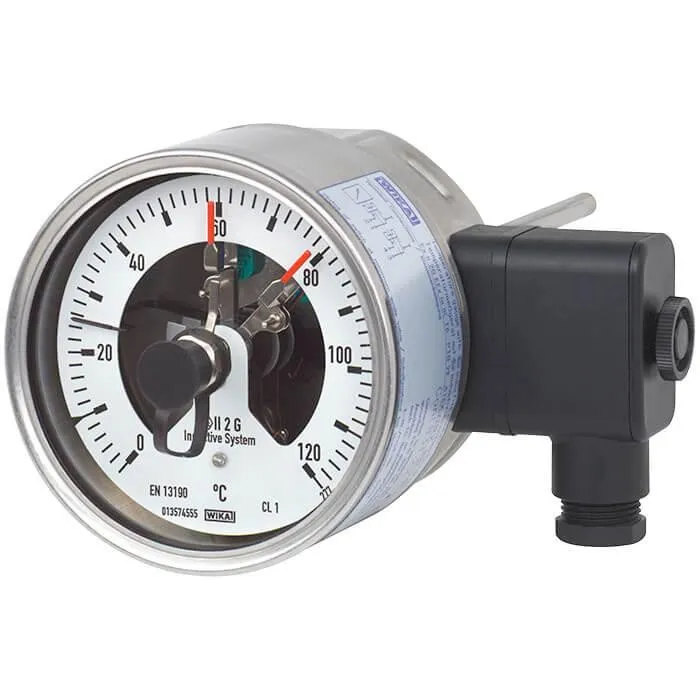

Wika Bimetal Thermometer With Switch Contacts, TGS55

Part Number : TGS55

Brand :
WIKA

Wherever the process temperature has to be indicated on-site and, at the same time, circuits need to be switched, the bimetal thermometer with switch contacts finds its use.

View all
Quantity
Description
Downloads
Related products

Description

Wherever the process temperature has to be indicated on-site and, at the same time, circuits need to be switched, the bimetal thermometer with switch contacts finds its use. Switch contacts (electrical alarm contacts) make or break circuits dependent upon the pointer position of the indicating measuring instrument. The switch contacts are adjustable over the full measuring range. The instrument pointer (actual value pointer) moves freely across the entire scale range, independent of the setting. The set pointer can be adjusted via the window using a removable adjustment key (mounted on the terminal box). Switch contacts consisting of several contacts can also be set to a single set point. Contact actuation is made when the actual value pointer travels beyond and below the desired set point. As switch contacts, inductive contacts and electronic contacts are available. Inductive contacts can be used in hazardous areas. For triggering programmable logic controllers (PLC), electronic contacts can be used.

Applications

Control and regulation of industrial processes Monitoring of plants and switching of circuits Chemical industry, petrochemical industry, process technology and food industry For aggressive media

Special features

High reliability and long service life Universal application Case and stem from stainless steel Instruments with inductive contacts for use in hazardous areas Instruments with contacts for PLC applications

Downloads

TGS55 Data sheet TV 25.01.pdf

pdf
Download

TGS55 Operating Instruction.pdf

pdf
Download
