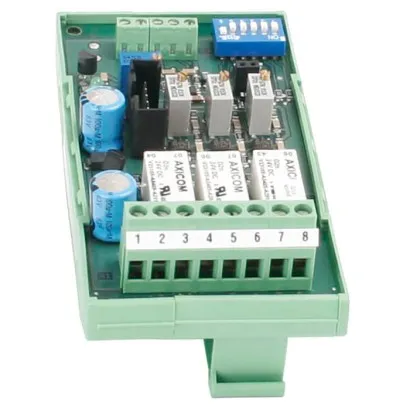

Wika Analogue Limit Switch, EGS01

Part Number : EGS01

Brand :
WIKA

The model EGS01 analogue amplifier with relay outputs works as a DC amplifier for strain gauge measuring bridges.

View all
Quantity
Description
Downloads
Related products

Description

The model EGS01 analogue amplifier with relay outputs works as a DC amplifier for strain gauge measuring bridges. Three downstream comparators, each with one adjustment potentiometer, make it possible to set three different switching thresholds, which correspond to a specific load of the connected strain gauge force transducer. Each comparator output controls a relay and a control LED. When switched off or if the power supply is interrupted, the three relay contacts on the output terminals 3 to 8 are open. When switched-on and below the respective set switching threshold, the output relays are operating and the relay contacts are closed. Parallel to the relay coil, a control LED is switched. It lights up as long as the output contact is closed. The amplifier is designed for installation in a control cabinet and can be mounted on a mounting rail in a DIN rail housing made of extruded profile.

Applications

• Measuring and control systems • Machine building and plant construction • Manufacturing automation

Special features

• Limit switch for mV/V signals • 3 relay outputs • Adjustable control for switching thresholds • Simple operation and setting • Case for DIN-rail mounting

Downloads

EGS01 Data sheets.pdf

pdf
Download
