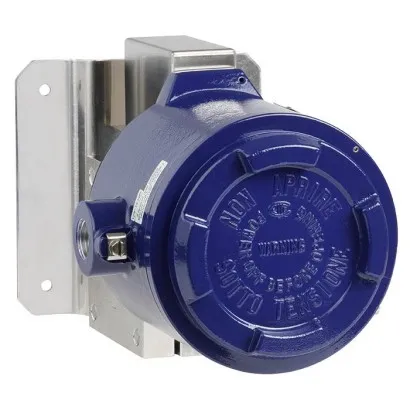

Wika Absolute Pressure Switch, APA, APA10, Flameproof Enclosure Ex D

Part Number : APA, APA10

Brand :
WIKA

These high-quality absolute pressure switches have been developed especially for safety-critical applications. The high quality of the products and manufacturing in accordance with ISO 9001 ensure reliable monitoring of your plant.

View all
Quantity
Description
Downloads
Related products

Description

These high-quality absolute pressure switches have been developed especially for safety-critical applications. The high quality of the products and manufacturing in accordance with ISO 9001 ensure reliable monitoring of your plant. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested. In order to ensure as flexible operation as possible, the absolute pressure switches are fitted with micro switches, which enable the switching of an electrical load of up to AC 250 V, 20 A directly. For lower switching power ratings, such as for PLC applications, argon gas-filled micro switches with gold-plated contacts can be selected. All wetted materials are from stainless steel as a standard. By using a diaphragm measuring system, the model APA absolute pressure switch is extremely robust and guarantees optimal operating characteristics and the highest measuring performances, with repeatability lower than 1 % of span.

Applications

• Absolute pressure monitoring and control of processes • Safety-critical applications in general process instrumentation, especially in the chemical and petrochemical industries, oil and gas industries, power generation incl. nuclear power plants, water/wastewater industries, mining • For gaseous, liquid and aggressive media, also in aggressive ambience

Special features

• No power supply needed for switching of electrical loads • Robust switch enclosure from aluminium, IP66, NEMA 4X • Setting ranges from 0 ... 25 mbar abs. to 0 ... 1.5 bar abs. • Repeatability: ? 1 % of span • 1 or 2 independent set points, SPDT or DPDT, high switching power up to AC 250 V, 20 A

Downloads

APA, APA10 Data sheets.pdf

pdf
Download

APA, APA10 Operating instructions.pdf

pdf
Download

APA, APA10 Technical information.pdf

pdf
Download
