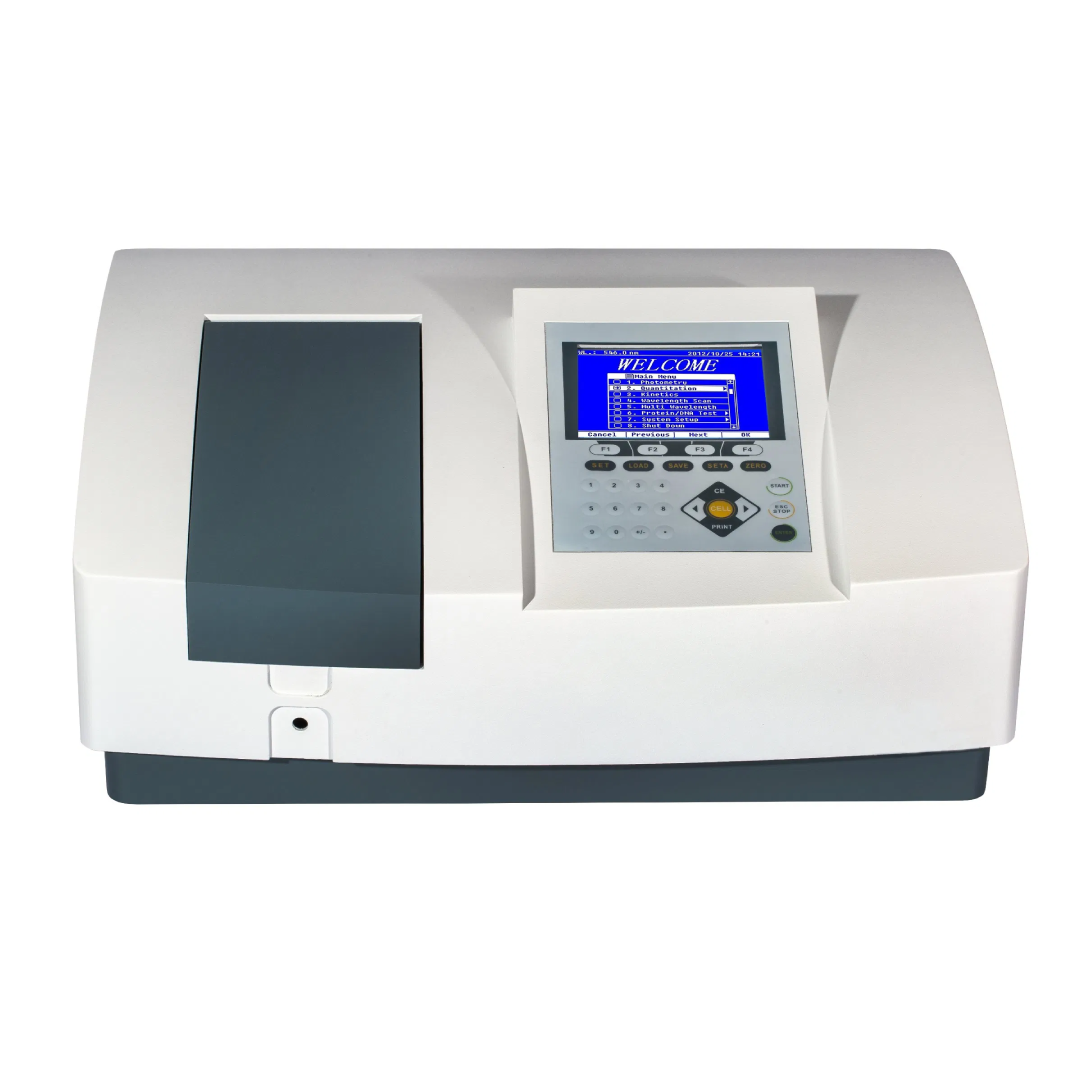

UVISON 1900 Series Double Beam Spectrophotometer, Variable Bandwidth 0.5/1/2/4/5 nm, Wavelength Range 190–1100nm, 320×240 mm LCD Display, UV1901S

Part Number : UV1901S

Brand :
UVISON

UVSON High-performance UV-Vis double beam spectrophotometer with variable spectral bandwidth, designed for accurate analysis across a wide 190–1100nm wavelength range. Ideal for applications in chemistry, biochemistry, and environmental testing.

View all

KWD 2,895.000

Quantity
Description
Specifications
Downloads
Related products

Description

The UVISON UV1901S is a high-precision UV-Vis double beam spectrophotometer engineered for advanced analytical applications in chemistry, biochemistry, environmental science, food testing, and medical diagnostics. It features a wide spectral range of 190–1100nm and variable spectral bandwidths (0.5/1/2/4/5nm), making it highly adaptable for diverse measurement needs. The instrument’s double beam optical system with 1200 lines/mm grating ensures excellent photometric accuracy, repeatability, and stability. Equipped with a large 320×240 mm LCD display, imported silicon photodiode detector, and dual light sources (deuterium & tungsten), the UV1901S delivers robust and accurate measurements with minimal noise. It comes with multiple scanning speeds, auto wavelength setting, and USB/parallel ports for efficient data handling.

Key Features

• The real double beam metering system, with advanced circuit measurement and control system, make the instrument with high reliability and low noise

• Powerful functions like photometric measurement, quantitative measurement, kinetics, spectrum scan, DNA/protein test, multi-wavelength test, etc.

• Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging

• Large room for samples can hold cuvettes of various specifications

• Auto 8-cell holder is optional.

Downloads

Datasheet UVISON UV1901S.pdf

pdf
Download

UVISON Spectrophotometer Catalogue.pdf

pdf
Download

Specifications

Optical System
Double Beam, Grating 1200 lines/mm
Wavelength Range
190 nm – 1100 nm
Spectral bandwidth
0.5/1/2/4/5 nm (Variable)
Wavelength Accuracy
±0.3 nm @ all
Wavelength Repeatability
0.1 nm
Photometric Accuracy
±0.3%T (0–100%T)
Photometric Repeatability
0.1%T (0–100%T)
Photometric Range
0–200%T, -0.3~3A, 0–9999C
Stray Light
0.05%T @ 220nm, 360nm
Stability
±0.0003A/h @ 500 nm
Baseline Flatness
±0.001A
Noise
0.0005A @ 500nm
Work Mode
T, A, C, E
Scanning Speed
Hi, Med, Low (Max. 3000 nm/min)
Wavelength Setting
Auto
Display
320 × 240 LCD
Light source
Imported Deuterium & Tungsten lamp
Detector
Imported Silicon Photodiode
Cuvette Holder
10mm single hole cell holder
Output
USB port & Parallel port (Printer)
Power
AC 220V/50Hz or AC 110V/60Hz
Shipping Size
880 × 690 × 520 mm
Gross Weight
45 kg
Standard Accessories
10mm glass cuvettes × 4, 10mm quartz cuvettes × 2, Power cord, User's Manual, PC software
