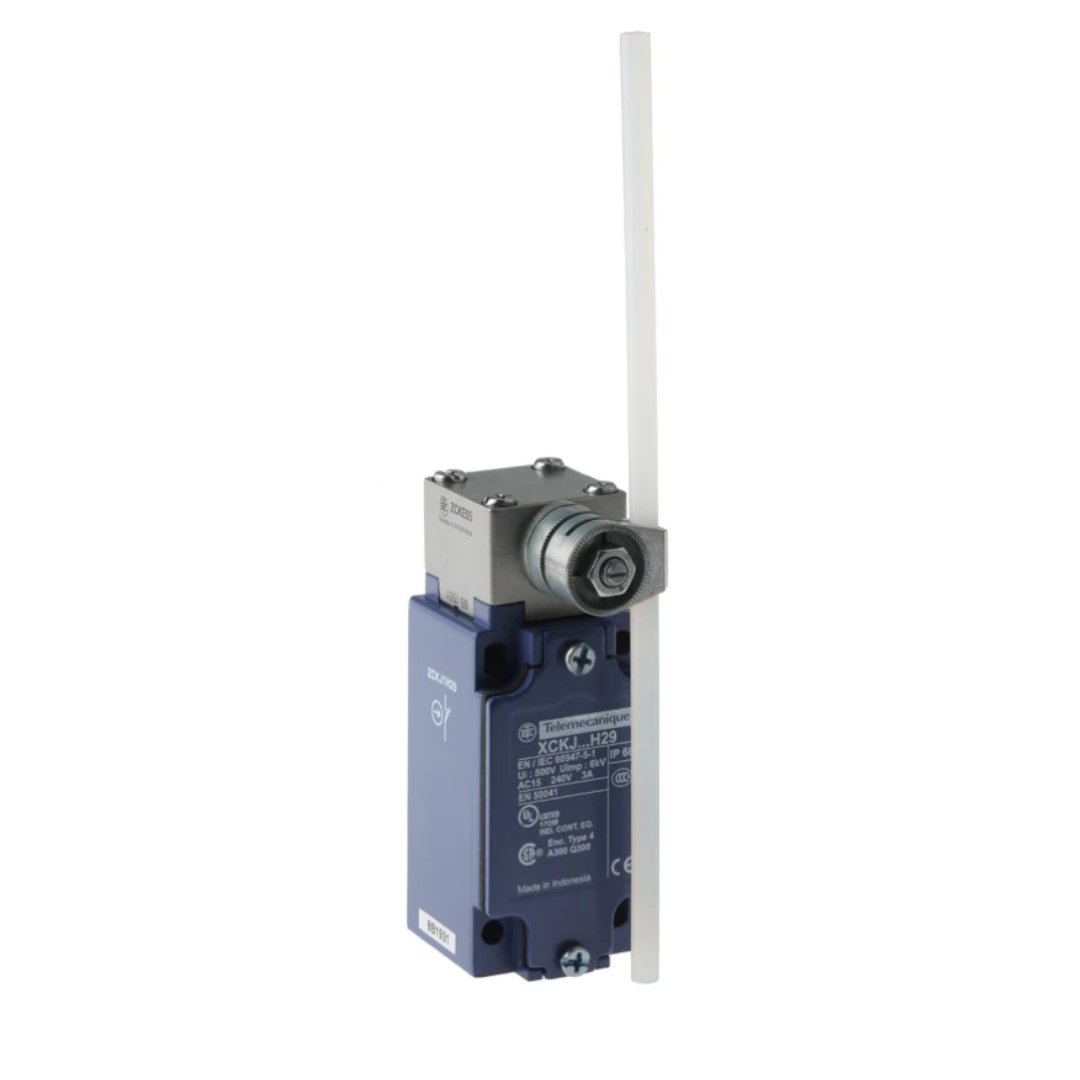

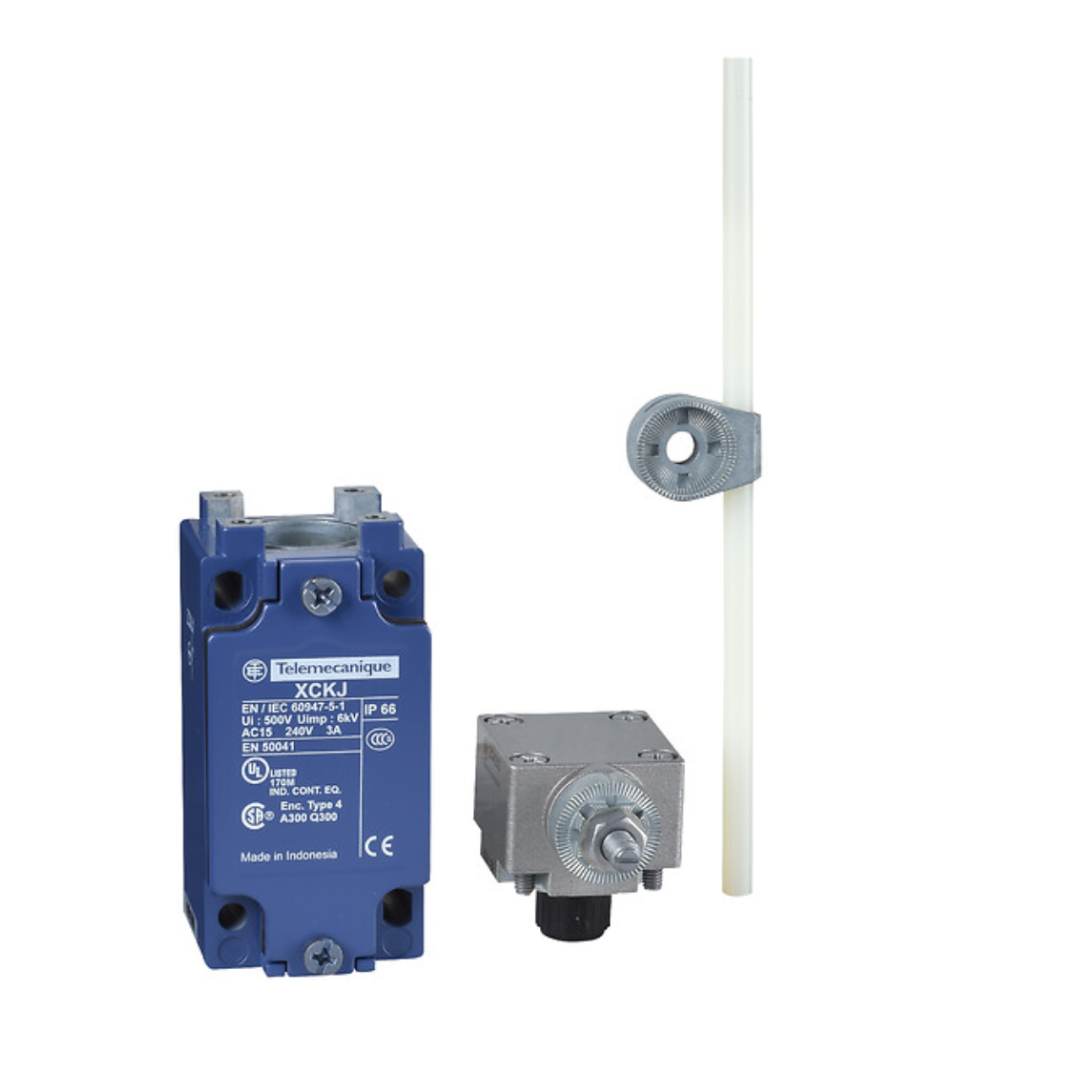

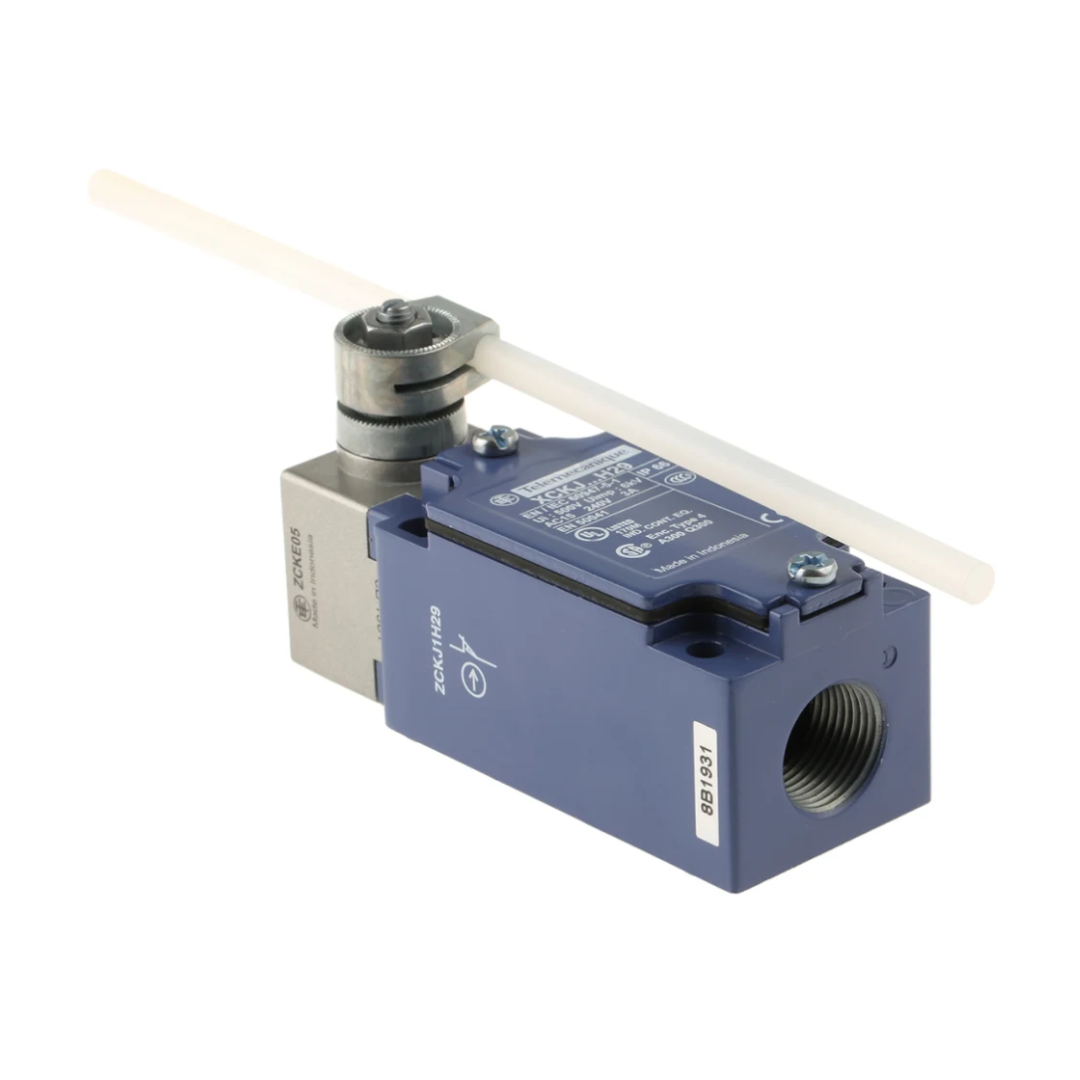

Telemecanique XCKJ Series Lever Limit switch with Thermoplastic Round Rod Lever 6 mm, NC+ NO Snap Output, M20 Electrical Connection, Zinc Alloy Housing, XCKJ10559H29

Part Number : XCKJ10559H29

Brand :
Telemecanique

Telemecanique XCKJ Series Limit Switch with thermoplastic round rod lever, 6 mm diameter, features 1NC+1NO snap action contacts, M20 electrical entry, and a robust zinc alloy housing for reliable industrial automation performance.

View all

KWD 21.350

Quantity
Description
Specifications
Downloads
Related products

Description

The Telemecanique XCKJ10559H29 is a premium limit switch from the XC Standard series, designed for demanding industrial environments. It features a spring return thermoplastic round rod lever (6 mm diameter, 200 mm length) and supports lateral actuation with programmable direction. Built with a sturdy Zamak (zinc alloy) housing and head, it ensures durability even under harsh conditions. The switch integrates 1NC + 1NO snap action contacts with IP66 protection, suitable for a wide range of automation tasks. It supports both AC and DC applications with a high mechanical life of up to 30 million cycles and electrical endurance up to 5 million operations. Ideal for use in conveyor systems, machine safety applications, and automated manufacturing lines.

Key Features

• Robust Construction: Zinc alloy (Zamak) body and head provide durability in harsh industrial environments.

• Snap Action Contacts: Equipped with 1NO + 1NC snap action contacts for fast and reliable switching.

• Thermoplastic Lever: Spring return round rod lever (6 mm, 200 mm length) ensures precise actuation.

• High Protection: IP66-rated for resistance against dust and powerful water jets.

• Long Life Cycle: 30 million mechanical operations and up to 5 million electrical operations ensure longevity.

• Versatile Mounting: Rotary head with programmable actuation direction supports various installation setups.

• Compact & Lightweight: Slim 40 x 77 x 44 mm dimensions and 485g weight for space-saving integration.

• Wide Operating Range: Suitable for -25°C to +70°C ambient temperatures.

• Standards Compliance: Conforms to IEC, UL, CSA, and CENELEC standards for global use.

Applications

• Conveyor Belt Positioning: Detecting object positions or end limits.

• Automated Machinery: Mechanical position feedback in CNC and industrial machines.

• Safety Interlocks: Used as part of safety systems to monitor access or mechanical motion.

• Material Handling Equipment: Reliable actuation under continuous operation.

• Packaging & Processing Lines: Ensures operational precision and cycle consistency.

• Assembly Systems: Feedback for robotic and mechanical arm positioning.

Downloads

Telemecanique Datasheet XCKJ10559H29.pdf

pdf
Download

Telemecanique Sensors Detection Components.pdf

pdf
Download

Specifications

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKJ
Sensor design
Form D conforming to CENELEC EN 50041
Body type
Fixed
Head type
Rotary head
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Metal
Body Material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm
Type of approach
Lateral approach, 1 or 2 programmable direction
Cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By any moving part
Contacts insulation form
Zb
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Positive opening
Without
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TH
Product certifications
CSACCCUL
Standards
CSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1
