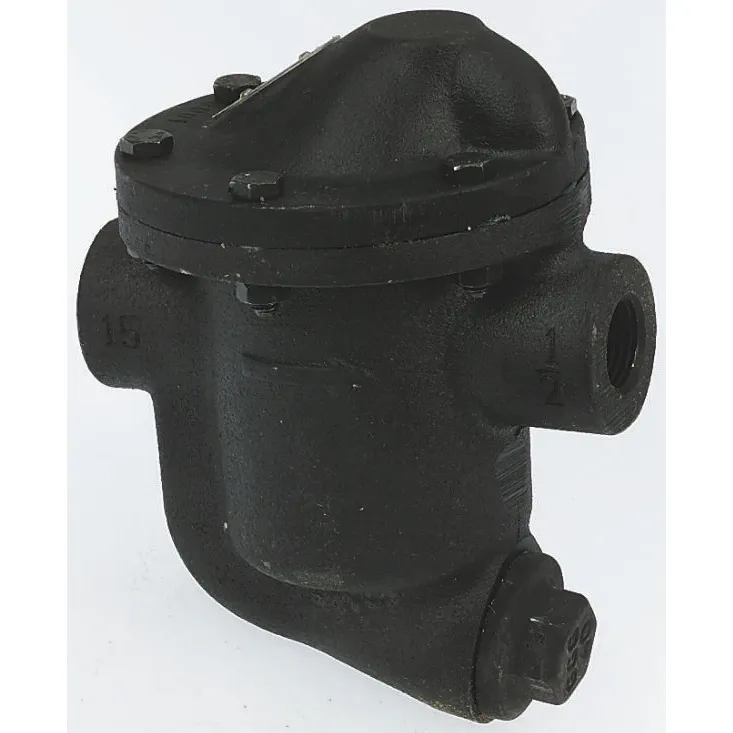

Spirax Sarco Inverted Bucket Steam Trap, made with Cast Iron, HM Series

Part Number : HM Series

Brand :
Spirax Sarco

Horizontal pipework steam traps with optional blowdown valve for debris removal.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Spirax Sarco HM Series Inverted Bucket Steam Traps are crafted from robust cast iron and optimized for horizontal installations. They are available in screwed connections, with an optional blowdown valve They feature options such as integral blowdown valves for debris removal, ensuring enhanced operational efficiency. Available Sizes ½" - HM00, ¾" - HM10 and 1" - HM12 ,Screwed BSP T Rp (ISO 7-1) or NPT. Integral blowdown valve:- The HM Series inverted bucket steam traps can be supplied with integral blowdown valves to remove debris from the inlet strainer. For further details see the relevant Technical Information Sheet. Options availables are External air vents-When required, HM Series inverted bucket steam traps can be supplied with separate thermostatic air vents to provide the efficient and quick release of air. Various models, both balanced pressure and bimetallic, are available. Details for the range up to 30 bar g are shown in the relevant sales brochure. Diffusers-Where steam traps discharge to atmosphere a diffuser should be fitted to reduce the effect of the blast discharge. The diffuser not only reduces the risk of groundwork erosion and condensate splashback, but also reduces sound pressure levels as well. Available models are detailed in the relevant sales brochure.

Features

1. Made from durable cast iron. 2. Designed for horizontal pipework installations. 3. Optional blowdown valve for efficient debris removal. 4. Available in sizes ½”, ¾”, and 1”.

Downloads

HM_Series-TI-S03-02-EN.pdf

pdf
Download

HM_Series-TI-S03-04-EN.pdf

pdf
Download

HM_HM34_Series-IM-S03-11-EN.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Cast Iron body, Stainless Steel bucket
Maximum operating pressure
16 bar g
Maximum operating temperature
300°C
Sizes & Pipe Connections
½”, ¾”, and 1” Screwed BSP or NPT connections
Optional Extras
Blowdown valve, External air vents
