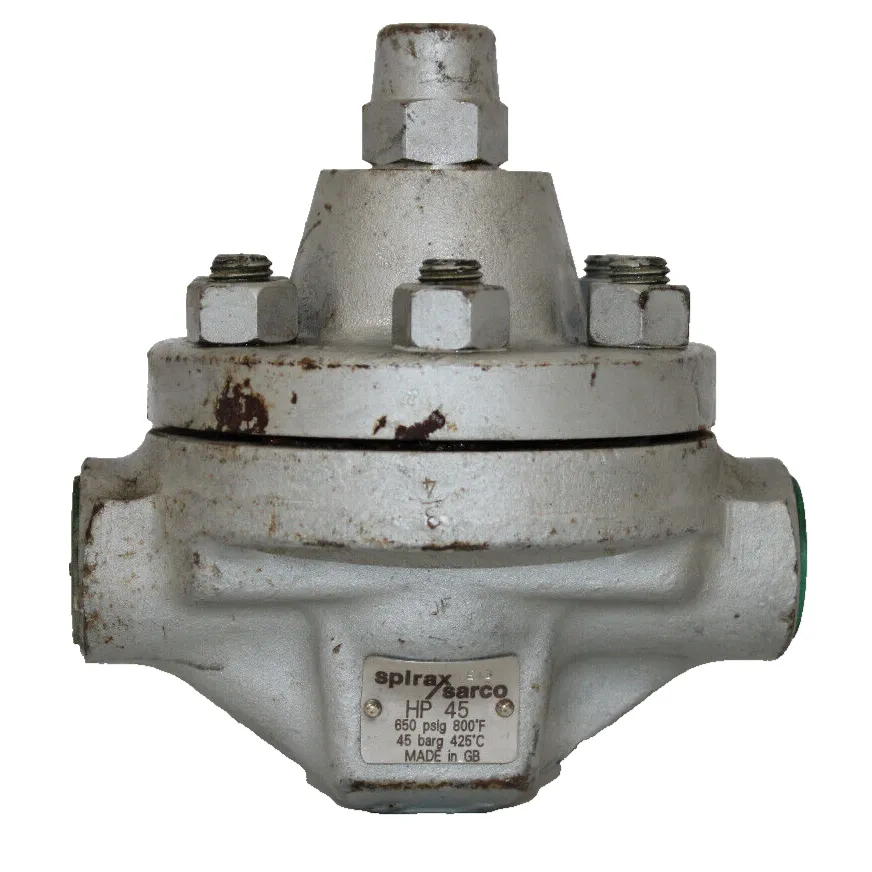

Spirax Sarco Bimetallic Steam Trap, made with Forged Steel, HP45

Part Number : HP45

Brand :
Spirax Sarco

The Spirax Sarco HP45 is a high-pressure bimetallic steam trap designed for efficient condensate drainage.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Spirax Sarco HP45 bimetallic steam trap is made of forged steel, and designed for draining high pressure, high temperature steam lines and processes. This steam trap is specially designed for HP steam and has a reinforced stainless steel insert within the body and can be repaired inline. It operates with no loss of steam, and quickly drains air, non-condensable gases and large quantities of cold water on start-up. Normally open in the event of failure, it has a built-in strainer screen and an external device for adjusting the discharge temperature of the condensate. Available sizes: ½", ¾" and 1" with screwed, BSP/NPT, socket weld ends to ANSI B 16.11 and butt weld ends to ANSI B 16.25, DN15, DN20 and DN25 Flanged PN63, PN100 and ANSI 600.

Features

• Forged steel body for high-pressure applications. • Built-in stainless steel strainer. • Inline repairable design. • Adjustable discharge temperature.

Downloads

HP45-TI-P623-02-EN.pdf

pdf
Download

HP45-IM-P623-03-EN.pdf

pdf
Download

Bimetallic_Safety_Information-IM-GST-23-EN.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Forged Steel ASTM A105N
Sizes & Pipe Connections
½", ¾", 1" with Screwed BSP/NPT, Socket Weld, Butt Weld and Flanged Connections
Pressure Range
Maximum operating pressure 45 bar (PMO).
Temperature Range
Maximum allowable temperature 425 °C (TMA).
Certifications
EN 10204 3.1 Certified
