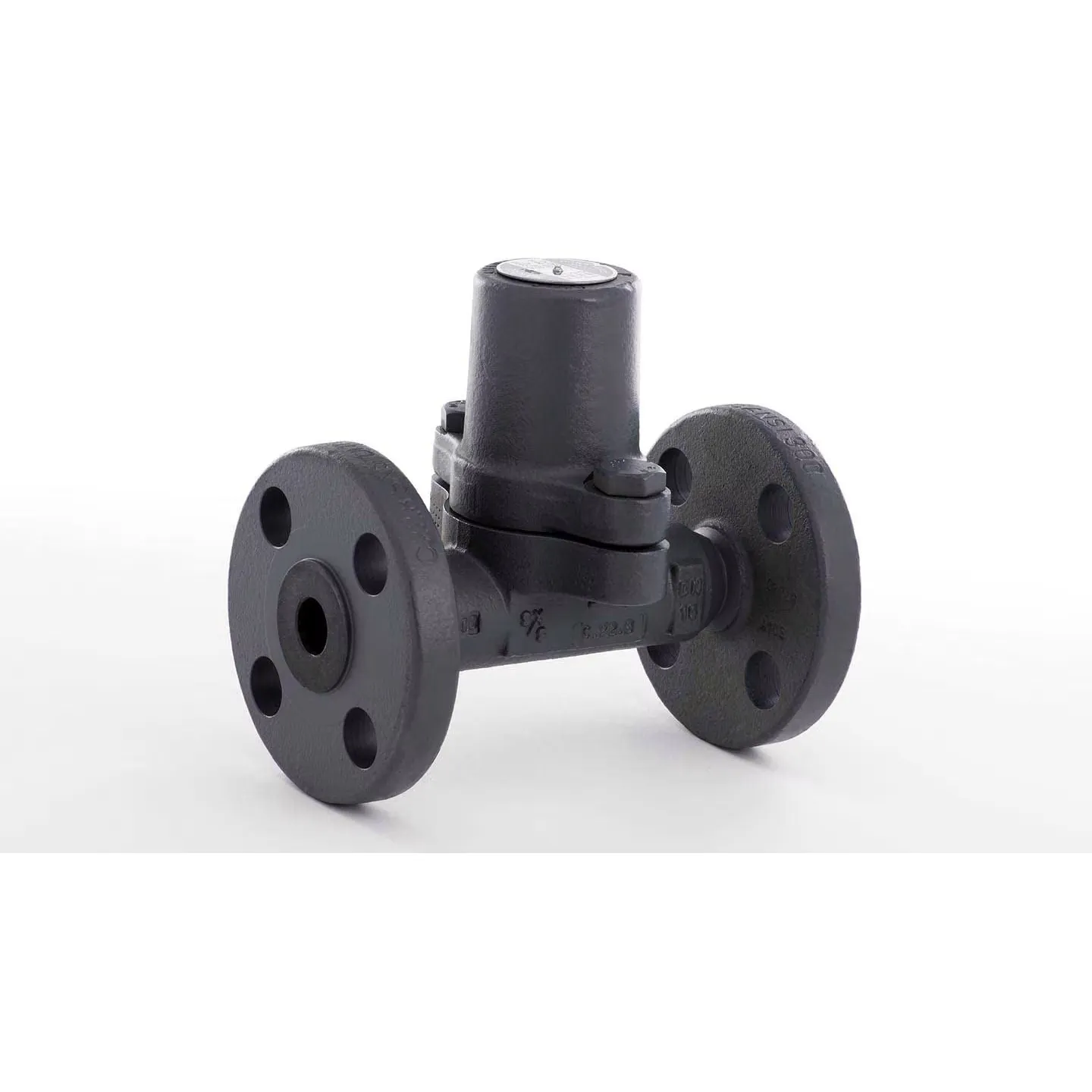

Spirax Sarco Bimetallic Steam Trap, made with Carbon Steel, SMC32

Part Number : SMC32

Brand :
Spirax Sarco

The SMC32 Steam Trap features a carbon steel body and versatile straight connections.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

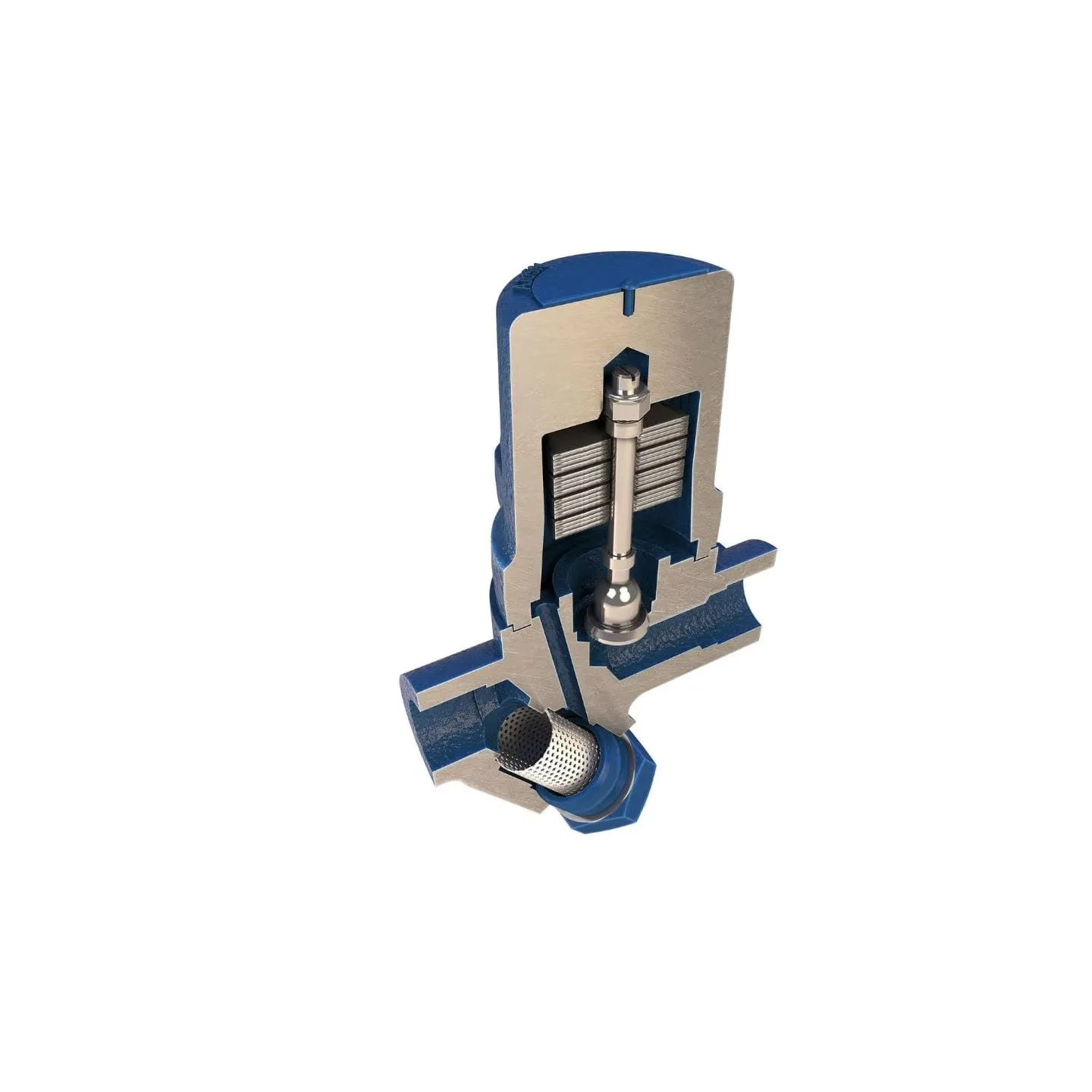

The SMC32 and SMC32Y are carbon steel maintainable bimetallic steam traps with straight connections. The SMC32 has an integralflat strainer screen and the SM32Y an integral, cylindrical Y-type strainer. All pressure bearing components are produced by TÜVapproved suppliers in accordance with AD Merkblatt WO / TRD 100. Available in sizes and connections as ½", ¾", and 1" screwed BSP T Rp (ISO 7-1) or NPT. ½", ¾", and 1" socket weld ends to BS 3799. ½", ¾", and 1" butt weld ends to EN 12 627. DN15, DN20 and DN25 standard flange to EN 1092 PN40, ASME B 16.5 Class 150 and 300, JIS / KS 10K and JIS / KS 20 K.

Features

• Carbon steel body for enhanced durability. • Integral flat strainer screen. • Available in various connection types and sizes.

Downloads

SMC32-TI-P076-10-EN.pdf

pdf
Download

SMC32-IM-P076-09-EN.pdf

pdf
Download

Bimetallic_Safety_Information-IM-GST-23-EN.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Carbon Steel DIN 17243 C22.8
Sizes & Pipe Connections
½", ¾", 1" with Screwed BSP/NPT, Socket Weld, Butt Weld and Flanged Connections
Pressure Range
Maximum operating pressure 32 bar (PMO).
Temperature Range
Maximum allowable temperature 400 °C (TMA).
Certifications
EN 1024 3.1 Certified
