Spirax Sarco Bimetallic Steam Trap, made with Alloy Steel, SM45

Part Number : SM45

Brand :
Spirax Sarco

The SM45 Bimetallic Steam Trap is optimized for medium-pressure steam systems.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

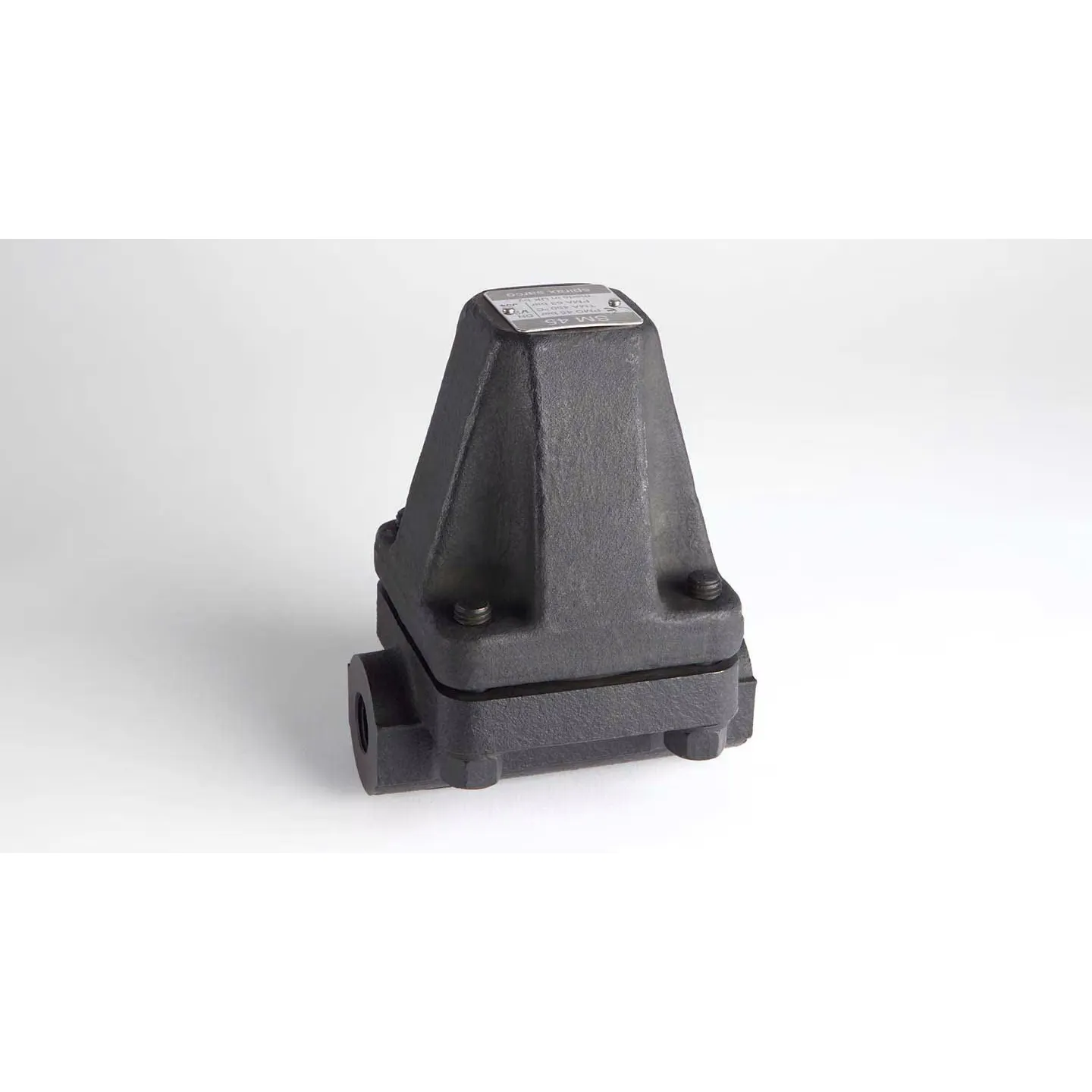

The SM45 is a medium pressure, temperature sensitive, maintainable steam trap. The operating element comprises a stack of bimetal N4discs which control the flow of condensate, air and other incondensible gases at a preset temperature below steam saturation. The body and cover are forged and is available with integral flanges. Available sizes and connections includes ½", ¾" and 1" screwed BSP or NPT. ½", ¾", 1" and 1½" butt weld to suit schedule 80 pipe and socket weld to BS 3799 Class 3000. DN15, DN20, DN25 and DN40 standard flange to : EN1092 PN64, ASME 300 and JIS/KS 30K.

Features

• Temperature-sensitive bimetal discs. • Durable alloy steel body. • Integral flanges for easy installation. • Multiple size and connection options.

Downloads

SM45-TI-P025-01-EN.pdf

pdf
Download

SM45-IM-P025-02-EN.pdf

pdf
Download

Bimetallic_Safety_Information-IM-GST-23-EN.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Alloy Steel DIN 17243 13Cr Mo44
Sizes & Pipe Connections
½", ¾", 1", 1½" with Screwed BSP/NPT, Butt Weld and Flanged Connections
Pressure Range
Maximum operating pressure 45 bar (PMO).
Temperature Range
Maximum allowable temperature 450 °C (TMA).
Certifications
EN 10204 3.1 Certified
