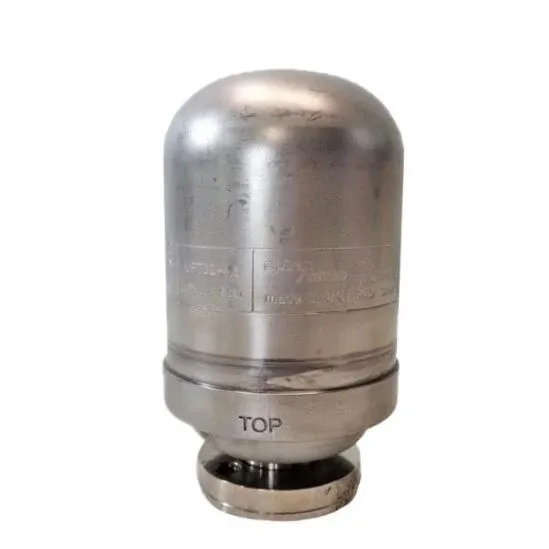

Spirax Sarco Ball Float Steam Trap, Sealed Stainless Steel, UFT32

Part Number : UFT32

Brand :
Spirax Sarco

Maintenance-free sealed stainless steel ball float steam trap for pipeline connectors.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The UFT32 is an austenitic stainless steel maintenance free sealed ball float steam trap with an integral automatic air venting facility. It is designed for differential steam pressures up to 32 bar. When installed with a suitable pipeline connector the UFT32 can easily and simply be removed without breaking into the pipeline, thus speeding up trap replacement with minimal system downtime. Pipeline connectors are available with screwed, socket weld and flanged end connections. Available Pipeline connector options: PC10HP Straight connector ASME 600 (TI-P128-10),PC20 Straight connector with 'Y' type strainer ASME 300 (TI-P128-15),IPC21 Straight connector with 'Y' type strainer and integral Spiratec sensor ASME 300 (TI-P128-15),PC3 _ Straight connector with one piston isolation valve ASME 600 (TI-P128-02),PC4 _ Straight connector with two piston isolation valves ASME 600 (TI-P128-03),STS17.2 Steam trap station (TI-P128-22)

Features

Sealed design, Integral automatic air venting, Stainless steel body, Maintenance-free operation

Downloads

UFT32-TI-P146-05-EN.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless Steel Body
Standards
Complies with ASME Section IX and BS/EN 288.
Application
Steam systems for condensate discharge
Certification
EN 10204 3.1 Certified
Pressure Range
Maximum operating pressure 32 bar (PMO).
Temperature Range
Maximum allowable temperature 400 °C (TMA).
Connections
Pipeline connectors (PC10HP, PC20, IPC21, etc.)
