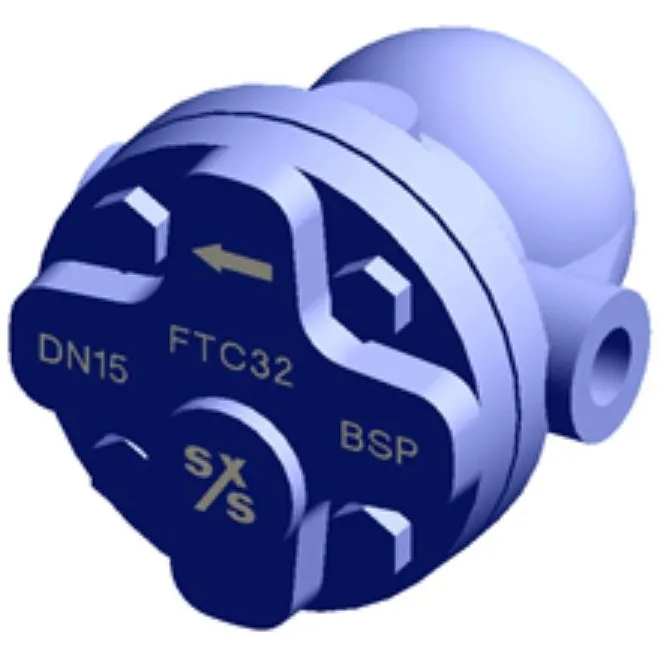

Spirax Sarco Ball Float Steam Trap made with Cabon Steel, FTC32

Part Number : FTC32

Brand :
Spirax Sarco

The FTC32 is a carbon steel ball float steam trap designed for a wide range of fluctuating pressure and load conditions.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The FTC32 is a carbon steel ball float steam trap with integral automatic thermostatic air vent. It is ideal for all process drainage applications as condensate is always removed efficiently and quickly over a wide range of fluctuating pressure and load conditions. Standard connections are horizontal from right to left (R-L) when viewed from the base. Available in sizes DN15 (1/2'') and DN20 (3/4'') with various connection options including screwed BSP, socket weld, and flanged connections to EN 1092 PN40. It ensures efficient condensate removal under varying loads. The FTC32 is also available with horizontal connections having flow from left to right - FTC32 (L-R), and vertical - FTC32V. An optional manually adjustable needle valve can be fitted to all versions which provides a steam lock release feature in addition to the air vent - FTC32-C. An optional internal strainer screen is available - FTC32X. An internal non-return valve is available - FTC32CV

Features

Automatic thermostatic air vent, Supports fluctuating loads, Multiple connection options, Compact and robust design, Sizes DN15-DN20.

Downloads

FTC32-TI-P602-01-EN.pdf

pdf
Download

FTC32-TI-P602-02-EN.pdf

pdf
Download

FTC32-IM-P602-12-EN.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Carbon steel for body and cover, stainless steel internals.
Pressure
Maximum operating pressure 32 bar g
Temperature
Maximum operating temperature 300 °C
Standards
Complies with Pressure Equipment Directive (PED)
Certification
Available with EN 10204 3.1 certification
Applications
Ideal for process drainage applications
Sizes
DN15 (1/2'') and DN20 (3/4'')
