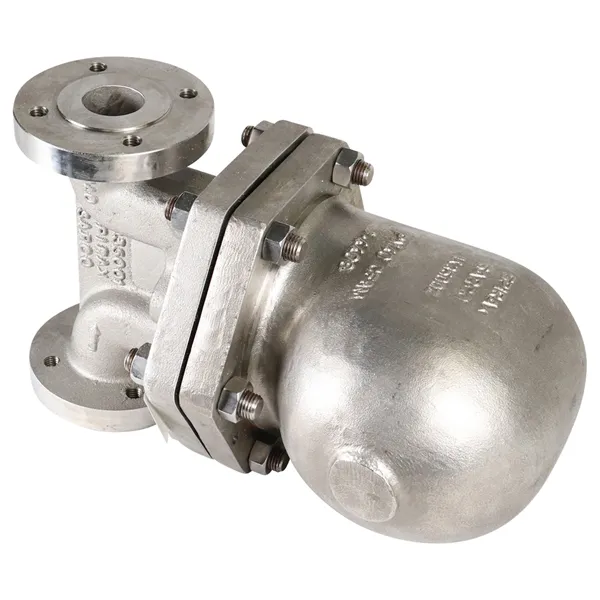

Spirax Sarco Ball Float Steam Trap, Flanged made with Stainless Steel, FT46

Part Number : FT-46

Brand :
Spirax Sarco

The FT46 is an austenitic stainless steel ball float steam trap designed for efficient condensate removal.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The FT46 is an austenitic stainless steel bodied ball float steam trap having stainless steel working internals and automatic air venting facility. The body and cover castings are produced by a TÜV approved foundry. The trap is supplied with integrally flanged connections and can be maintained without disturbing the pipework. Flow direction for the horizontal trap is clearly illustrated above. Available in sizes DN15, DN20, DN25, DN40, and DN50, the FT46 features automatic air venting, optional steam lock release (SLR), and compatibility with EN 1092 PN40 flanges. Pressure ratings range up to 32 bar for high-pressure applications. Standard flanges are EN 1092 PN40 with face-to-face dimensions in accordance with EN 26554 (Series 1). On request - ASME (ANSI) B 16.5 Class 150 and 300 flanges are available with face-to-face dimensions in accordance with EN 26554 (Series 1). A manually adjustable needle valve (designated 'C' on the nomenclature i.e. FT46-C) can be fitted to the trap.

Features

Automatic air venting for improved performance; optional steam lock release (SLR); robust austenitic stainless steel body; available in multiple sizes (DN15 to DN50); EN 1092 PN40 compatibility.

Downloads

FT46-TI-P143-01-EN.pdf

pdf
Download

FT43-IM-S02-30-EN.pdf

pdf
Download

Specifications

Maximum Pressure
32 bar g @ 239°C
Sizes
DN15, DN20, DN25, DN40, DN50
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Austenitic Stainless Steel 316 (1.4408)
Standard Flange
EN 1092 PN40, ASME B16.5 Class 150/300
Certification
EN 10204 3.1, PED compliant
Applications
Steam systems, condensate removal for various industrial processes
