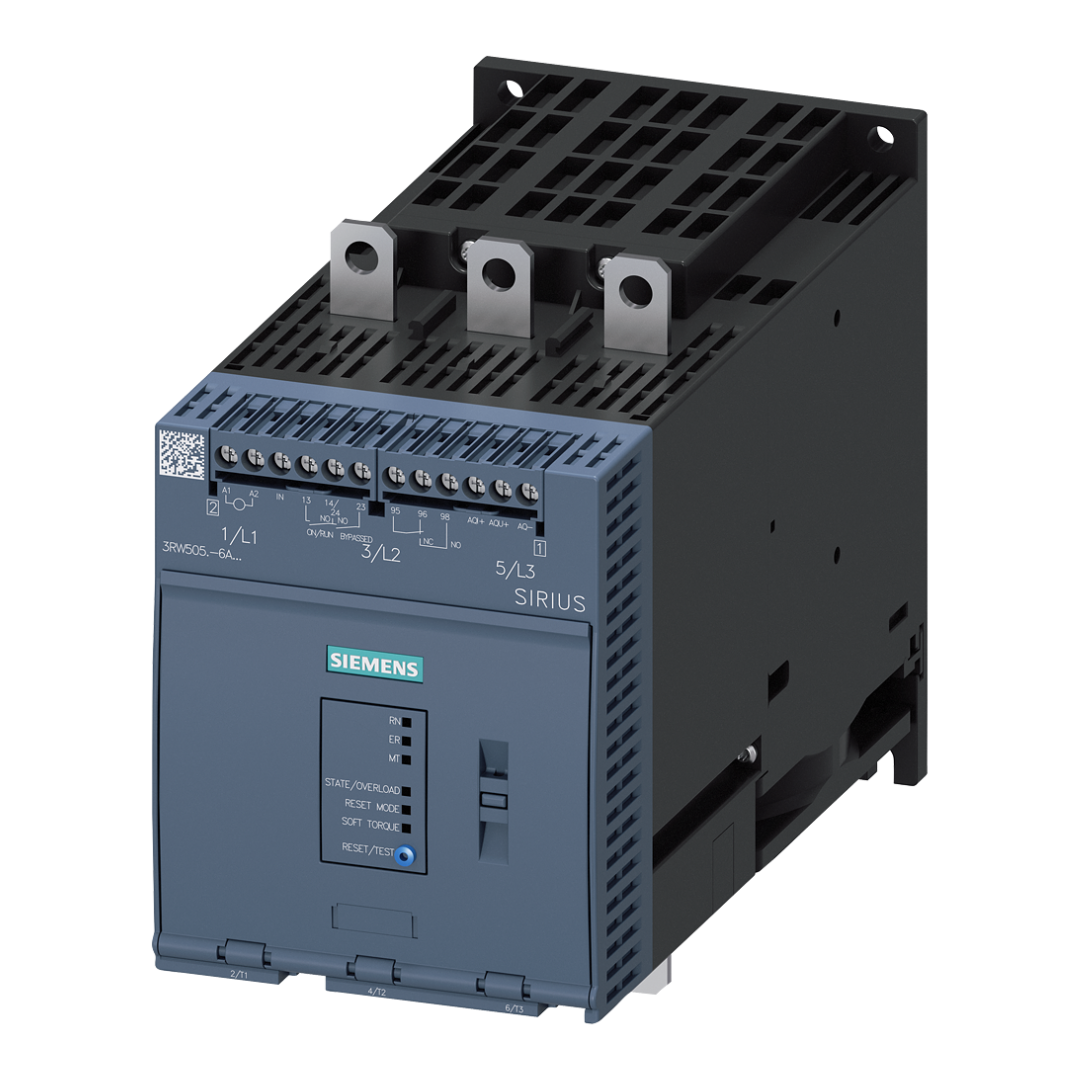

Siemens SIRIUS Soft Starter, 200-600 V, 171 A, 110-250 V, AC, Screw Terminals, Analog output, Chassis Mount, 3RW5056-6AB15

Part Number : 3RW5056-6AB15

Brand :
Siemens

Siemens Soft Starter, 3RW5056-6AB15, is built for reliable industrial control, offering high durability, performance consistency, and integration flexibility in automated systems.

View all

KWD 670.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Siemens Soft Starters, 3RW5056-6AB15, is engineered for superior performance, reliability, and ease of use in demanding environments. This product is ideal for industrial control systems, offering enhanced safety, efficiency, and compatibility with standard electrical infrastructure. Designed to meet global standards, this unit ensures seamless integration and dependable operation in both standard and challenging applications.

Downloads

Datasheet 3RW5056-6AB15.pdf

pdf
Download

Specifications

Product Series
SIRIUS
Designation
Soft Starter
Starting Voltage [%]
30 ... 100 %
Stopping Voltage [%]
50 %; Non-Adjustable
Start-Up Ramp Time Of Soft Starter
0 ... 20 S
Ramp-Down Time Of Soft Starter
0 ... 20 S
Current Limiting Value [%] Adjustable
130 ... 700 %
Accuracy Class According To Iec 61557-12
5 %
Number Of Controlled Phases
2
Trip Class
Class 10A / 10E (Preset) / 20E; Acc. To Iec 60947-4-2
Buffering Time In The Event Of Power Failure
100 Ms
Insulation Voltage Rated Value
600 V
Degree Of Pollution
3, Acc. To Iec 60947-4-2
Impulse Voltage Rated Value
6 Kv
Blocking Voltage Of The Thyristor Maximum
1 800 V
Service Factor
1
Surge Voltage Resistance Rated Value
6 Kv
Shock resistance
15 G / 11 Ms, From 12 G / 11 Ms With Potential Contact Lifting
Vibration resistance
15 Mm To 6 Hz; 2G To 500 Hz
Analog Output
Yes; 4 ... 20 Ma (Default) / 0 ... 10 V (Parameterizable With High Feature Hmi)
Operating Voltage
200 ... 600 V
Relative Negative Tolerance Of The Operating Voltage
-15 %
Relative Positive Tolerance Of The Operating Voltage
10 %
Operating Power For 3-Phase Motors
45 Kw, 90Kw, 110Kw
Type Of Voltage Of The Control Supply Voltage
Ac
Control Supply Voltage At Ac
110 ... 250 V
Control Supply Current In Standby Mode Rated Value
30 Ma
Holding Current In Bypass Operation Rated Value
80 Ma
Locked-Rotor Current At Close Of Bypass Contact Maximum
2.5 A
Inrush Current Peak At Application Of Control Supply Voltage Maximum
12.2 A
Duration Of Inrush Current Peak At Application Of Control Supply Voltage
2.2 Ms
Design Of The Overvoltage Protection
Varistor
Design Of Short-Circuit Protection For Control Circuit
4 A Gg Fuse (Icu=1 Ka), 6 A Quick-Acting Fuse (Icu=1 Ka), C1 Miniature Circuit Breaker (Icu= 600 A), C6 Miniature Circuit Breaker (Icu= 300 A); Is Not Part Of Scope Of Supply
Mounting position
With Vertical Mounting Surface +/-90° Rotatable, With Vertical Mounting Surface +/- 22.5° Tiltable To The Front And Back
Fastening Method
Screw Fixing
Operational Temperature
-40 ... +80 °C
Protection Class Ip On The Front According To Iec 60529
Ip00; Ip20 With Cover
Touch Protection On The Front According To Iec 60529
Finger-Safe, For Vertical Contact From The Front With Cover
Certifications
ATEX, IECEx
