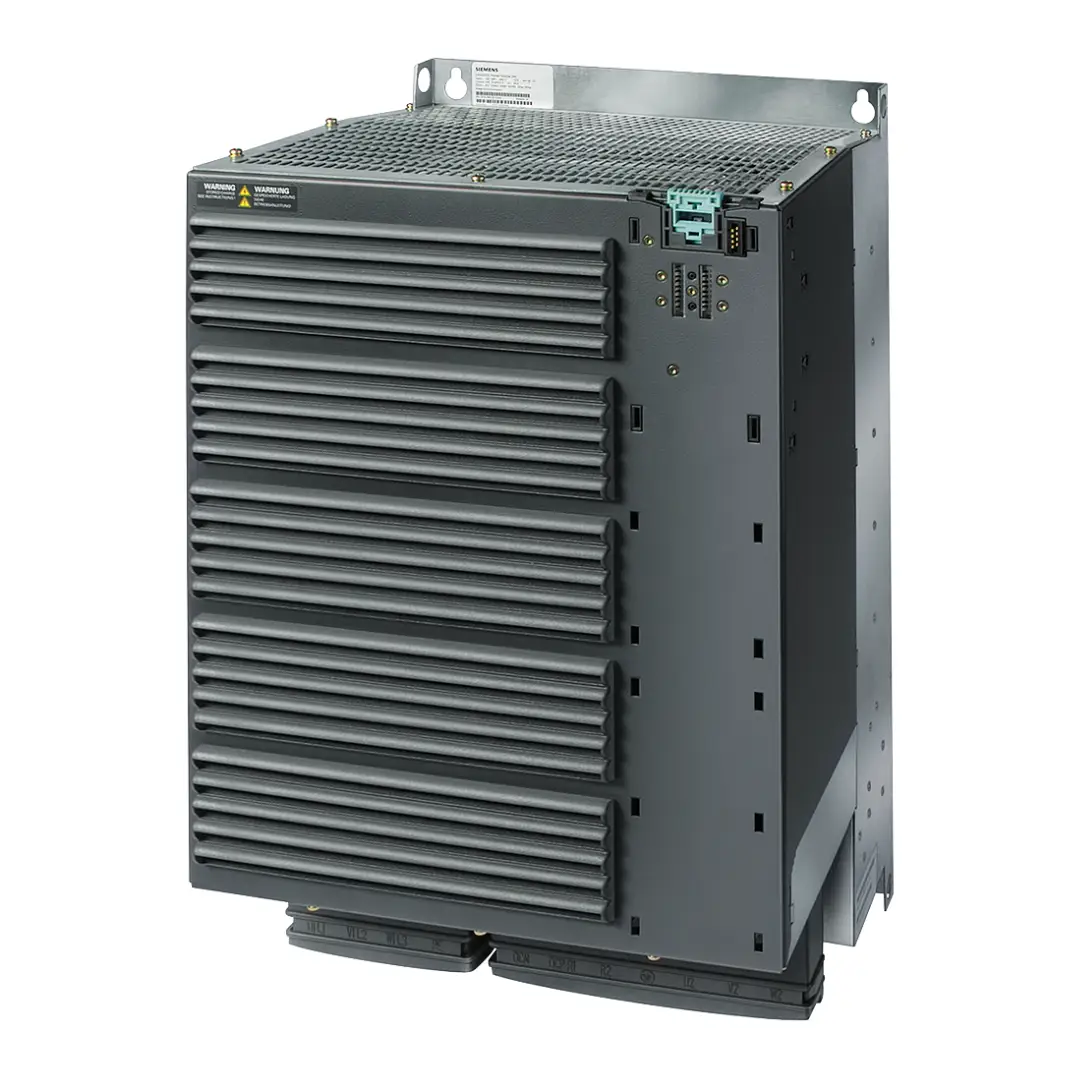

Siemens SINAMICS PM250, Power Module, 55.00 kW, 45.00 kW, 3 AC 380 ... 480 V ±10 %, With Integrated Class A EMC Filter, 6SL3225-0BE34-5AA0

Part Number : 6SL3225-0BE34-5AA0

Brand :
Siemens

SINAMICS PM250 power module for modular SINAMICS drive systems, with rated power according to Rated power (LO) 55.00 kW 75.00 hp / Rated power (HO) 45.00 kW 60.00 hp and 3 AC 380 ... 480 V ±10 % line supply.

View all

KWD 1,740.250

Quantity
Description
Specifications
Downloads
Related products

Description

The Siemens SINAMICS PM250 Power module 6SL3225-0BE34-5AA0 is a power module for SINAMICS drive systems. It operates on 3 AC 380 ... 480 V ±10 % and provides rated power values of Rated power (LO) 55.00 kW 75.00 hp and Rated power (HO) 45.00 kW 60.00 hp (LO/HO). It forms the power section for variable-speed control of three-phase motors in machine and plant automation. The module offers integrated diagnostics, compact construction for control panel mounting and high energy efficiency.

Key Features

• Product family is SINAMICS PM250. • Product type is Power module. • Line voltage 380 ... 480 V ±10 %. • Rated power (LO) 55.00 kW 75.00 hp. • Rated power (HO) 45.00 kW 60.00 hp. • Filter class (integrated) Class A. • Degree of protection IP20 / UL open type. • Frame size FSF.

Typical Applications

• Variable-speed control of pumps, fans and compressors. • General machine and plant automation with three-phase motors. • Energy-efficient drive solutions in industrial applications. • Retrofit and modernization of existing drive systems.

Downloads

6SL3225-0BE34-5AA0_datasheet_en.pdf

pdf
Download

SINAMICS G120 Converters PM250 Power Module.pdf

pdf
Download

Specifications

Product family
SINAMICS PM250
Product Type
Power module
Line voltage
380 ... 480 V ±10 %
Line frequency
47 ... 63 Hz
Rated power (LO)
55.00 kW 75.00 hp
Rated power (HO)
45.00 kW 60.00 hp
Rated current (LO)
102.00 A
Rated current (HO)
84.00 A
Filter class (integrated)
Class A
Degree of Protection
IP20 / UL open type
Frame size
FSF
