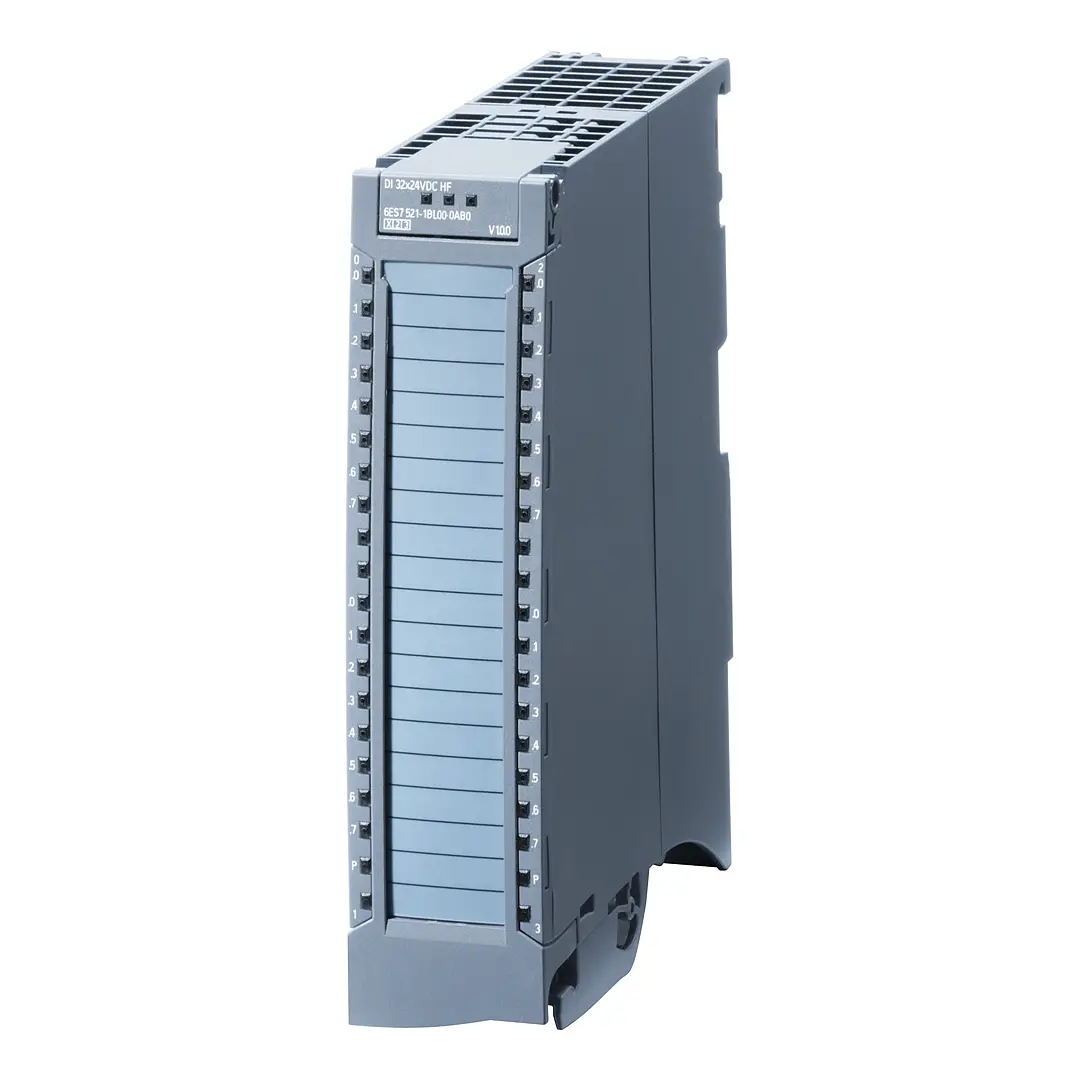

Siemens SIMATIC S7-1500 Digital Input Module DI 32x24VDC HF, 32 Digital Inputs, 6ES7521-1BL00-0AB0

Part Number : 6ES7521-1BL00-0AB0

Brand :
Siemens

SIMATIC S7-1500 digital input module with 32 digital inputs for 24 V DC signals. Suitable for acquiring standard 24 V DC field signals in SIMATIC S7-1500 systems.

View all

KWD 99.250

Quantity
Description
Specifications
Downloads
Related products

Description

Siemens SIMATIC S7-1500 digital input module DI 32x24VDC HF is used for acquiring 32 digital inputs at 24 V DC levels from field sensors such as limit switches, pushbuttons and proximity switches. The module offers parameterizable input delays for noise suppression, diagnostic functions for channel and group faults, and status LEDs for each channel group. It is designed for space-saving installation in SIMATIC S7-1500 automation systems and connects directly to the backplane bus.

Key features

• 32 digital inputs for 24 V DC digital input signals (DI 32x24VDC HF). • Parameterizable input delay for suppression of contact bounce and interference. • Integrated channel and group diagnostics with status LEDs. • Compact module width for high channel density in the control cabinet. • Direct connection to SIMATIC S7-1500 backplane bus – no additional wiring module required.

Typical applications

• Machine and plant automation with SIMATIC S7-1500 controllers. • Packaging, material handling and production lines requiring high digital I/O density. • Retrofit and expansion of existing S7-1500 panels with additional digital I/O. • Acquisition of limit switches, proximity sensors and operator pushbuttons.

Downloads

6ES75211BL000AB0_datasheet_en.pdf

pdf
Download

Product overview for SIMATIC S7-1500_01.pdf

pdf
Download

Specifications

Series
SIMATIC S7-1500
Module type
Digital input module
Module designation
DI 32x24VDC HF
Number of Channels
32 digital inputs
Rated control voltage
24 V DC
Input signal type
24 V DC digital inputs for standard sensors and switches
Diagnostics
Channel and group diagnostics with status LEDs
