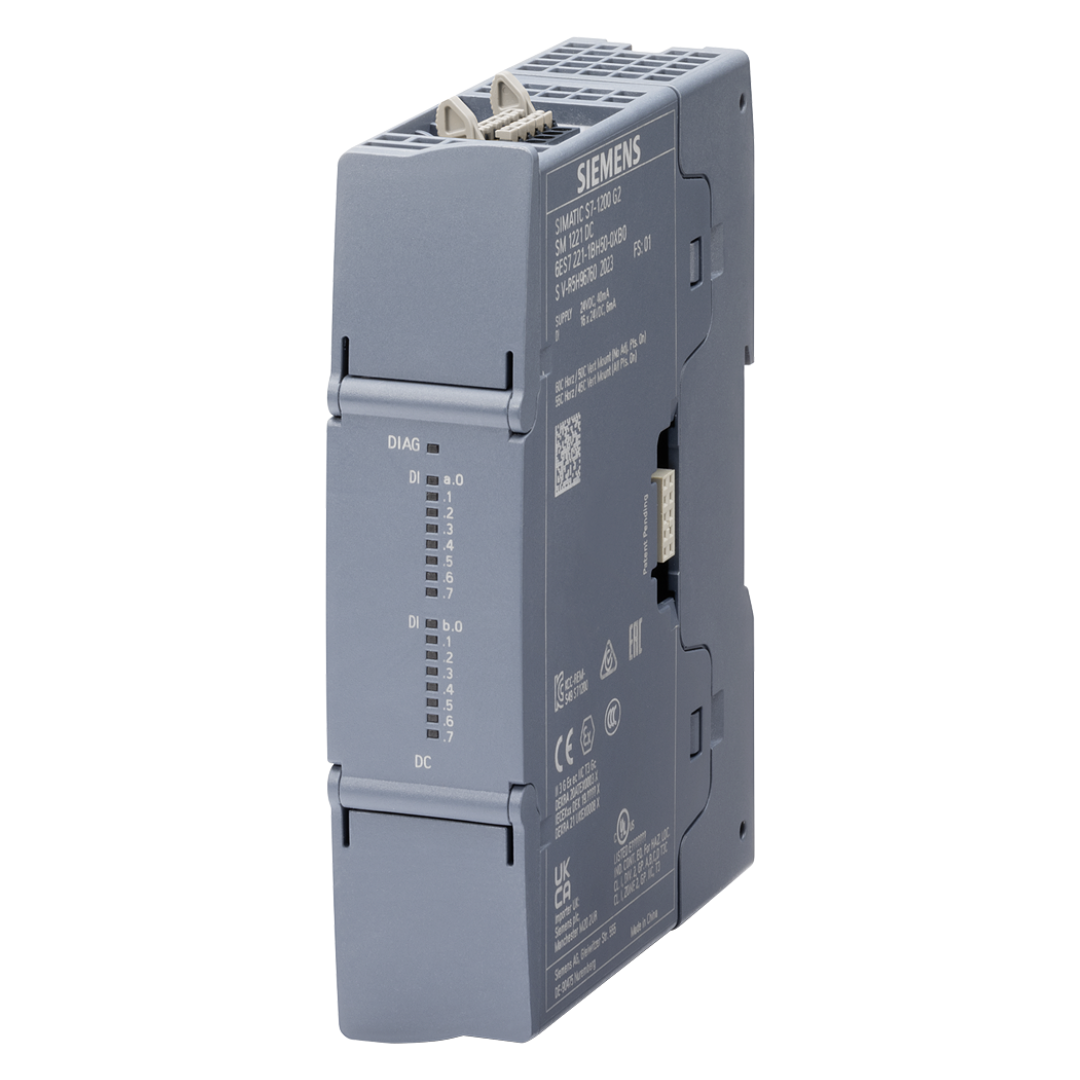

Siemens SIMATIC S7-1200, SM 1223 Digital I/O Module, 8 Digital Inputs & 8 Relay Outputs (2 A, 5–250 V AC/DC), 6ES7223-5PH50-0XB0

Part Number : 6ES7223-5PH50-0XB0

Brand :
Siemens

The SIMATIC S7-1200 G2 SM 1223 digital I/O module combines 8 × 24 V DC inputs with 8 × 2 A relay outputs for flexible AC/DC load switching.

View all

KWD 48.250

Quantity
Description
Specifications
Downloads
Related products

Description

Siemens SM 1223 DI 8x24 V DC / DQ 8x relay module combines 8 digital inputs with 8 galvanically isolated relay outputs for SIMATIC S7-1200 G2 controllers. The inputs accept 24 V DC sink/source signals, while the relay outputs switch up to 2 A per channel for AC or DC loads such as lamps, contactors and valves. The module operates from a 24 V DC supply (20.4…28.8 V DC range) and provides channel status LEDs, diagnostics and IP20 protection in a 30 × 125 × 100 mm housing.

Key Features

• 8 × digital inputs (24 V DC) plus 8 × relay outputs in one module • Digital inputs with sink/source wiring and parameterizable filtering • Relay outputs rated up to 2 A for 5…30 V DC or 5…250 V AC loads • Rated supply voltage 24 V DC (20.4…28.8 V DC permissible range) • Galvanic isolation between relay contacts and backplane bus • Typical power loss about 4.8 W with integrated status LEDs • IP20 plastic housing, approx. 30 × 125 × 100 mm for S7-1200 G2 systems

Downloads

6ES72235PH500XB0_datasheet_en.pdf

pdf
Download

Product overview for SIMATIC S7-1200-01.pdf

pdf
Download

Specifications

Product Type
SM 1223 digital I/O module, DI 8x24 V DC / DQ 8x relay
Number of digital inputs
8 digital inputs 24 V DC
Number of relay outputs
8 relay outputs in 2 groups
Rated supply voltage
24 V DC (permissible range 20.4…28.8 V DC)
Output voltage range
5…30 V DC or 5…250 V AC
Output current per channel
2 A resistive load per relay contact
Typical power loss
Approx. 4.8 W module power dissipation
Module dimensions
Approx. 30 × 125 × 100 mm, IP20 protection
