Siemens SIMATIC S7-1200 Series, SM 1222 Digital Output Module, 16 Relay outputs (2A), 24 V DC Supply, 6ES7222-5HH50-0XB0

Part Number : 6ES7222-5HH50-0XB0

Brand :
Siemens

The SIMATIC S7‑1200 G2 SM 1222 digital output module offers sixteen relay outputs rated at 2 A for both AC and DC loads. It expands S7‑1200 CPUs by providing high‑reliability switching for motors, solenoids and lamps.

View all

KWD 69.500

Quantity
Description
Specifications
Downloads
Related products

Description

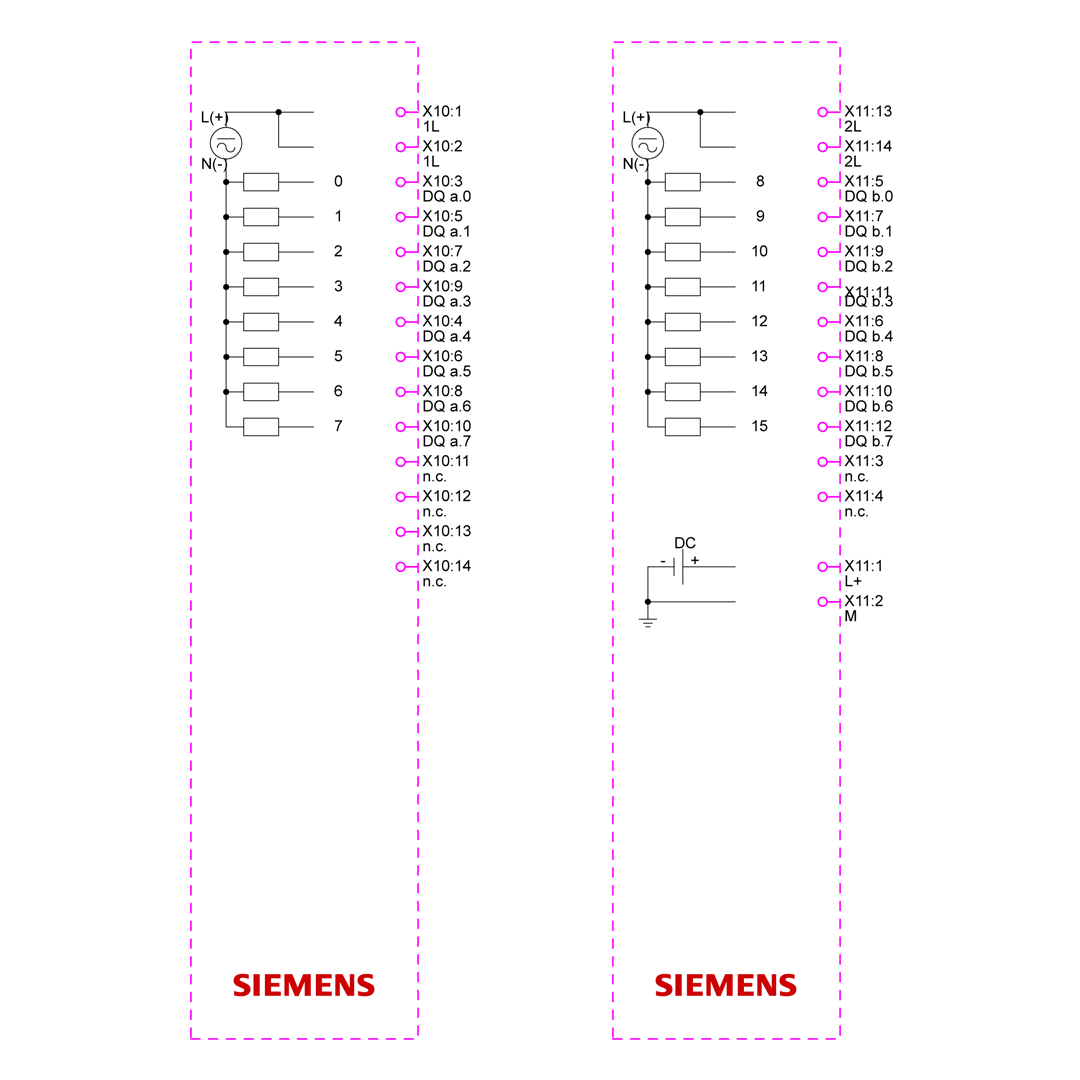

Siemens SM 1222 DQ16 module provides 16 relay‑type digital outputs organized in two groups of eight. It operates from a 24 V DC backplane supply and draws approximately 115 mA of current. Each output can switch resistive loads up to 2 A or lamp loads up to 30 W DC/200 W AC at voltages from 5 V DC to 30 V DC or 5 V AC to 250 V AC. Output delay is approximately 10 ms, and mechanical relay life is rated at 10 million cycles. There is no integrated short‑circuit protection; external fusing is recommended. The module supports cable lengths up to 500 m (shielded) or 150 m (unshielded). Diagnostics and supply voltage monitoring are integrated. Galvanic isolation between the relay outputs and the backplane bus withstands 1 500 V AC.

Key Features

• 16 relay outputs rated 2 A, grouped in two sets of eight

• Handles DC loads 5–30 V and AC loads 5–250 V with 30 W/200 W lamp rating

• Output delay 10 ms, relay life 10 million cycles

• 24 V DC backplane supply, typical current 115 mA and power loss 4.2 W

• No built  in short-circuit protection external fusing required

• Integrated diagnostics and supply voltage monitoring

• Galvanic isolation between outputs and backplane, 1 500 V AC test voltage

• Supports up to 500 m shielded or 150 m unshielded cable lengths

• Compact 30 mm?wide module with IP20 protection, operating -20 °C…60 °C

Downloads

Siemens_datasheet_6ES7222-5HH50-0XB0_1.pdf

pdf
Download

Brochure SIMATIC S7-1200 Basic Controllers.pdf

pdf
Download

Product overview - SIMATIC S71200.pdf

pdf
Download

SIMATIC S7-1200 G2.pdf

pdf
Download

Specifications

Product Type
SM 1222 digital output module (DQ16 relay)
Number of outputs
16 relay outputs in 2 groups
Output Type
Relay, normally open
Rated supply voltage
24 V DC
Backplane current
115 mA
Power loss
Typical 4.2 W
Output voltage range
5 V DC…30 V DC or 5 V AC…250 V AC
Output current per channel
2 A (resistive)
Lamp load
30 W DC / 200 W AC
Total current per group
16 A at 50 °C; 8 A at 60 °C
Switching delay
10 ms closing/opening
Relay life (mechanical)
10 million cycles
Short‑circuit protection
External fusing required
Diagnostics
Integrated supply voltage monitoring and channel diagnostics
Galvanic isolation
Outputs/backplane bus isolated; test voltage 1 500 V AC
Cable length (shielded)
Up to 500 m
Cable length (unshielded)
Up to 150 m
Protection Class
IP20
Ambient temperature
−20 °C…+60 °C
Relative Humidity
95 % at 25 °C without condensation

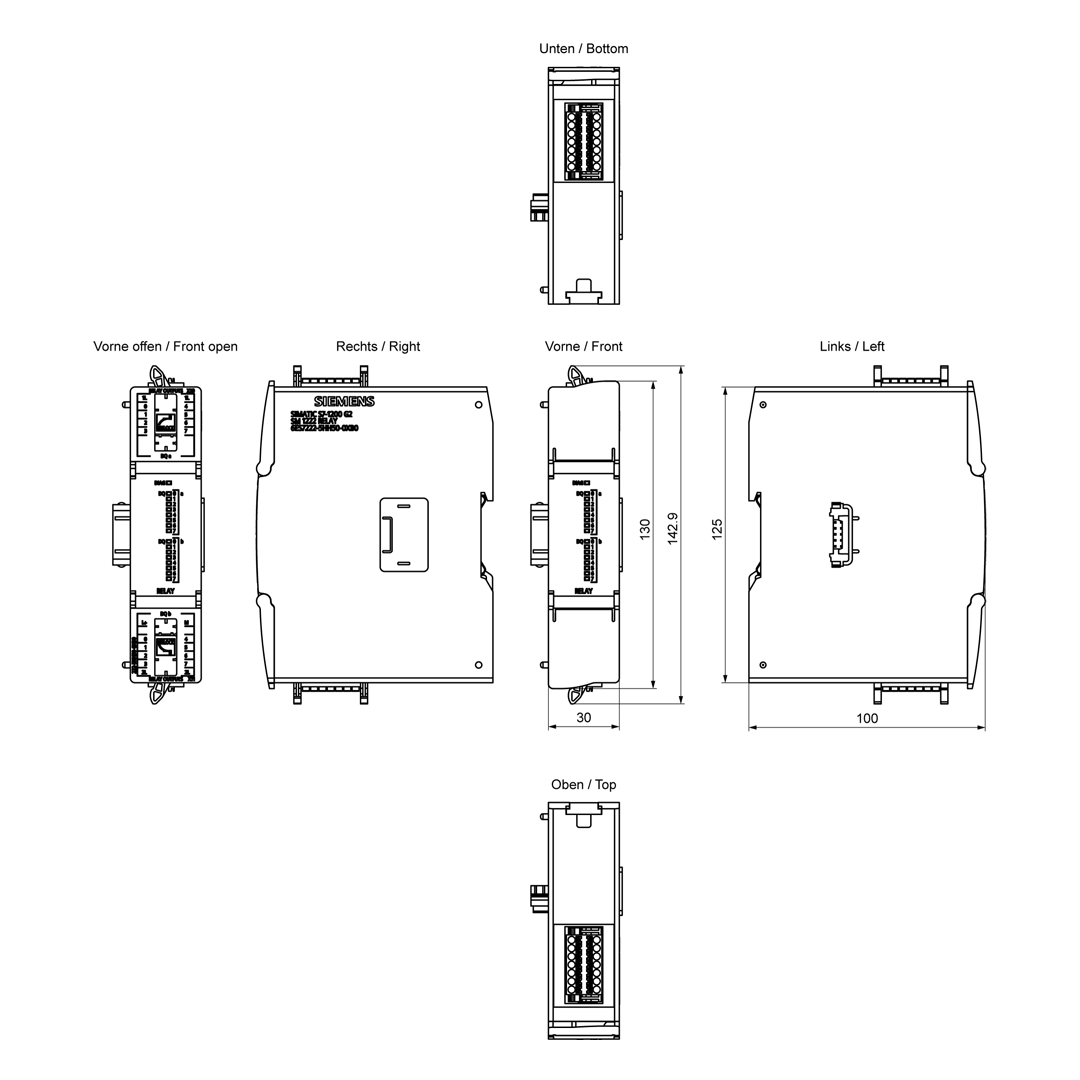

Width
30 mm
Height
125 mm
Depth
100 mm
Weight
Approx. 217 g
Approvals
CE, cULus, EAC
