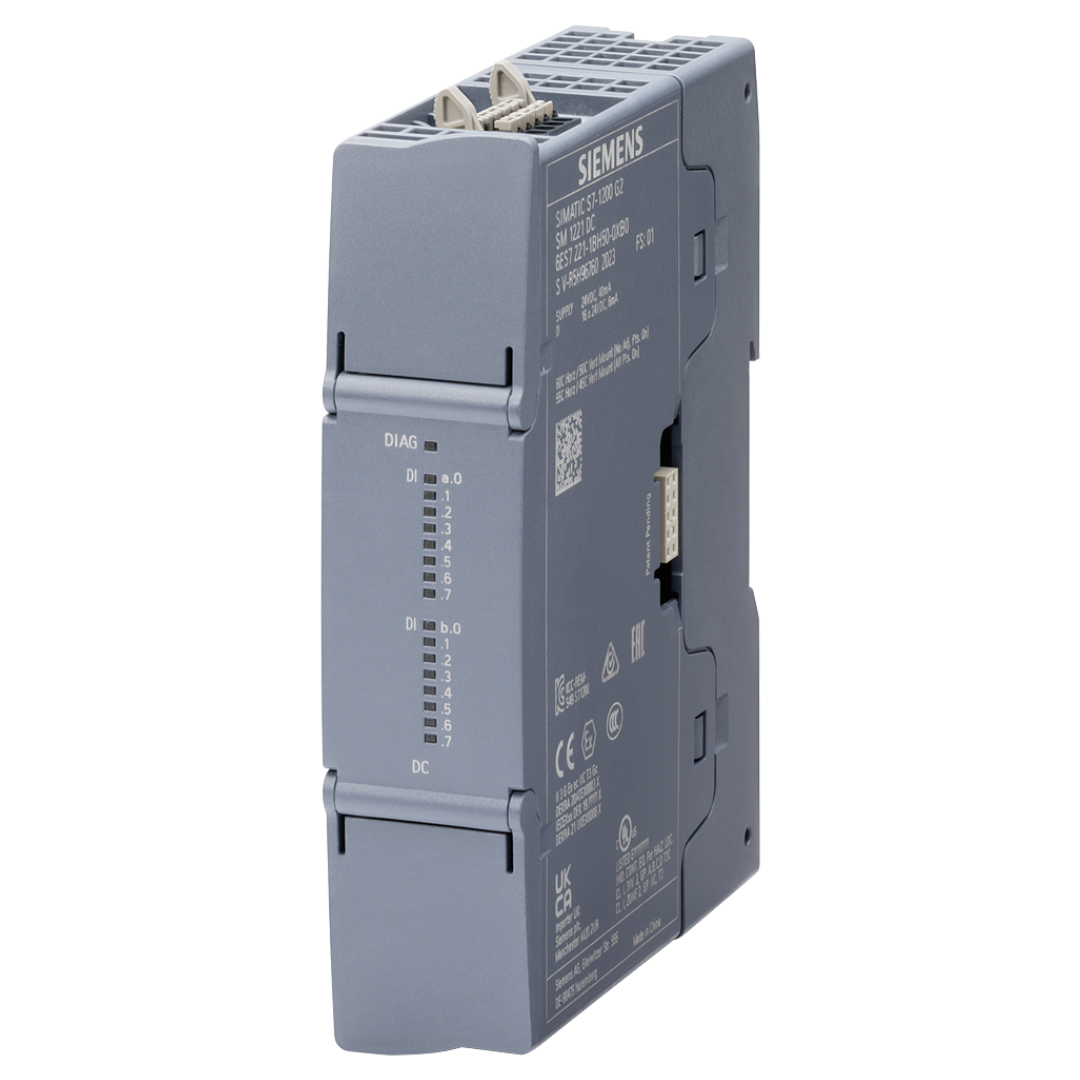

Siemens SIMATIC S7-1200 Series, SM 1221 Digital Input Module, 16 Inputs (24 V DC), IP20 Protection, 6ES7221-1BH50-0XB0

Part Number : 6ES7221-1BH50-0XB0

Brand :
Siemens

The SIMATIC S7‑1200 G2 SM 1221 digital input module offers sixteen 24 V DC digital inputs in a compact 30 mm‑wide housing. It extends S7‑1200 controllers with reliable and flexible input capabilities and delivers robust performance in industrial environments.

View all

KWD 69.500

Quantity
Description
Specifications
Downloads
Related products

Description

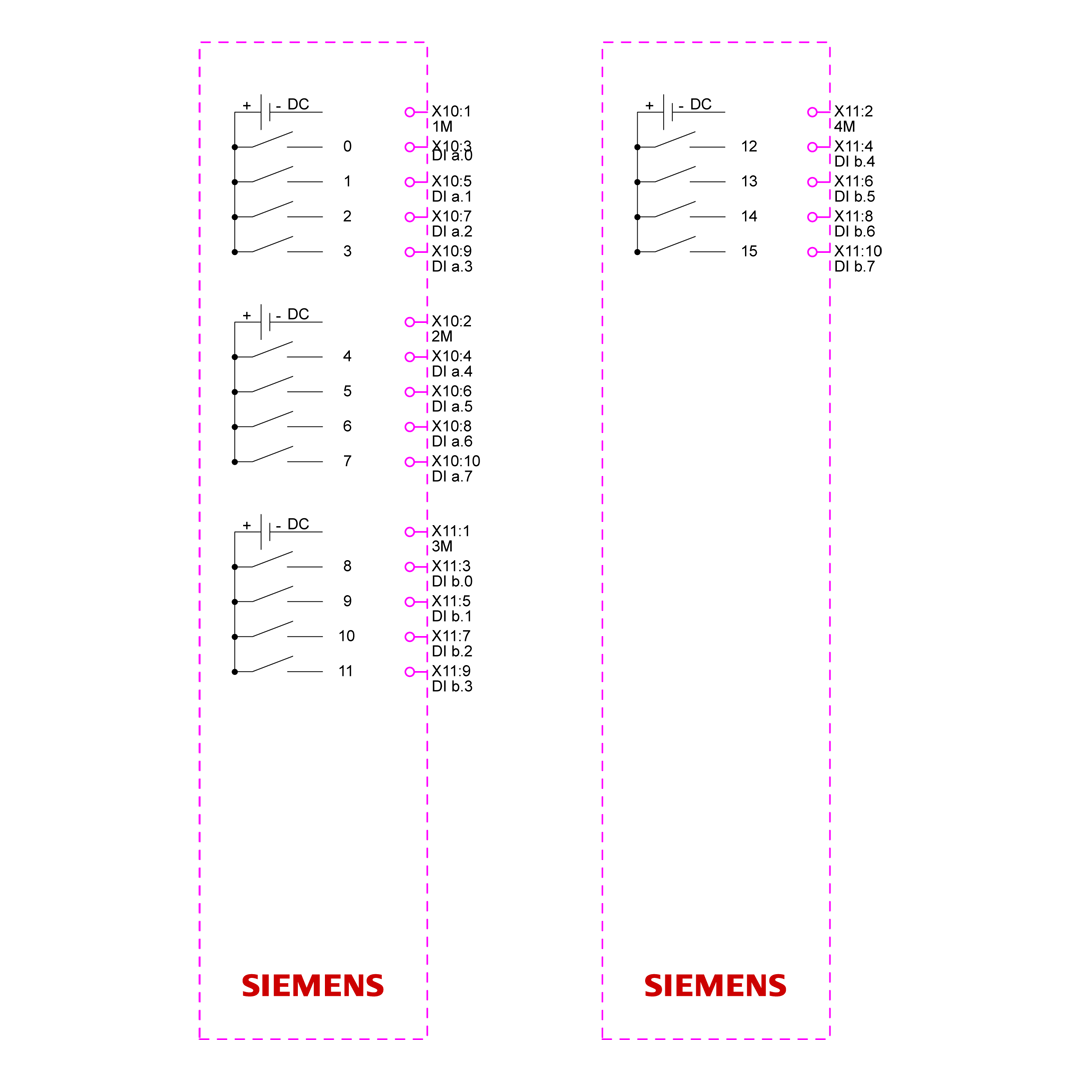

Siemens SM 1221 DI16 module provides 16 digital inputs rated at 24 V DC grouped in fours for flexible wiring. Each channel features an IEC 61131‑type 1 input characteristic with a signal “0” threshold of ≤ 5 V or 0.5 mA and a signal “1” threshold of ≥ 15 V at 2.5 mA. Input delay times are parameterizable between 0.2 ms and 12.8 ms in groups of four. Shielded and unshielded cable lengths up to 500 m and 300 m respectively are supported. Diagnostic LEDs provide channel status and maintenance information. Channels and backplane bus are galvanically isolated with a test voltage of 707 V DC. The IP20‑rated module operates from −20 °C to +60 °C.

Key Features

• 16 × digital inputs (24 V DC) grouped in fours

• Parameterizable input delay between 0.2 ms and 12.8 ms

• IEC 61131 type 1 input characteristic, signal 0/1 thresholds 5 V / 15 V

• Supports 500 m shielded or 300 m unshielded cable lengths

• Channel-wise diagnostics and status LEDs

• Galvanic isolation between channels and backplane bus

• Compact 30 mm width with IP20 protection, operating range -20 °C…60 °C

Downloads

Siemens_datasheet_6ES7221-1BH50-0XB0_1.pdf

pdf
Download

Brochure SIMATIC S7-1200 Basic Controllers.pdf

pdf
Download

Product overview - SIMATIC S71200.pdf

pdf
Download

SIMATIC S7-1200 G2.pdf

pdf
Download

Specifications

Product Type
SM 1221 digital input module (DI16)
Number of Inputs
16 digital inputs grouped in 4 channels
Input Type
Sink/source, IEC 61131 type 1
Rated input voltage
24 V DC
Signal “0” threshold
≤ 5 V or ≤ 0.5 mA
Signal “1” threshold
≥ 15 V at 2.5 mA
Input delay
0.2 ms to 12.8 ms, parameterizable
Cable length (shielded)
Up to 500 m
Cable length (unshielded)
Up to 300 m
Diagnostics
Channel‑by‑channel status and maintenance LEDs
Diagnostic alarm
No; diagnostics provided by LEDs
Galvanic isolation
Between groups and backplane; test voltage 707 V DC
Backplane bus current
5 V DC, max. 90 mA
Power Supply
From CPU backplane bus
Protection Class
IP20
Operating Temperature
−20 °C to +60 °C (horizontal)
Relative Humidity
Up to 95 % at 25 °C without condensation

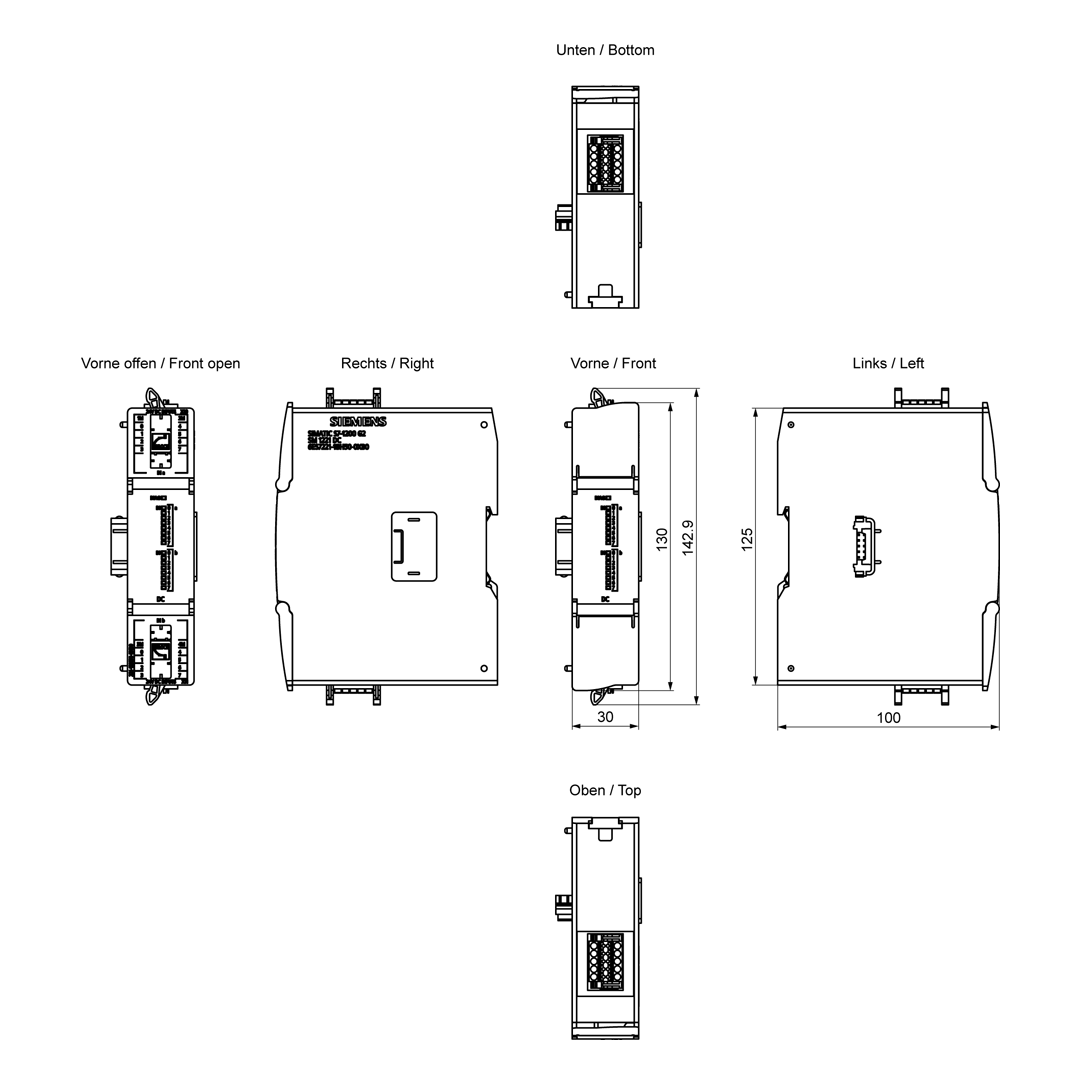

Width
30 mm
Height
125 mm
Depth
100 mm
Weight
Approx. 166 g
Installation
DIN‑rail mounting
Approvals
CE, cULus
Warranty
12 months (typical)
