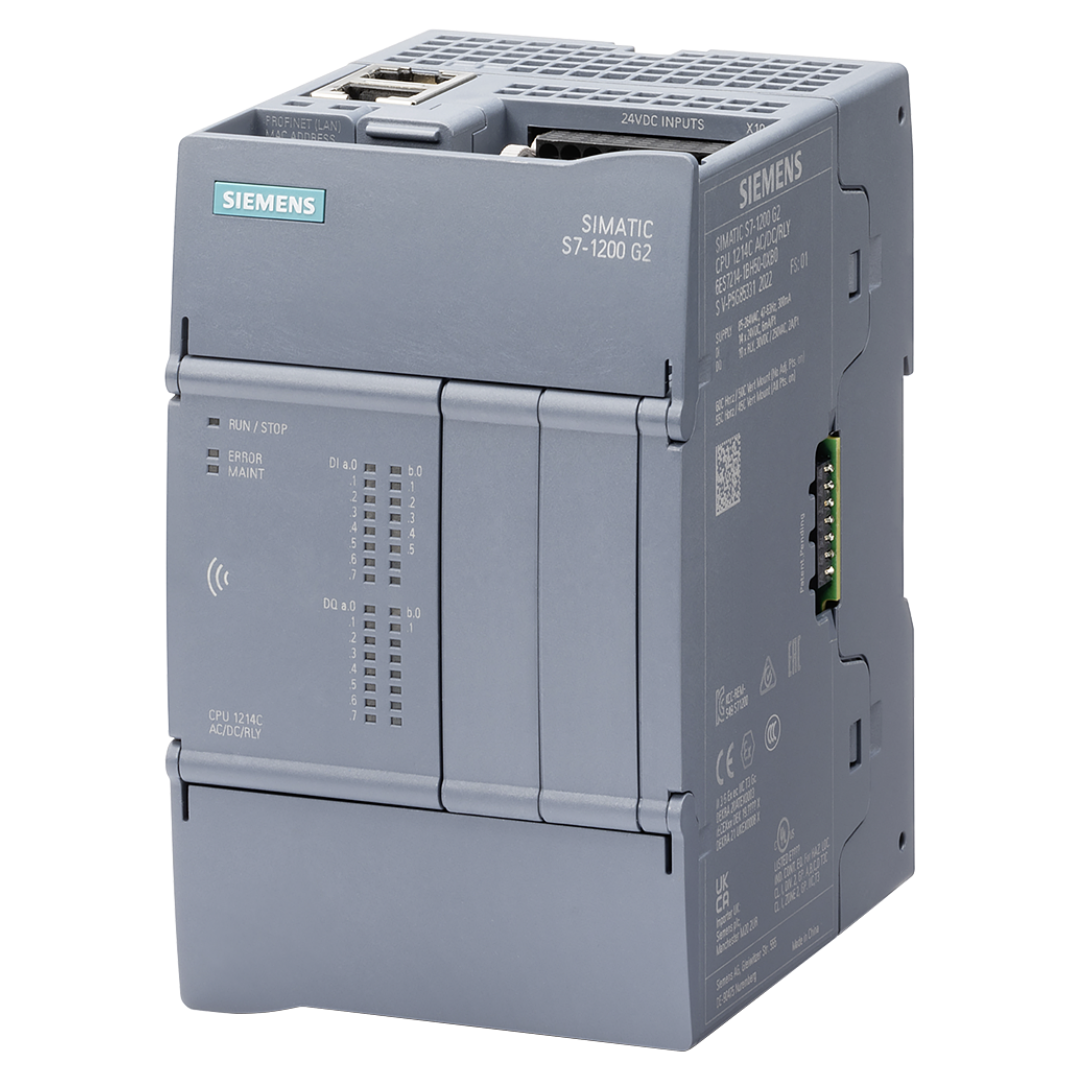

Siemens SIMATIC S7‑1200 Series, CPU 1214C DC/DC/DC Controller, 14 Digital Inputs & 10 Transistor Outputs, 250 kB Program Memory, 6ES7214-1AH50-0XB0

Part Number : 6ES7214-1AH50-0XB0

Brand :
Siemens

DC‑powered CPU 1214C with fourteen digital inputs and ten transistor outputs for fast switching and motion control. Offers expanded memory and dual‑port PROFINET connectivity for advanced automation.

View all

KWD 118.000

Quantity
Description
Specifications
Downloads
Related products

Description

Siemens CPU 1214C DC/DC/DC runs from a 24 V DC supply (20.4–28.8 V) and draws about 145 mA for the CPU alone; consumption can rise to 1 000 mA with all expansion modules and inrush current up to 12 A. Power loss is approximately 3.5 W. The controller provides 250 kB program memory, 750 kB data memory and 1 000 kB work memory with an 8 MB load memory that is expandable via memory card. Onboard I/O comprises 14 digital inputs and 10 transistor outputs rated 0.5 A with four high‑speed 100 kHz PTO/PWM channels. The CPU supports up to 4 000 program blocks and includes a dual‑port PROFINET interface for controller and device communication.

Key Features

• 24 V DC supply, current consumption 145 mA (CPU only) and up to 1 000 mA with modules

• 14 digital inputs and 10 transistor outputs (0.5 A) with four 100 kHz highspeed channels

• 250 kB program memory, 750 kB data memory and 1 000 kB work memory

• Load memory 8 MB, expandable via memory card

• Supports 4 000 program blocks and firmware updates

• Dual port PROFINET interface for controller/device and open IE communications

Downloads

Siemens_datasheet_6ES7214-1AH50-0XB0_1.pdf

pdf
Download

Brochure SIMATIC S7-1200 Basic Controllers.pdf

pdf
Download

Product overview - SIMATIC S71200.pdf

pdf
Download

SIMATIC S7-1200 G2.pdf

pdf
Download

Specifications

Product Type
CPU 1214C DC/DC/DC
Supply Voltage
24 V DC (20.4–28.8 V)
Current consumption (CPU only)
145 mA
Maximum Current
1 000 mA with expansion modules
Inrush current
≤ 12 A
Power loss
3.5 W
Program memory
250 kB
Data Memory
750 kB
Work memory
1 000 kB
Load memory
8 MB; expandable via memory card

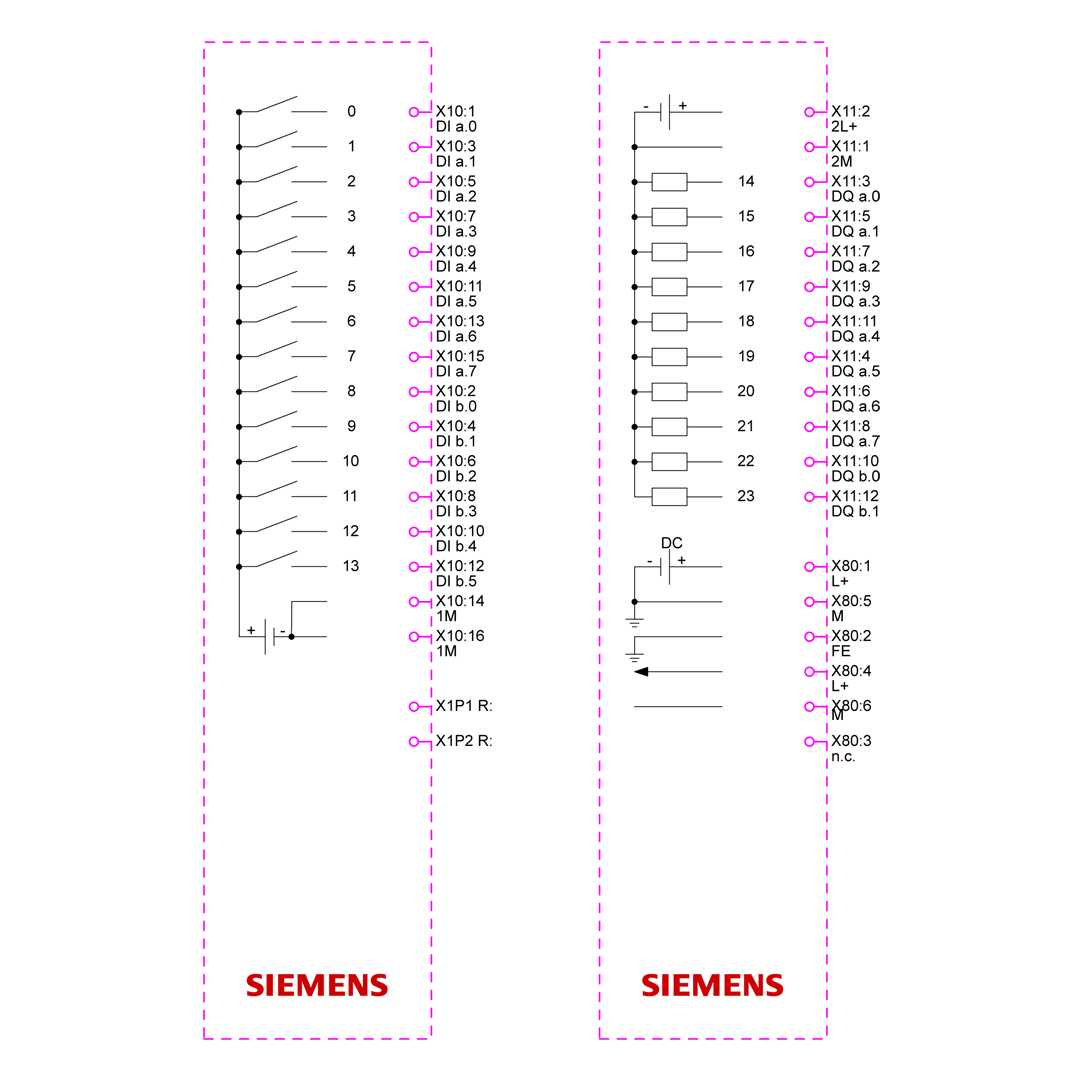

Digital Inputs
14 × 24 V DC
Digital outputs
10 transistor outputs, 0.5 A with four 100 kHz channels
High‑speed channels
4 × 100 kHz PTO/PWM; 2 × 20 kHz
Number of Blocks
Up to 4 000
Retentive memory
20 kB
Flag memory
8 kB
PROFINET interface
2 RJ45 ports; controller/device
Operating Temperature
−20 °C…+60 °C

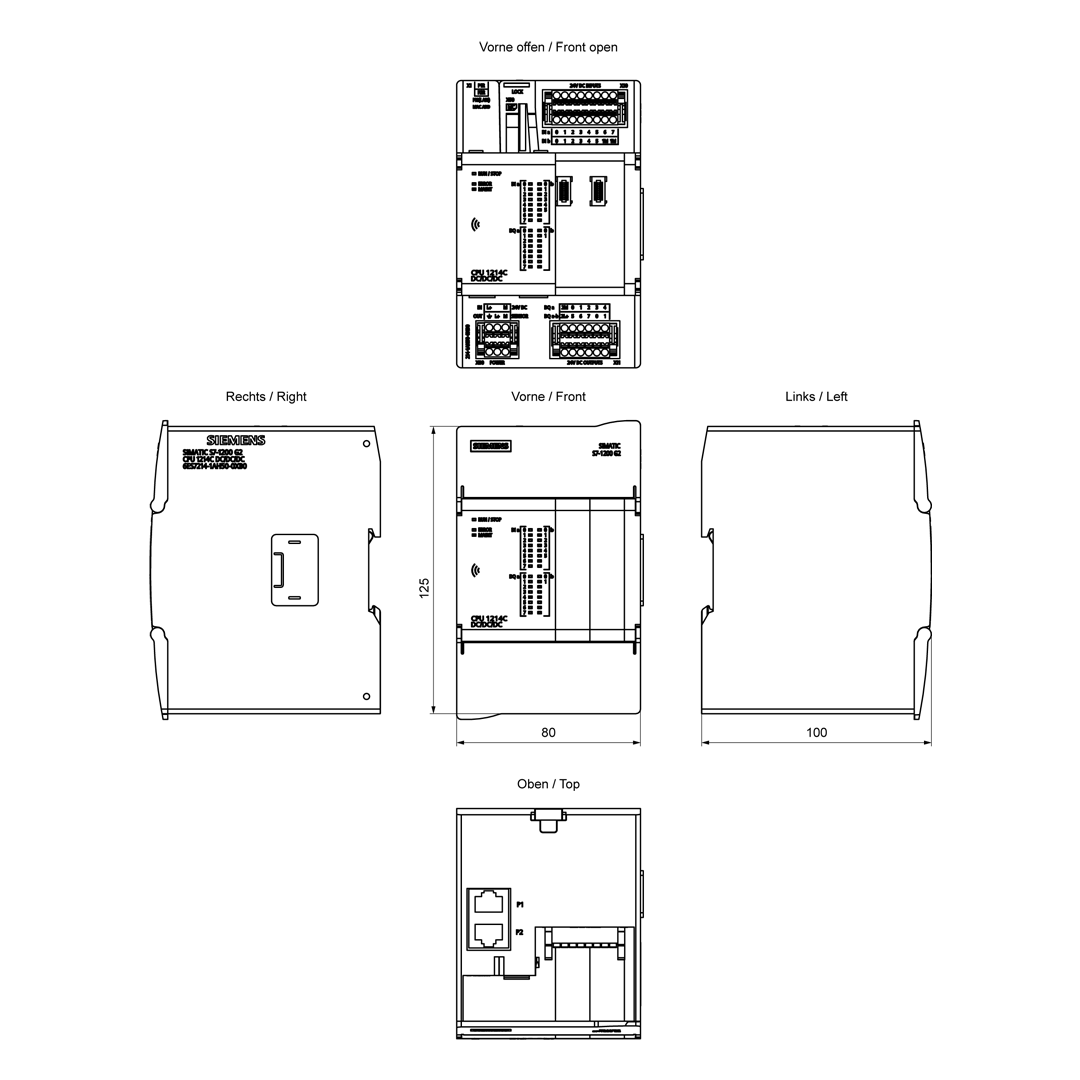

Dimensions
80 × 125 × 100 mm
Weight
Approx. 352 g
Protection
IP20
Approvals
CE, UL
Expansion capability
Supports 6 modules plus signal board
Real‑time clock
Integrated with battery‑free backup
