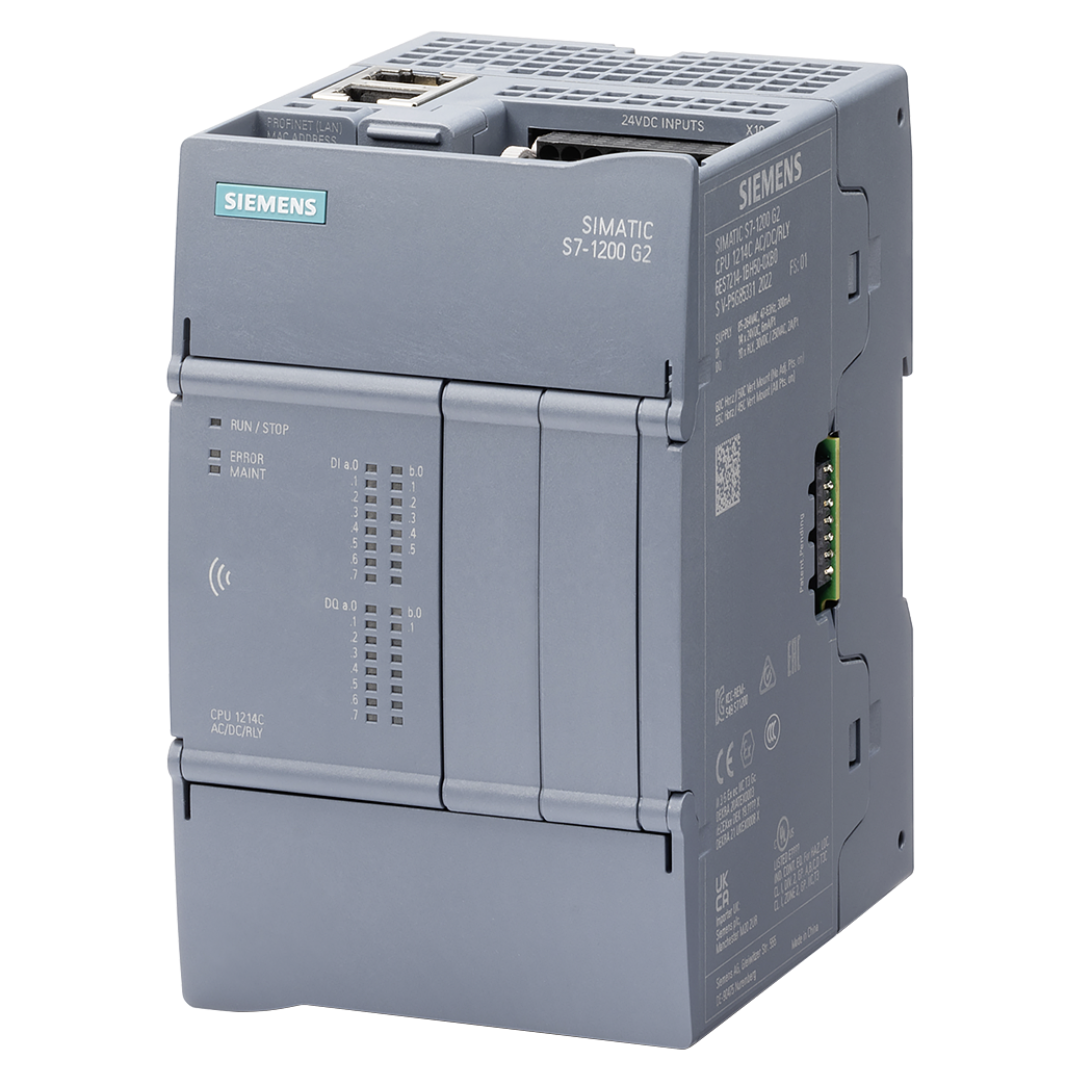

Siemens SIMATIC S7‑1200 Series, CPU 1214C AC/DC/Relay Controller, 14 Digital Inputs & 10 Relay Outputs, 250 kB Program Memory, 6ES7214-1BH50-0XB0

Part Number : 6ES7214-1BH50-0XB0

Brand :
Siemens

High‑performance CPU 1214C AC/DC/relay from the SIMATIC S7‑1200 G2 series featuring fourteen digital inputs, ten relay outputs and extended memory. Suitable for mid‑sized automation tasks with integrated PROFINET and powerful I/O.

View all

KWD 118.000

Quantity
Description
Specifications
Downloads
Related products

Description

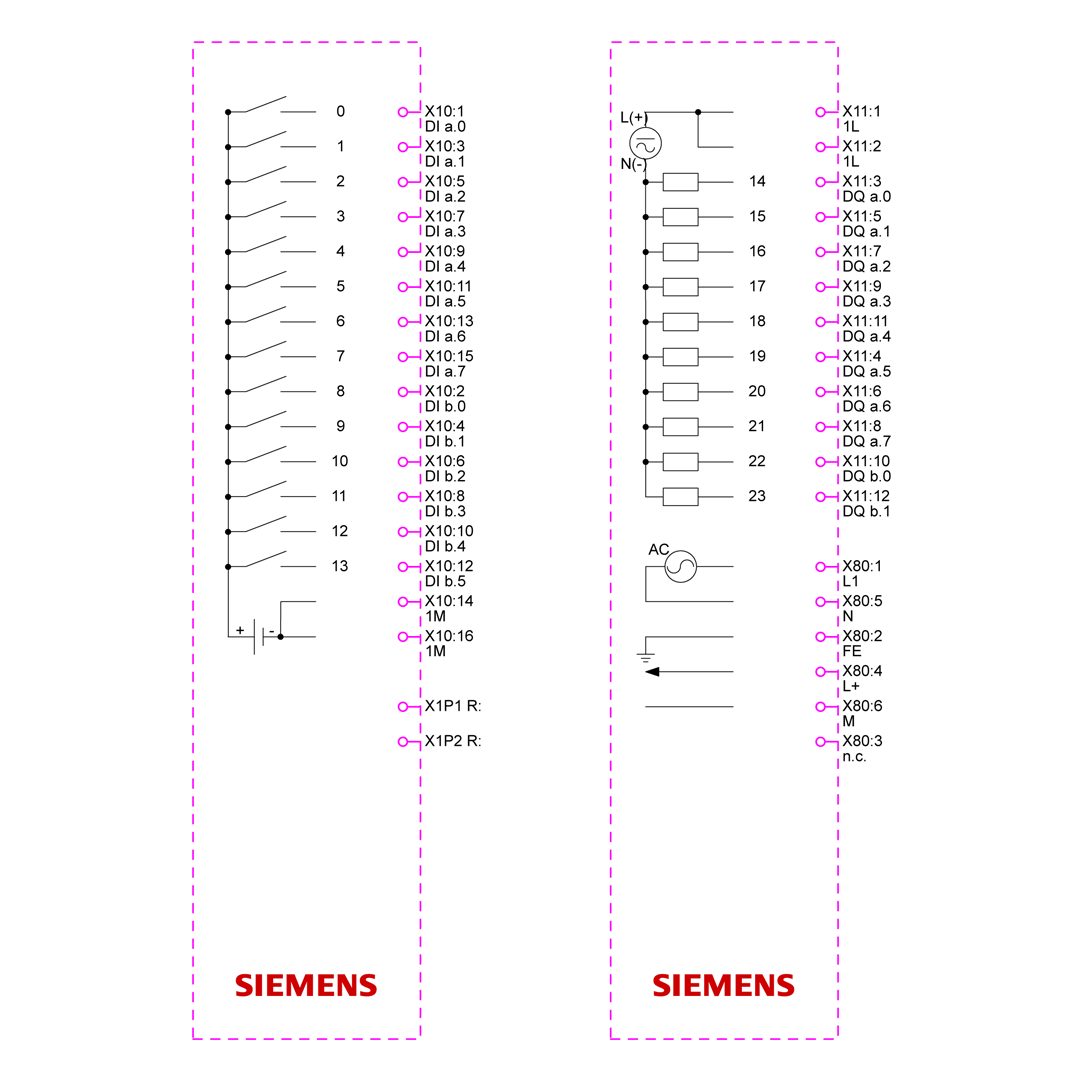

Siemens CPU 1214C AC/DC/relay accepts 120/230 V AC supply within 85–264 V at 47–63 Hz and draws around 80 mA at 120 V or 44 mA at 240 V; maximum currents are 480 mA and 275 mA, with an inrush current of 20 A. It provides 250 kB program memory, 750 kB data memory, 1 000 kB work memory and 8 MB load memory with expansion via memory card. Onboard I/O comprises 14 digital inputs (24 V DC) and 10 relay outputs rated 2 A, supporting lamp loads up to 30 W DC/200 W AC. High‑speed counters and pulse outputs are integrated for motion tasks. The CPU supports firmware updates, up to 4 000 program blocks and features a dual‑port PROFINET interface.

Key Features

• AC powered CPU with 85–264 V AC input and low current consumption

• 14 digital inputs and 10 relay outputs, high speed counters and PTO outputs

• 250 kB program, 750 kB data and 1 000 kB work memory

• Load memory 8 MB expandable via memory card

• Supports 4 000 program blocks and firmware updates

• Dual port PROFINET interface for controller/device and open IE communications

Downloads

Siemens_datasheet_6ES7214-1BH50-0XB0_1.pdf

pdf
Download

Brochure SIMATIC S7-1200 Basic Controllers.pdf

pdf
Download

Product overview - SIMATIC S71200.pdf

pdf
Download

SIMATIC S7-1200 G2.pdf

pdf
Download

Specifications

Product Type
CPU 1214C AC/DC/relay
Supply Voltage
120/230 V AC (85–264 V), 47–63 Hz
Current consumption (120 V)
80 mA
Current consumption (240 V)
44 mA
Maximum current (120 V)
480 mA
Maximum current (240 V)
275 mA
Inrush current
20 A
Program memory
250 kB
Data Memory
750 kB
Work memory
1 000 kB
Load memory
8 MB; expandable via memory card
Digital Inputs
14 × 24 V DC
Digital outputs
10 relay outputs, 2 A
High‑speed counters
Integrated, up to 100 kHz
Pulse outputs
2 × PTO/PWM channels
Number of Blocks
Up to 4 000
Retentive memory
20 kB
Flag memory
8 kB
PROFINET interface
Dual RJ45 ports; controller/device
Operating Temperature
−20 °C…+60 °C

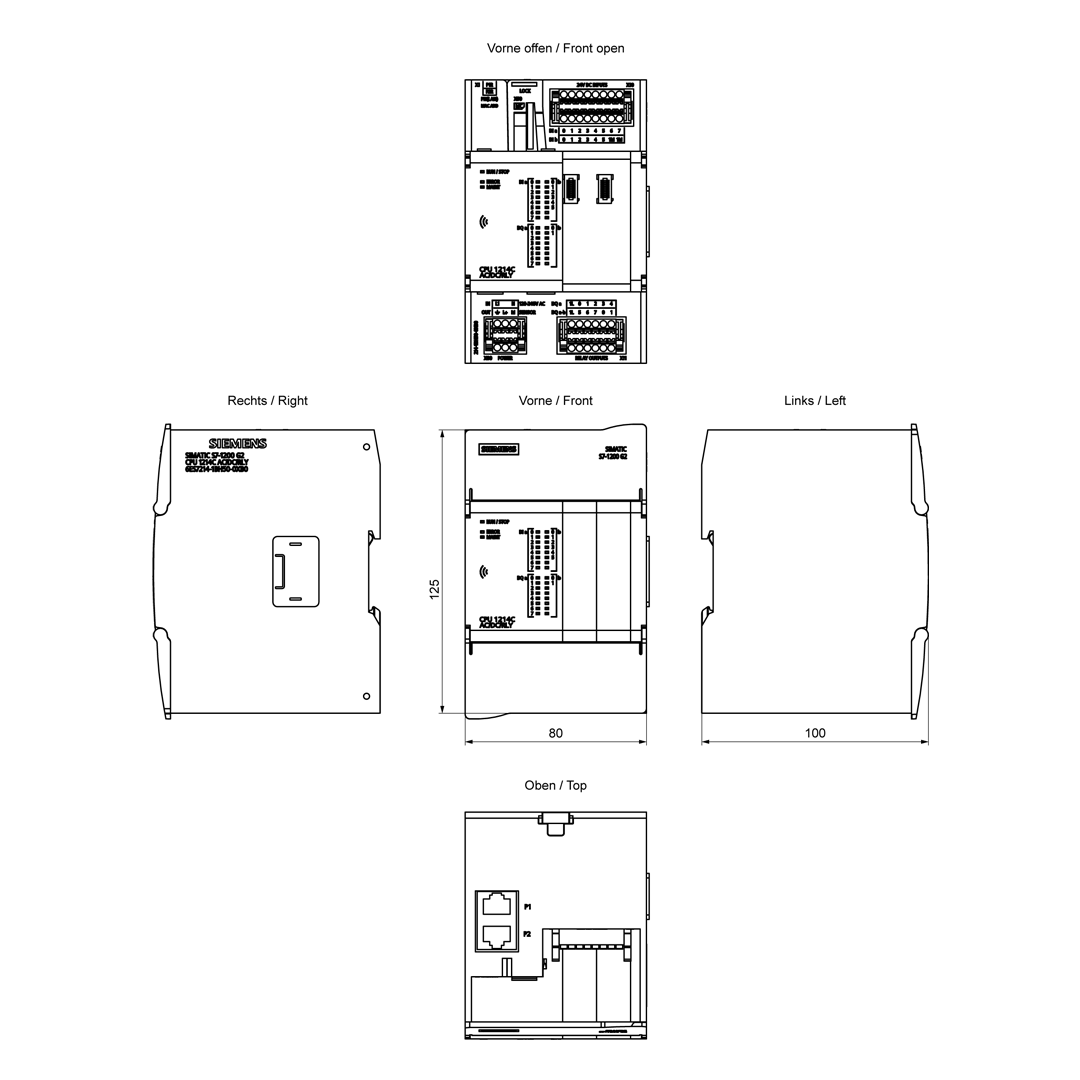

Dimensions
80 × 125 × 100 mm
Weight
Approx. 417 g
Protection
IP20
Approvals
CE, cULus
