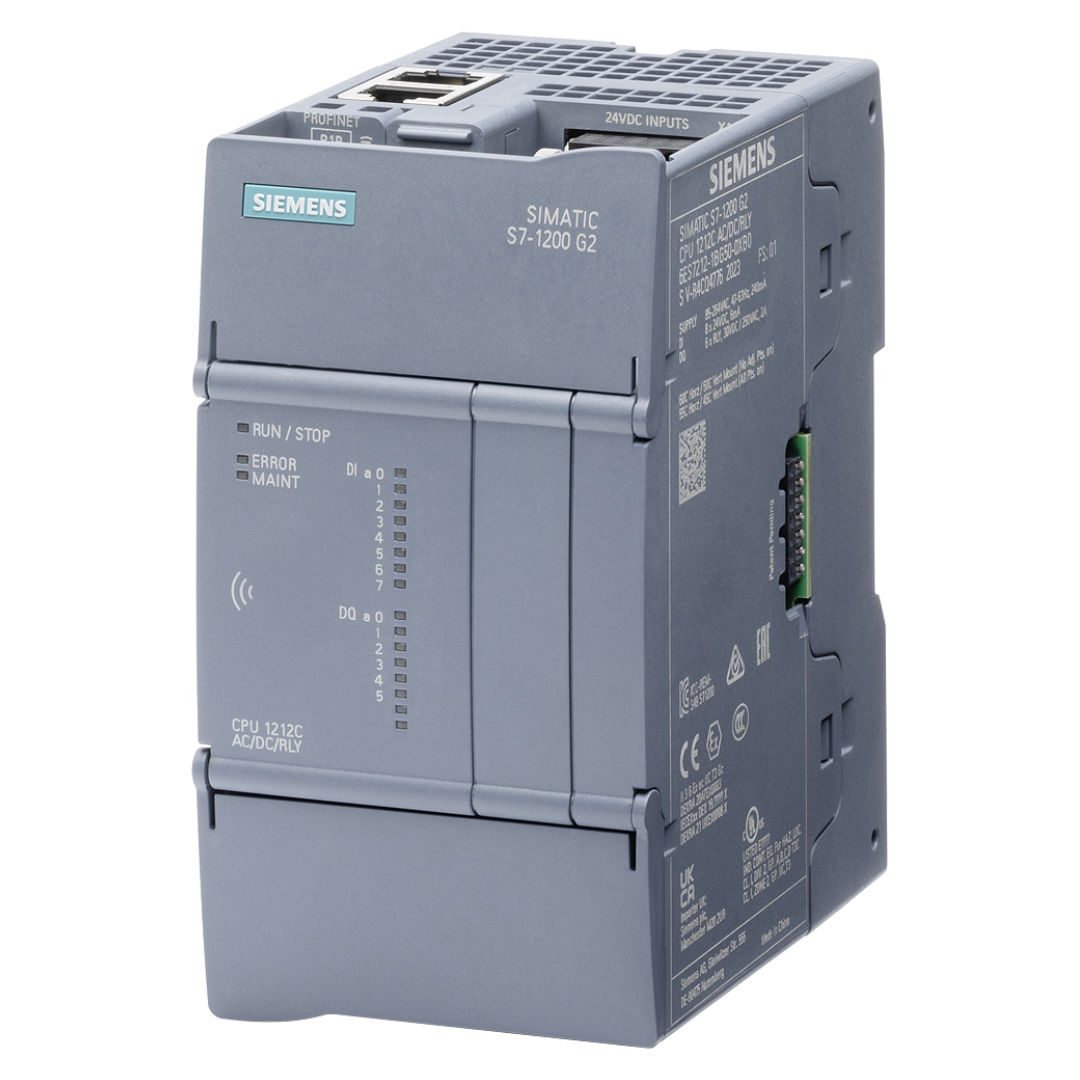

Siemens SIMATIC S7‑1200 Series, CPU 1212C DC/DC/Relay Controller, 8 Digital Inputs & 6 Relay Outputs, 150 kB Program Memory, 6ES7212-1HG50-0XB0

Part Number : 6ES7212-1HG50-0XB0

Brand :
Siemens

DC‑powered CPU 1212C variant with 8 digital inputs and 6 relay outputs. The unit features robust memory resources, integrated PROFINET communication and flexible expansion for mid‑range automation tasks.

View all

KWD 78.000

Quantity
Description
Specifications
Downloads
Related products

Description

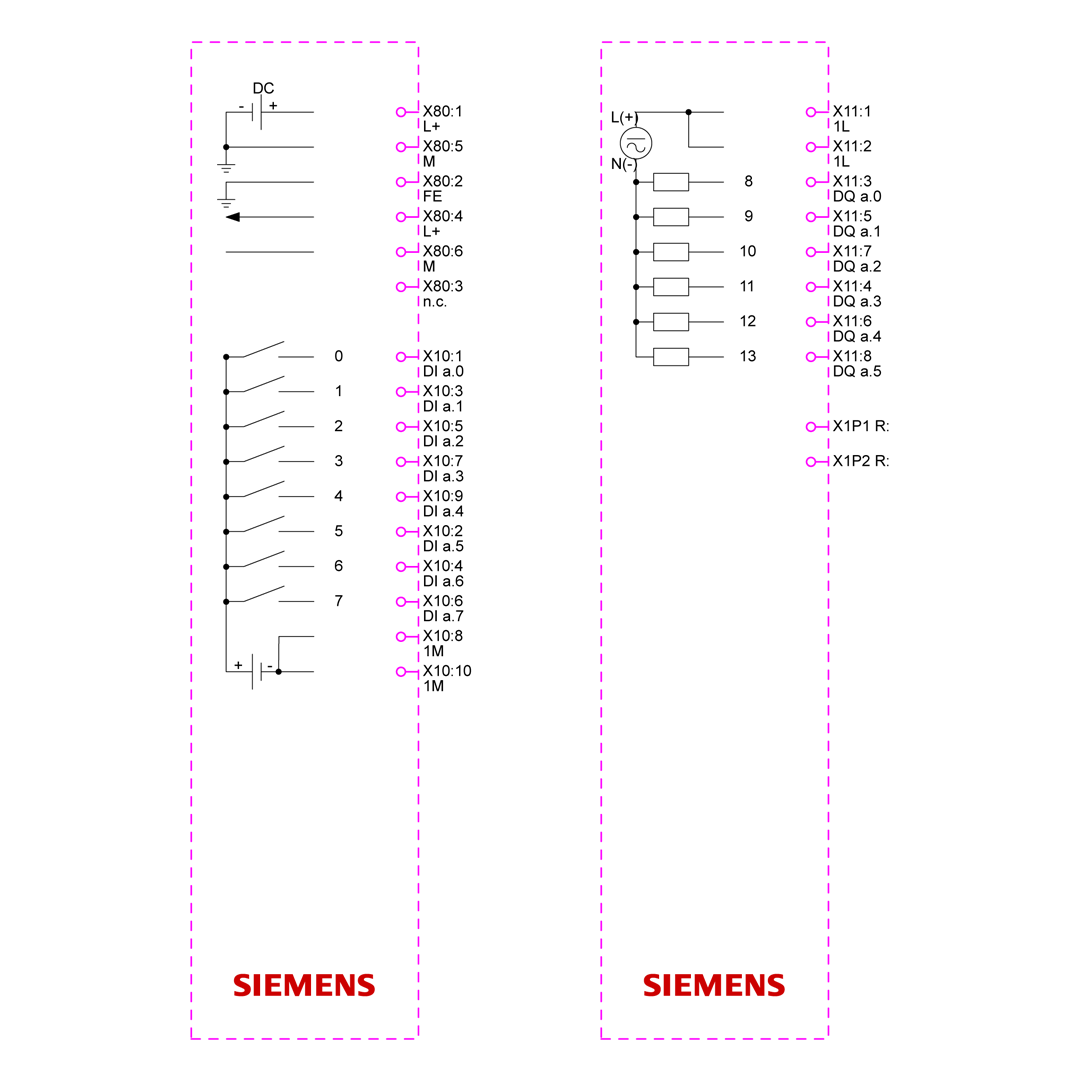

Siemens CPU 1212C DC/DC/relay operates on a 24 V DC supply (20.4–28.8 V) and consumes about 185 mA for the CPU alone; maximum current with expansion modules is 765 mA. Power loss is approximately 3 W and the CPU offers 150 kB program, 500 kB data and 650 kB work memory with 8 MB load memory expandable via memory card. Eight digital inputs accept 24 V DC signals with 5 V/0.5 mA signal‑0 threshold and 15 V/2.5 mA signal‑1 threshold and offer parameterizable input delay from 0.1 µs to 20 ms. Six integrated relay outputs switch up to 2 A resistive load and deliver 30 W DC/200 W AC lamp loads with 10 ms switching delay and 10 million mechanical cycles. The controller features a dual‑port PROFINET interface supporting PROFINET IO controller/device and open IE communications. It supports up to six expansion modules and includes an integrated real‑time clock and web server.

Key Features

• 24 V DC supply, current consumption 185 mA (CPU only)

• 8 digital inputs (24 V DC) with adjustable input delay 0.1 µs–20 ms

• 6 relay outputs rated 2 A with 10 ms switching time and 10 million cycles

• 150 kB program, 500 kB data and 650 kB work memory, 8 MB load memory expandable

• Supports six expansion modules and features integrated web server and real time clock

• Dual port PROFINET interface for controller and device operation

• Compact 70 mm width, operating range 20 °C…+60 °C

Downloads

Siemens_datasheet_6ES7212-1HG50-0XB0_1.pdf

pdf
Download

Brochure SIMATIC S7-1200 Basic Controllers.pdf

pdf
Download

Product overview - SIMATIC S71200.pdf

pdf
Download

SIMATIC S7-1200 G2.pdf

pdf
Download

Specifications

Product Type
CPU 1212C DC/DC/relay
Supply Voltage
24 V DC (20.4–28.8 V)
Current consumption (CPU only)
185 mA
Maximum Current
765 mA with expansion modules
Power loss
3 W
Program memory
150 kB
Data Memory
500 kB
Work memory
650 kB
Load memory
8 MB; expandable via memory card
Digital Inputs
8 × 24 V DC with signal 0/1 thresholds 5 V/15 V
Input delay
0.1 µs to 20 ms, parameterizable
Digital outputs
6 relay outputs, 2 A resistive
Lamp load
30 W DC / 200 W AC
Switching delay
10 ms
Mechanical endurance
10 million cycles
PROFINET interface
2 RJ45 ports; controller/device; open IE
Expansion capability
Supports 6 modules
Real‑time clock
Integrated
Operating Temperature
−20 °C…+60 °C

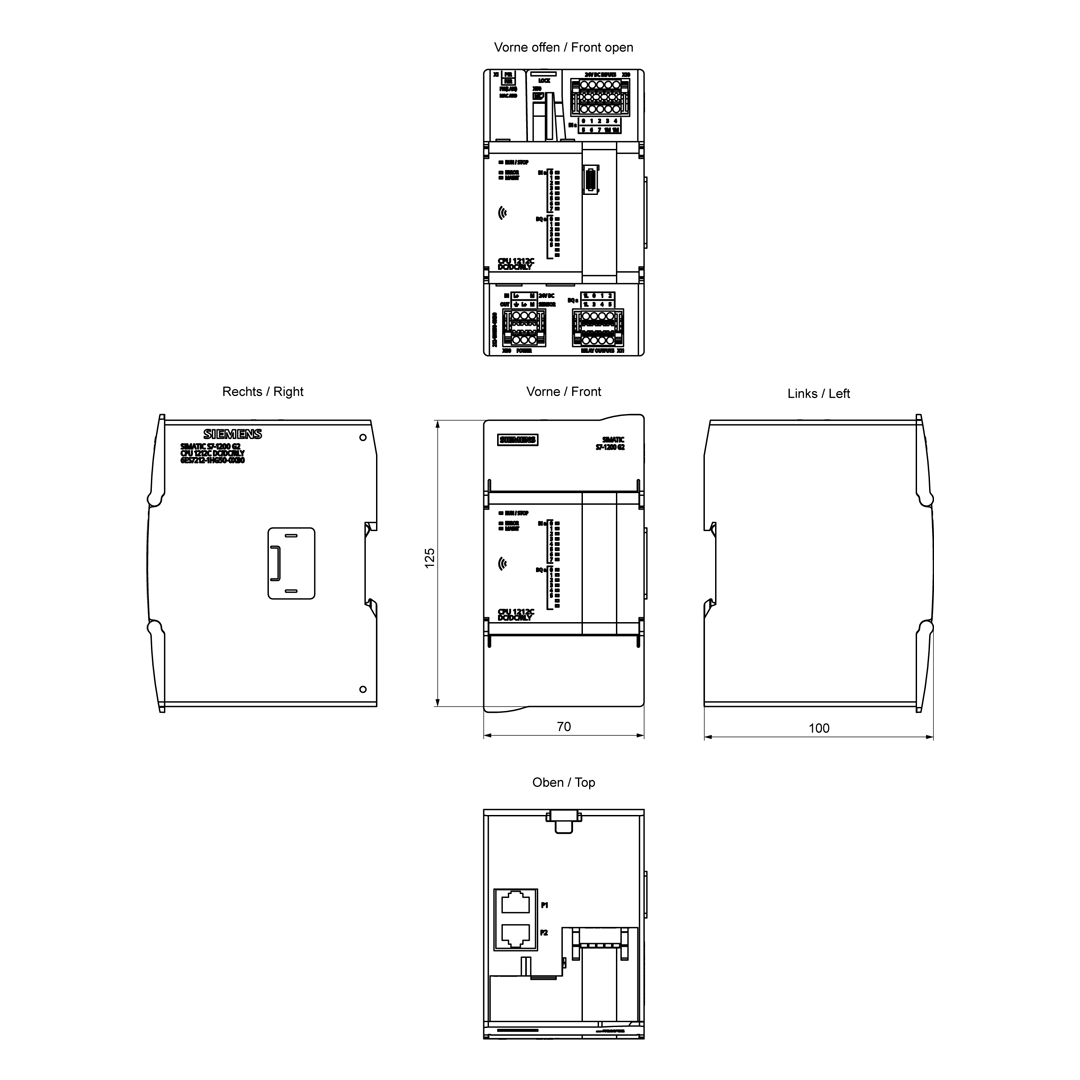

Dimensions
70 × 125 × 100 mm
Weight
Approx. 333 g
Protection
IP20
Approvals
CE, UL
