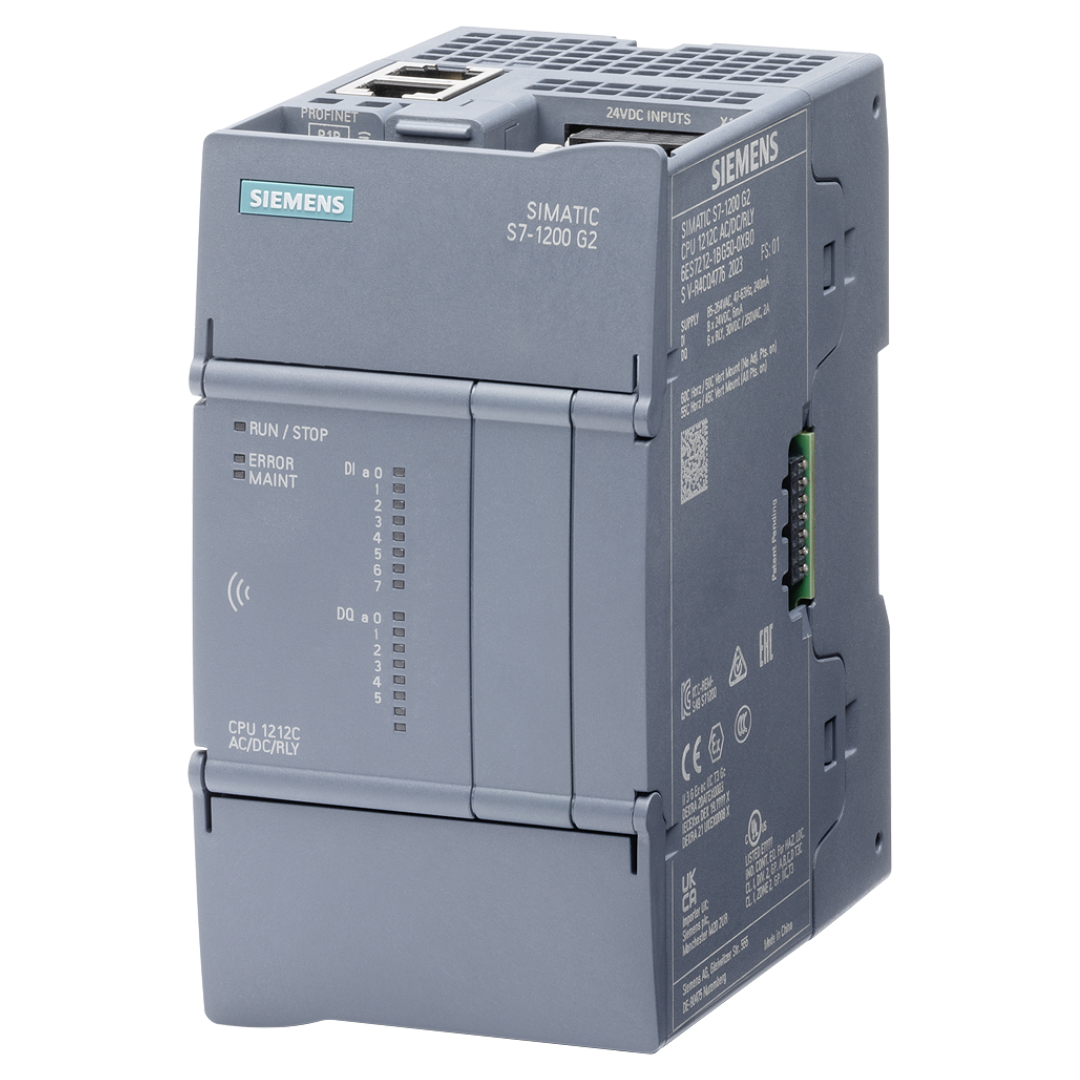

Siemens SIMATIC S7‑1200 Series, CPU 1212C AC/DC/Relay, 8 Digital Inputs & 6 Relay Outputs, 150 kB Program Memory,6ES7212-1BG50-0XB0

Part Number : 6ES7212-1BG50-0XB0

Brand :
Siemens

Compact CPU 1212C AC/DC/relay controller from the SIMATIC S7‑1200 G2 series with integrated PROFINET interface, eight digital inputs and six relay outputs. Designed for small automation tasks, it offers ample memory and flexible expansion.

View all

KWD 78.000

Quantity
Description
Specifications
Downloads
Related products

Description

Siemens CPU 1212C AC/DC/relay combines power supply, processing, memory and I/O in a 70‑mm‑wide housing. It accepts 120/230 V AC supply within the 85–264 V range at 47–63 Hz and consumes around 70 mA at 120 V or 38 mA at 240 V; maximum currents are 330 mA and 200 mA respectively. Inrush current can reach 20 A and typical power loss is 4 W. Program memory is 150 kB and data memory 500 kB with 650 kB work memory; load memory of 8 MB can be expanded via memory card up to 32 GB. Processing times are extremely fast: 37 ns for bit operations, 30 ns for word operations and 74 ns for floating‑point instructions. The CPU supports up to 4 000 OB/FB/FC/DB/UDT blocks and provides 20 kB retentive data, 8 kB flag memory and 64 kB local data per priority class. Onboard I/O includes 8 digital inputs (24 V DC) with sink/source configuration and 6 relay outputs rated 2 A with 10 ms switching delay. Two RJ45 ports support PROFINET IO Controller/Device, IPv4, SIMATIC communication and open IE protocols at 100 Mbit/s. The module permits up to six expansion modules, features an integrated real‑time clock with 480‑h backup and ±2 s/day accuracy, and operates from −20 °C to +60 °C.

Key Features

• Integrated compact CPU with AC power supply (85–264 V AC)

• 8 digital inputs and 6 relay outputs, highspeed counting and fast output switching

• 150 kB program memory, 500 kB data memory and 650 kB work memory

• Fast instruction processing: 37 ns bit, 30 ns word, 74 ns floating point

• Expandable with up to 6 modules plus signal board, supports 4 000 blocks

• Integrated PROFINET with 2 RJ45 ports supporting Controller/Device modes

• Realtime clock with 480 h backup and ±2 s/day deviation

• Operating temperature 20 °C…60 °C

Downloads

Siemens_datasheet_6ES7212-1BG50-0XB0_1.pdf

pdf
Download

Brochure SIMATIC S7-1200 Basic Controllers.pdf

pdf
Download

Product overview - SIMATIC S71200.pdf

pdf
Download

SIMATIC S7-1200 G2.pdf

pdf
Download

Specifications

Product Type
CPU 1212C AC/DC/relay
Supply Voltage
120/230 V AC (85–264 V), 47–63 Hz
Rated current (120 V)
70 mA
Rated current (240 V)
38 mA
Maximum current (120 V)
330 mA
Maximum current (240 V)
200 mA
Inrush current
≤ 20 A
Power loss
4 W
Program memory
150 kB
Data Memory
500 kB
Work memory
650 kB
Load memory
8 MB, expandable to 32 GB via memory card
Instruction times
37 ns bit, 30 ns word, 74 ns floating point
Number of Blocks
Up to 4 000 OB/FB/FC/DB/UDT blocks
Retentive memory
20 kB retentive data area
Flag memory
8 kB flag memory
Local data
64 kB per priority class
Expansion capability
Supports 6 expansion modules and 1 signal board
Real‑time clock
Integrated with 480 h backup, ±2 s/day

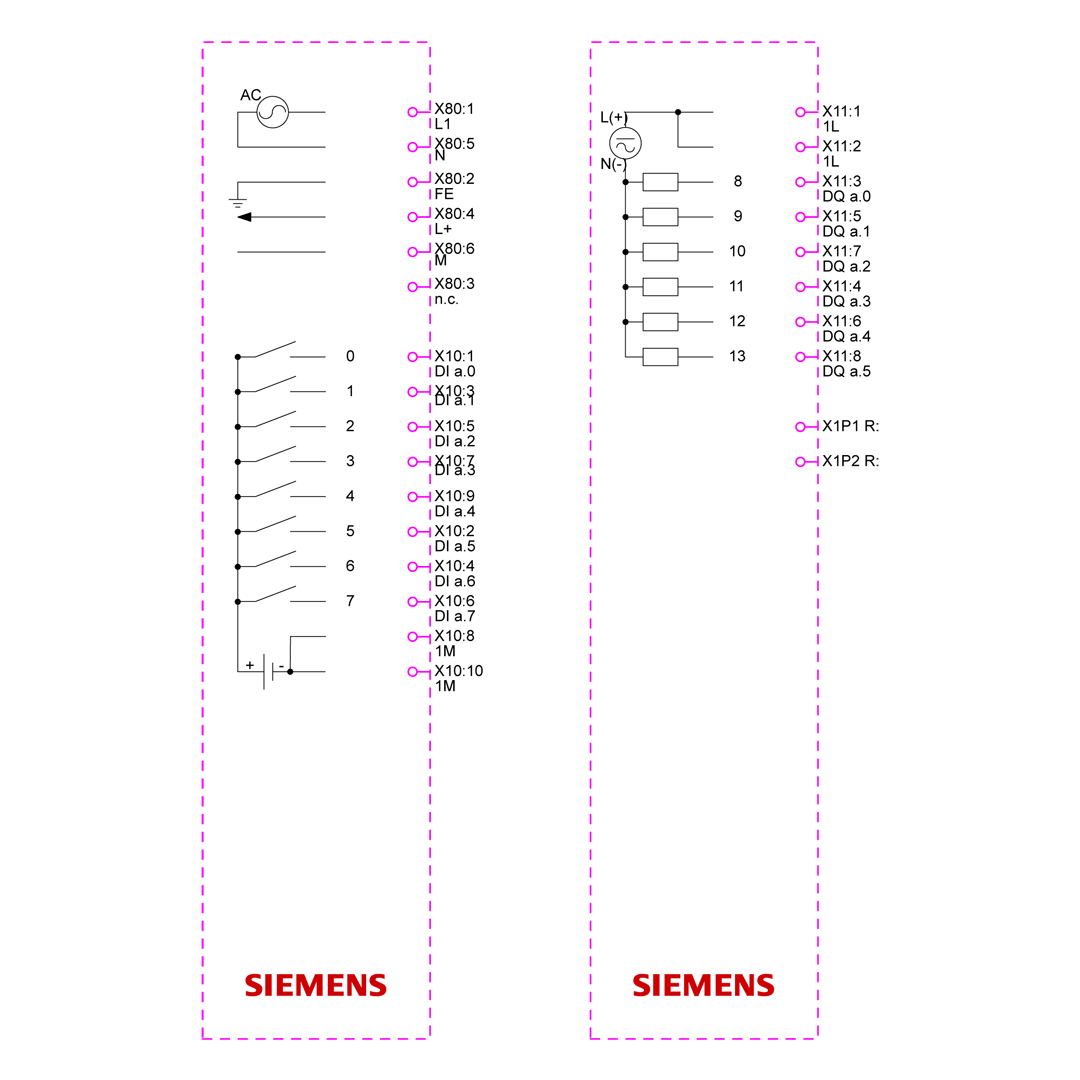

Digital Inputs
8 × 24 V DC, sink/source with adjustable delay
Digital outputs
6 relay outputs, 2 A resistive, switching delay 10 ms
PROFINET interface
2 RJ45 ports; Controller/Device; 100 Mbit/s
Operating Temperature
−20 °C…+60 °C

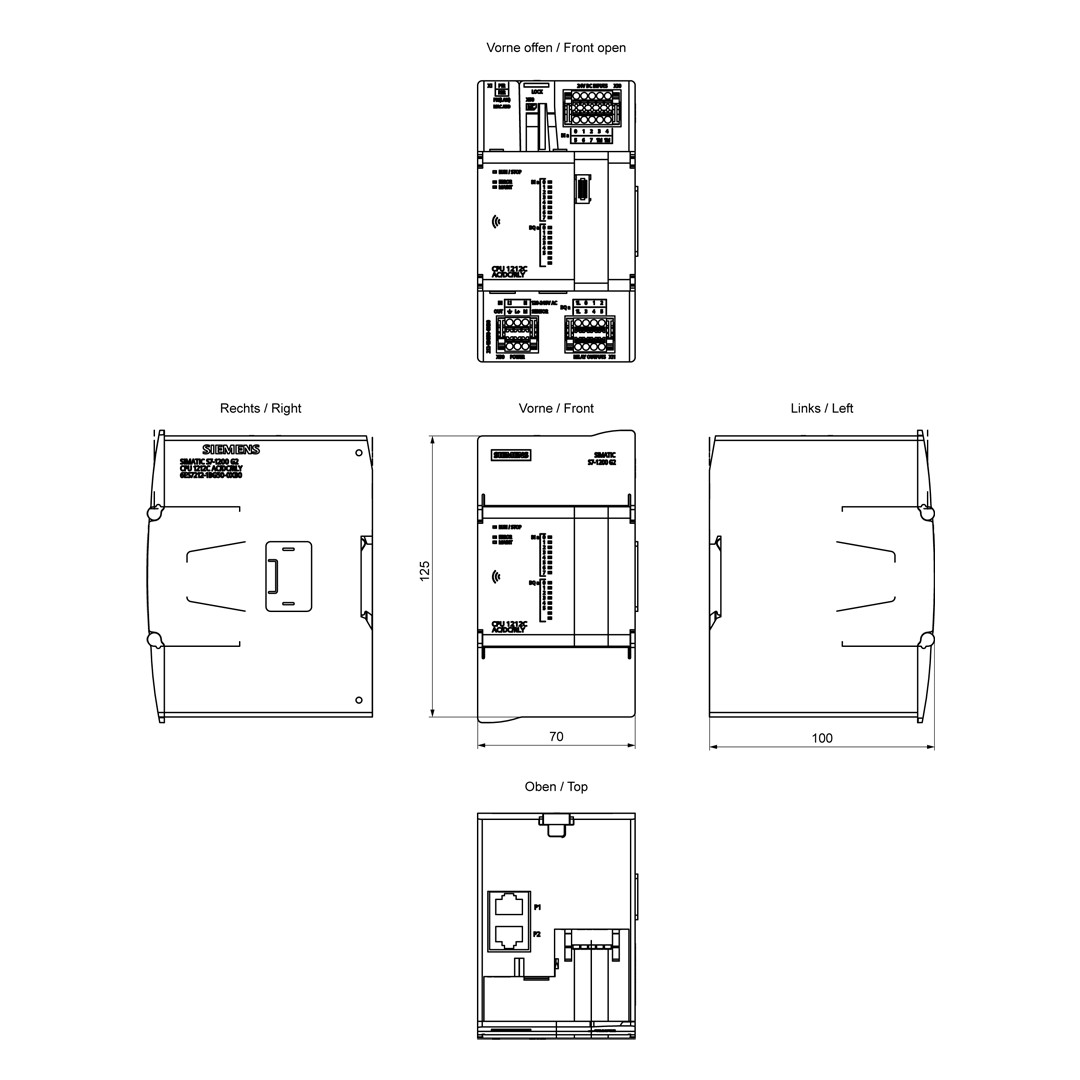

Dimensions
70 × 125 × 100 mm
Weight
Approx. 373 g
