Schneider Electric Moduled Case Circuit Breaker, ComPacT NSX250N, Breaking Capacity 50kA rms at 415VAC 50/60Hz, 3 poles, MA trip unit 220A, C25N3MA220

Part Number : C25N3MA220

Brand :
Schneider Electric

Schneider Electric Circuit Breaker, C25N3MA220, is built for reliable industrial control, offering high durability, performance consistency, and integration flexibility in automated systems.

This product is also a replacement for the Discontinued model - LV431752

View all

KWD 117.000

Quantity
Description
Specifications
Downloads
Related products

Description

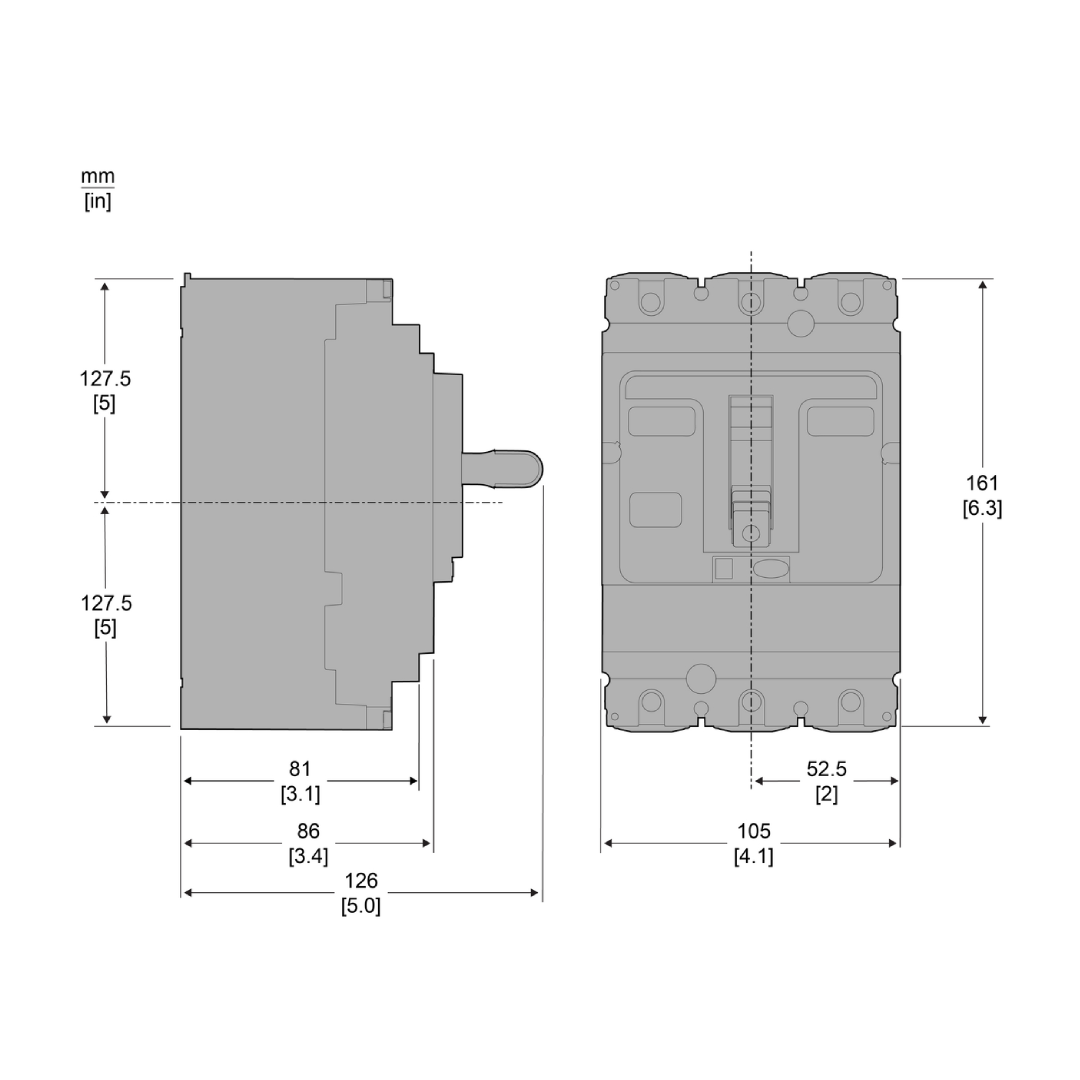

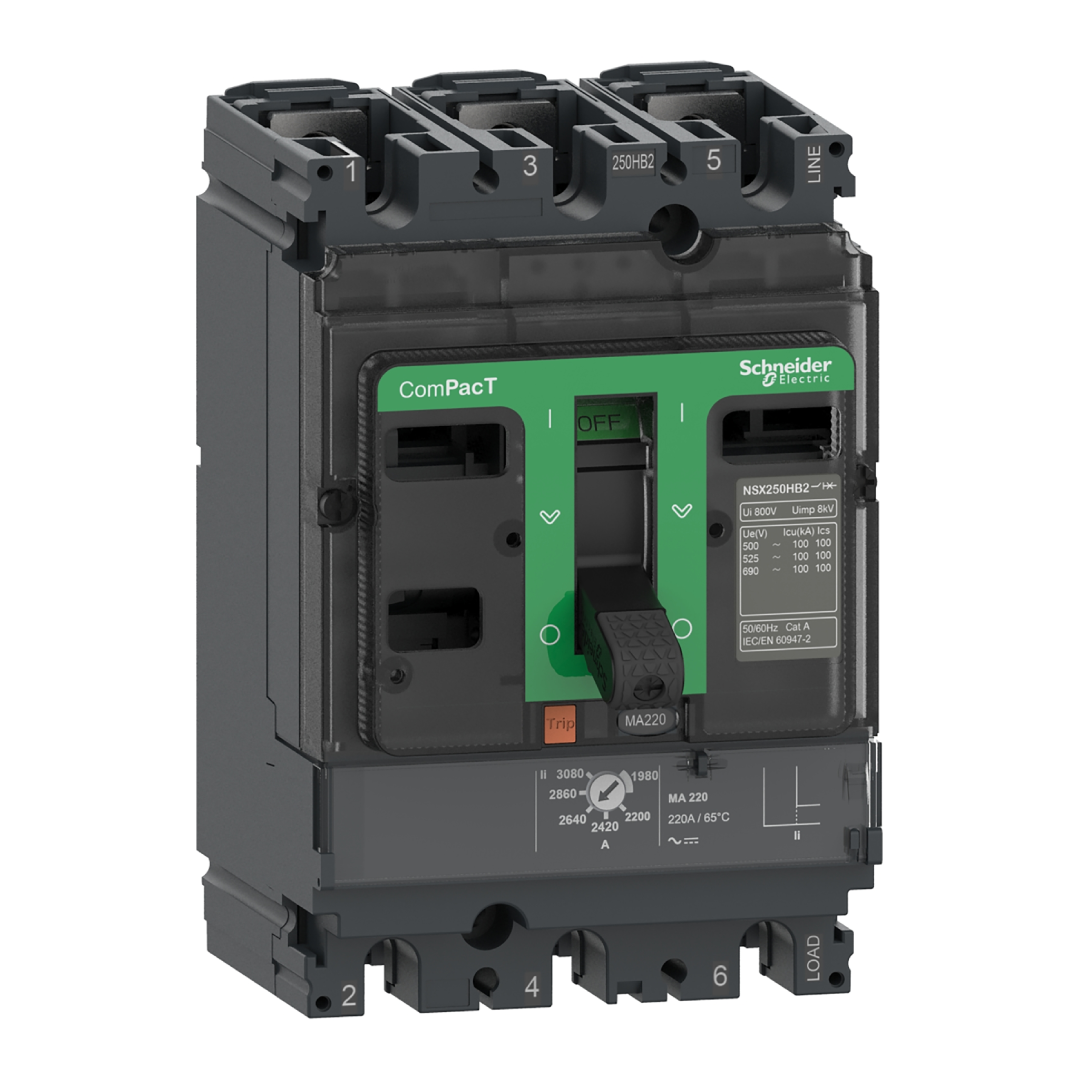

This ComPacT NSX250N is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 220A rating magnetic trip unit (MA). MA trip unit provides an adjustable magnetic protection for instantaneous tripping. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250N is part of Schneider Electric EcoStruxure Power architecture. This product is also a replacement for the Discontinued model - LV431752

Technical Features

• Clear markings

• Semi-transparent faceplate: for confidence on correct auxiliary placement.

• Egronomic toggle: easier operation

• Quick access: QR code for product information on GO2SE.

Protection begins with prevention

Designed to prevent an electrical fire through integrated earth leakage protection with preventive maintenance thanks to its Everlink power connections.

Maximize power availability

By providing corrective, preventive and predective maintenance for asset management thanks to our advanced MicroLogic trip Units.

Connectivity

Designed to connect to EcoStruxure Power, an IoT-connected architecture for improving every aspect of your power distribution system.

Downloads

Datasheet C25N3MA220.pdf

pdf
Download

Specifications

Range
ComPacT NSX new generation
Device short name
NSX250N
No. of poles
3
Breaking Capacity
50 kA
[In] rated current
220A at 65 °C
Operational Voltage
690VAC 50/60Hz
Device application
Motor protection
Network type
AC
Network frequency
50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Performance level
N 50 kA 415 V AC
Trip unit technology
Magnetic
Control Type
Toggle
Circuit breaker mounting mode
Fixed
[Uimp] rated impulse withstand voltage
8 kV
Mechanical Durability
20000 cycles
Power dissipation per pole
14.52 W
Mounting support
Backplate
Mounting position
Horizontal and vertical Flat on the back
Connection pitch
35 mm
Protection type
I : for short-circuit protection (magnetic)
[Isd] Short-time protection pick-up adjustment range
9...14 x In
Number of slots for electrical auxiliaries
5 slot(s)
Standards
EN/IEC 60947-2
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Ambient air temperature for operation
-25…70 °C
Relative Humidity
0…95 %
Operating Altitude
0...2000 m without derating, 2000 m...5000 m with derating
