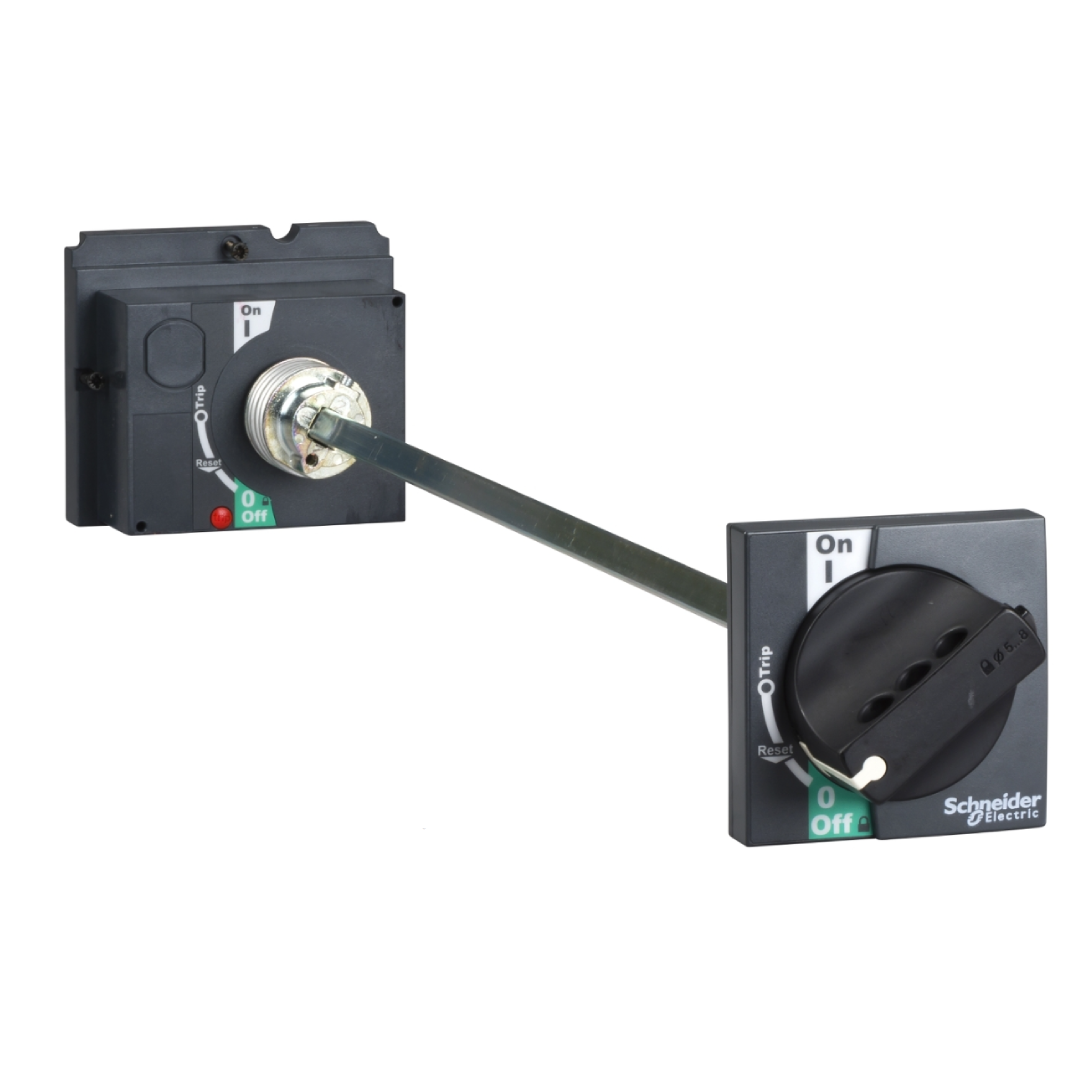

Schneider Electric Extended Rotary Standard Black Handle used with Compact NSX 100/160/250, PowerPact Multistandard H/J Frames and EasyPact CVS 100/160/250 Devices, 185 mm to 600 mm, LV429338

Part Number : LV429338

Brand :
Schneider Electric

Schneider Electric Rotary Handle, LV429338, is built for reliable industrial control, offering high durability, performance consistency, and integration flexibility in automated systems.

View all

KWD 70.000

Quantity
Description
Specifications
Downloads
Related products

Description

An extended rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Downloads

Datasheet LV429338.pdf

pdf
Download

Instruction Sheet LV429338.pdf

pdf
Download

Specifications

Range compatibility
EasyPact CVS100...250
Product or component type
Rotary handle
Accessory / separate part type
Control accessories
Handle colour and front plate
Black
Rotary handle mounting style
Extended
Rotary handle padlocking
Padlock in OFF position, 1 to 3 padlocks
Rotary handle mounting location
Front
IP degree of protection
IP55
