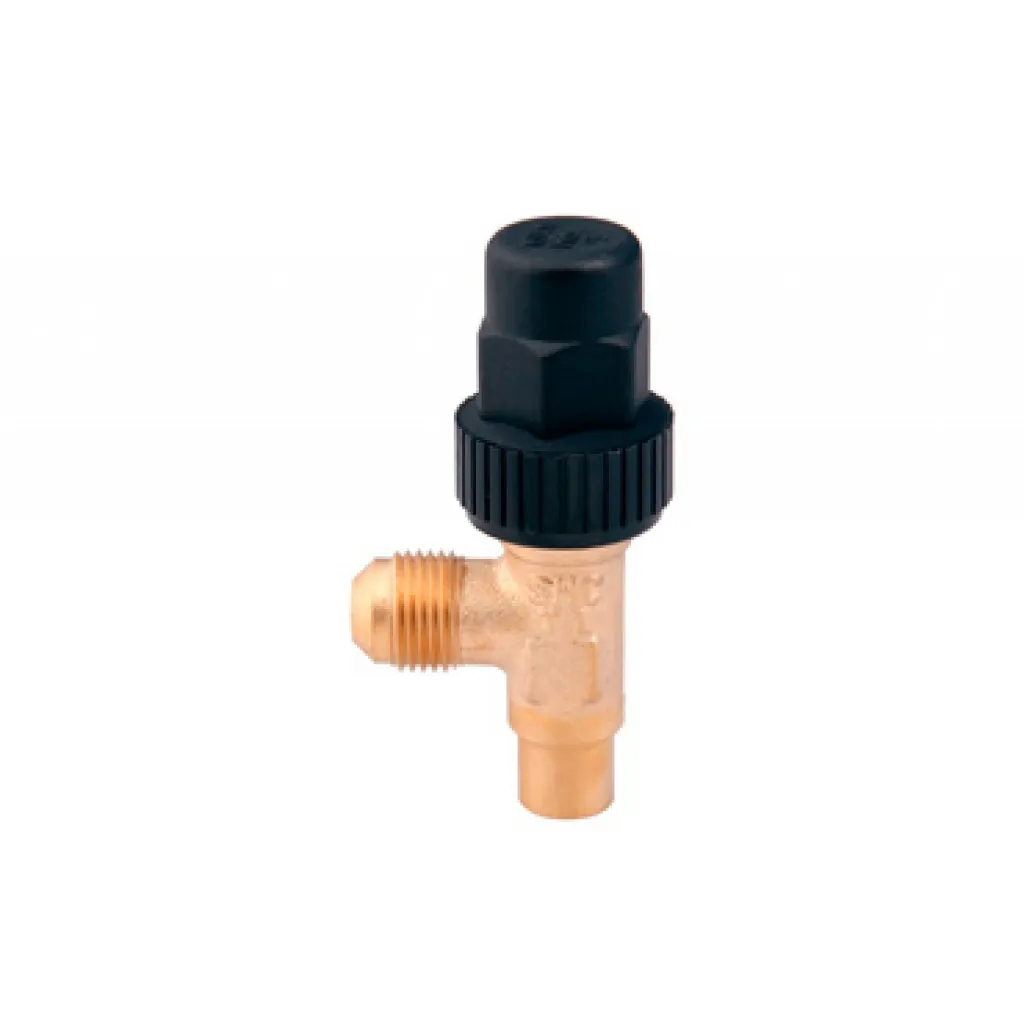

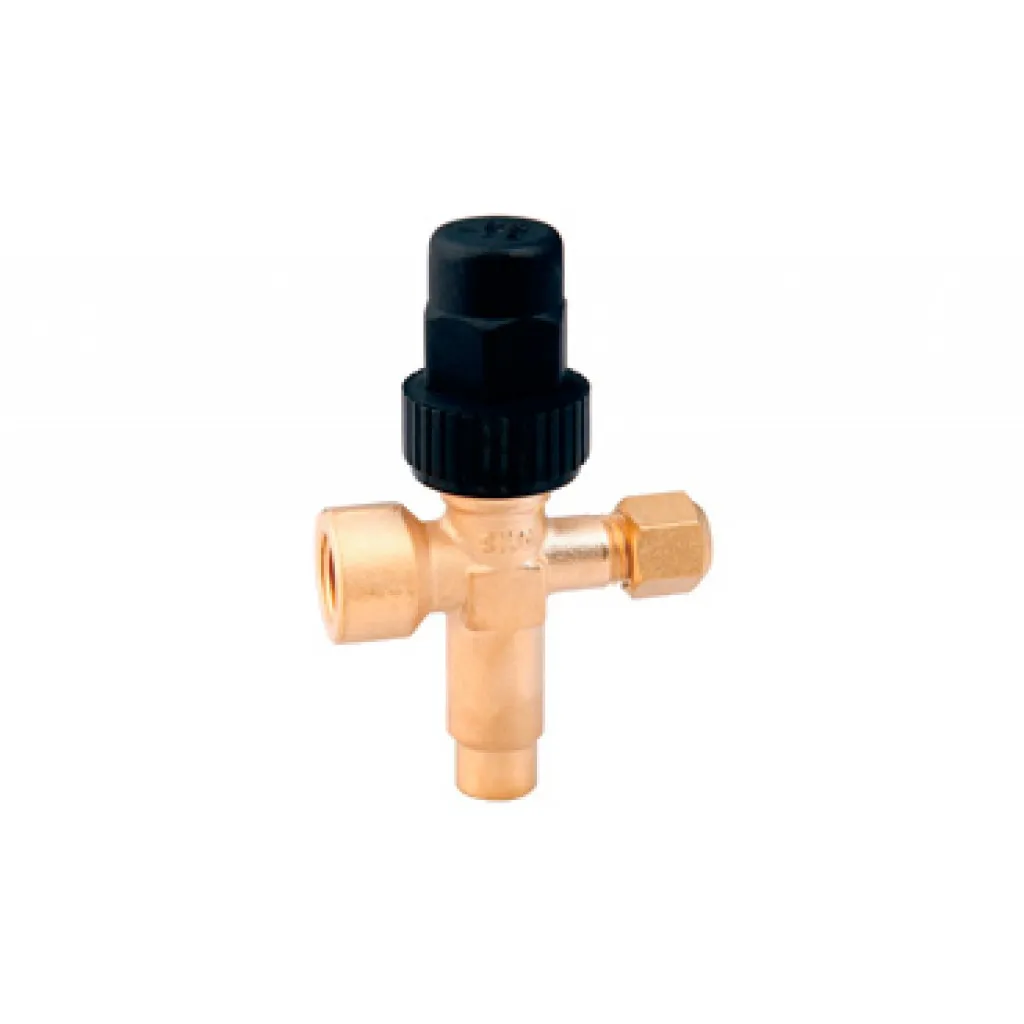

Sanhua ZJF Series Receiver Valve

Brand :
Sanhua

ZJF series receiver valves connect compressors and reservoirs and provide shut-off function for commercial refrigeration systems.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Sanhua ZJF series receiver valves are used for tube connection between compressors and receivers in commercial air-conditioning, freezing and deep-freezing equipment. The valve stem can be operated to open or close the internal flow path, enabling isolation, service operations and system charging. An optimised design provides cost-effective performance and good appearance, while the shot-blasted valve body and special sealing structure ensure durable, leak-tight service. ZJF valves are suitable for R22, R134a and R407C and have maximum working pressure of 4.2 MPa with UL certification.

Key Features

• Connects compressors and receiver vessels • Shut-off function via operated stem • Cost-effective performance optimised design • Shot-blasted valve body surface • Particular sealing structure for tightness • Suitable for R22, R134a and R407C • Maximum working pressure 4.2 MPa • UL certified receiver valve range

Downloads

Sanhua Datasheet Receiver Valve Series ZJF.pdf

pdf
Download

Specifications

Product Type
ZJF receiver valve
Function
The circuit function of a solenoid valve specifies how fluid will flow between the valve's ports when it is energized de-energized.
Shut-off / connection
Applications
Commercial refrigeration
Refrigerants
R22 / R134a / R407C
Medium temp
-40 to +120°C
Max Pressure
4.2 MPa
Certification
UL listed
Body finish
Shot blasted
