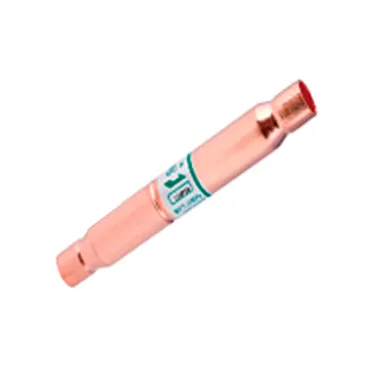

Sanhua Float Type Check Valve Series for Capillary Bypass

Brand :
Sanhua

Float type check valves provide low-resistance, one-way refrigerant flow in shunt connections with capillary tubes.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Sanhua float type check valves are used in air-conditioning systems in shunt connection with capillary tubes to control forward and reverse refrigerant flow. They employ a high-quality engineering plastic valve core and stable body structure that delivers very small flow resistance with relatively high flow capacity. Typical applications include small split systems and packaged units where reliable one-direction flow is required alongside capillary expansion devices.

Key Features

• High-quality engineering plastic valve core • Stable structure with good sealing performance • Small flow resistance with high flow rate • Designed for capillary tube shunt circuits • Ensures one-way refrigerant flow • Suitable for common R22, R407C, R410A gases • Compact brazed-in construction

Downloads

Sanhua Datasheet Check Valve Float Type Series.pdf

pdf
Download

Specifications

Valve Type
Float check
Function
The circuit function of a solenoid valve specifies how fluid will flow between the valve's ports when it is energized de-energized.
One-way flow
Refrigerants
R22 / R410A
Medium temp
-30 to 120°C
Max Pressure
4.2 MPa
Flow loss
Low resistance
Connection
Brazed ends
Usage
Capillary shunt
