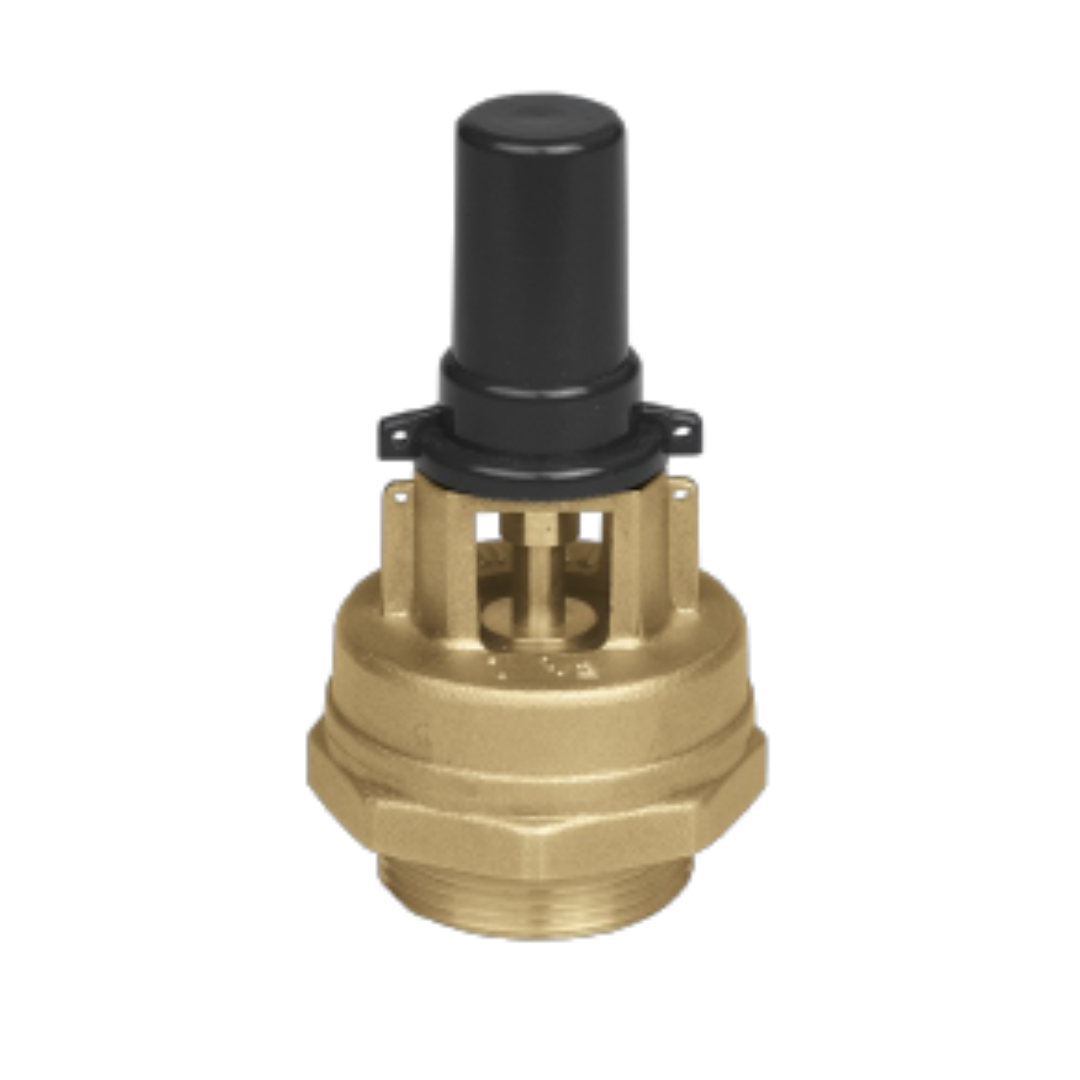

RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2", 050290000009

Part Number : 050290000009

Brand :
RIV

RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2", 050290000009 is designed to deliver superior performance, ensuring efficiency and reliability in industrial applications.

View all

KWD 12.300

Quantity
Description
Specifications
Downloads
Related products

Description

The RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2", 050290000009 is a high-quality industrial component engineered for optimal efficiency and reliability. With robust construction and advanced features, it is perfect for applications requiring precision and durability. Whether used in manufacturing, processing, or automation, this product ensures long-lasting performance and enhanced operational efficiency.

Features

• A mechanical stop (12) regulates the valve opening in the position of maximum discharge.

• In case of accidental unscrewing of the nut that adjusts the spring because of the vibrations, a second stop (11) blocks mechanically the unscrewing and guarantees anyway a min. calibration of about -0,3 bar (-4 Psi). Furthermore it prevents the nuts from unscrewing completely and falling into the equipments on which the valve is installed.

• For safety reasons, the diameter of the obturator (3) is larger than the discharge orifice, so that, in case of an accidental breaking of the stem, the obturator can't fall into the equipments, on which the valve is installed.

• The valve can be easily adjusted to the desired pressure, after which the cap can be sealed tamper-proof through two practical drilled tongues.

• The max .working pressure (PN) means at a room temperature of about 23°C.

Downloads

Datasheet Ambra - RIV 290.pdf

pdf
Download

Riv_290_Setting_Instruction_Uk.pdf

pdf
Download

Specifications

Size
1-1/2"
Body Material
Brass
Connection
ISO 228/1, ANSI B1.20.1 (NPT)
Maximum Temperature
0°C (+32°F), without liquid +180°C (+356°F)
Weight
0.519 kg

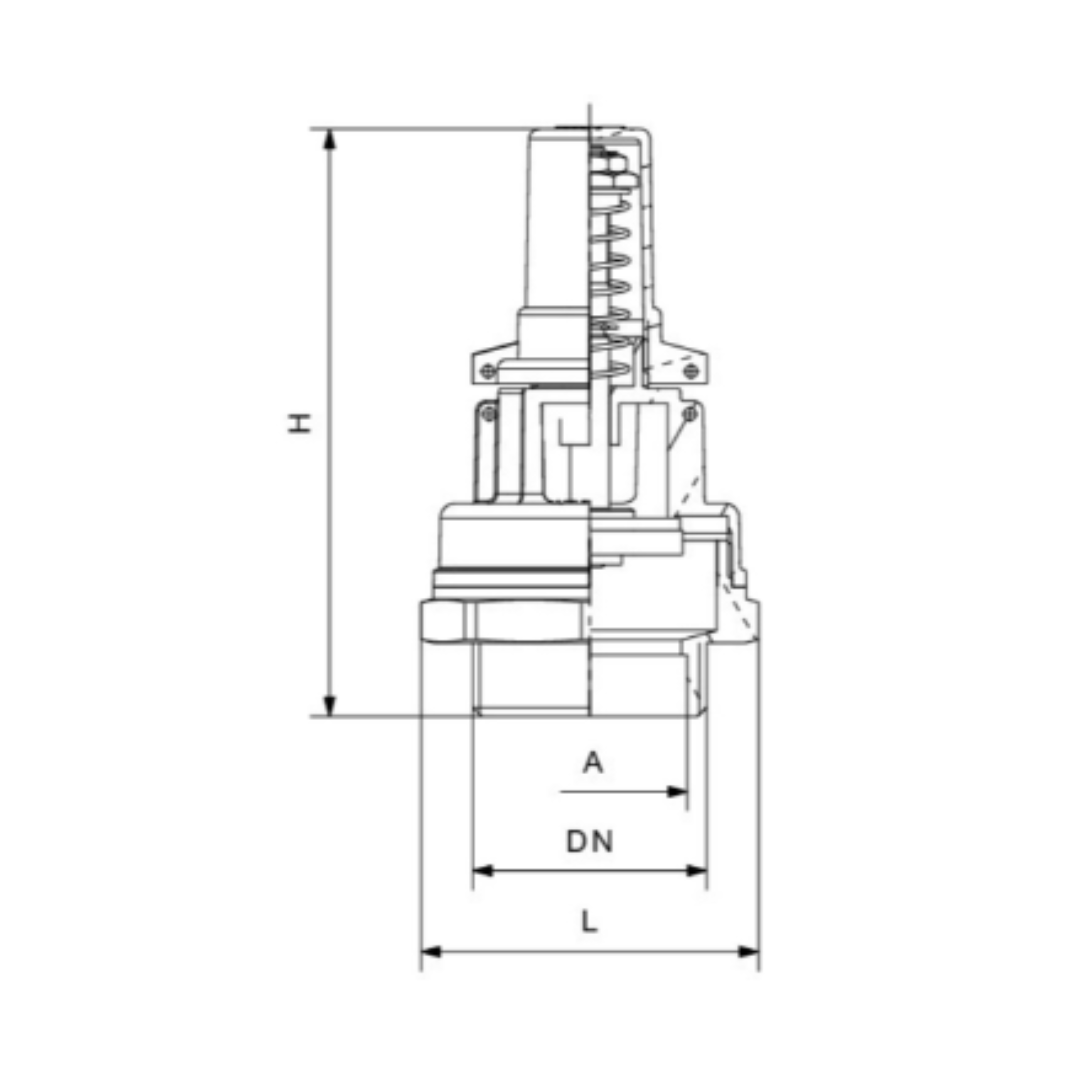

Dimensions (HxL)
120 mm x 69 mm
Diameter (A)
40 mm
