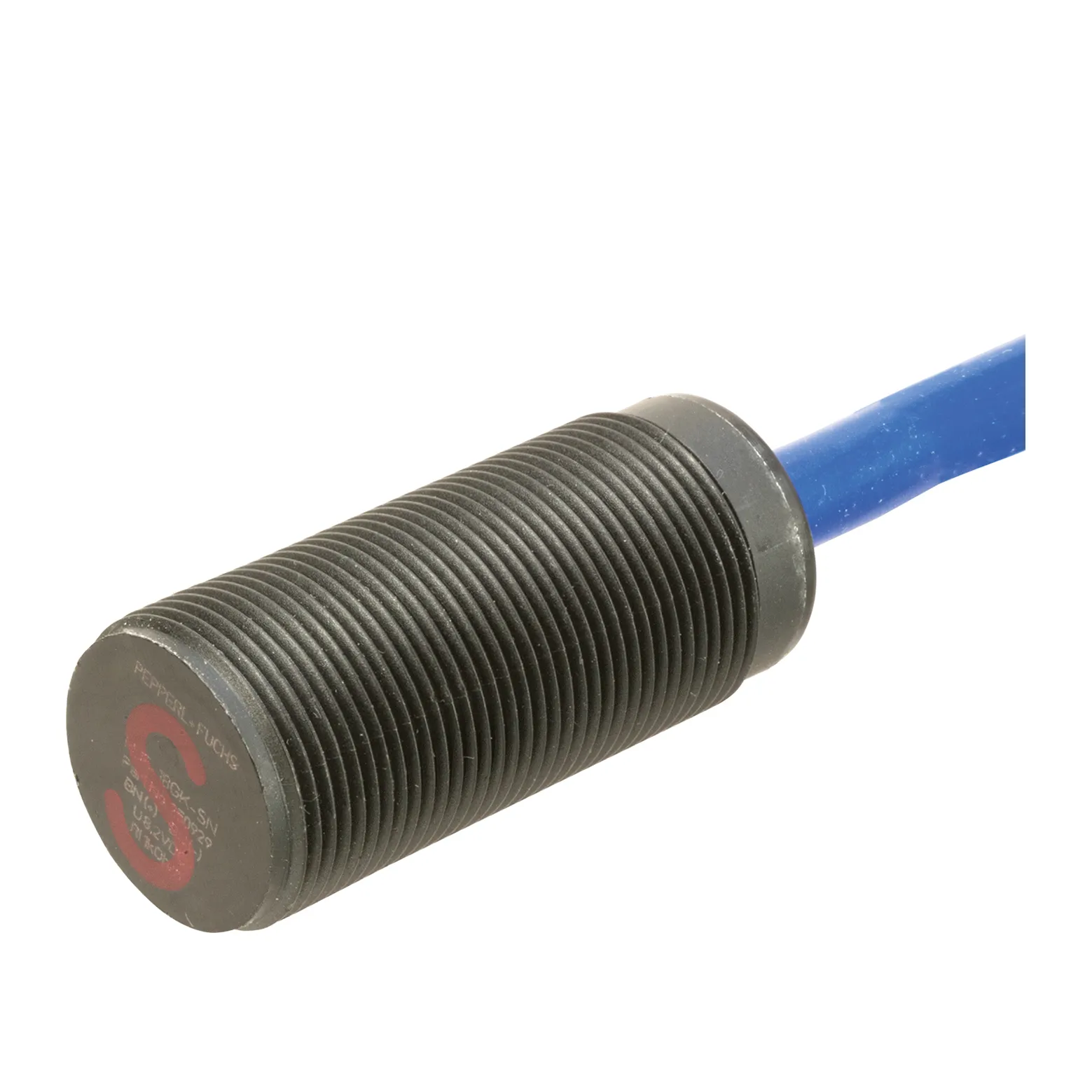

Pepperl+Fuchs Safety with Ex Approval Inductive Sensor, Normally closed (NC) Switching Output, 2-wire Output Type, 15 mm non-flush, 5 meter connection cable, NJ15-30GK-SN-5M
Part Number : NJ15-30GK-SN-5M
Brand :
![Pepperl+Fuchs]()
Pepperl+Fuchs NJ15-30GK-SN-5M is a highly reliable inductive sensor designed for accurate metal object detection in industrial environments. It offers a normally closed (nc) switching output with a NAMUR with safety function output configuration.
View all
Quantity
Description
Specifications
Downloads
Related
products
Description
Pepperl+Fuchs NJ15-30GK-SN-5M is engineered to meet the performance needs of modern automation systems. It operates with a normally closed (nc) switching function and delivers signals through a NAMUR with safety function output type. With support for flush mounting, it adapts easily to tight or embedded installations. Constructed with a durable Crastin (PBT) housing, it offers mechanical resilience in harsh environments. With an ingress protection rating of IP68, the sensor is well-protected against dust and water. Suitable for extreme working conditions, it performs reliably within ambient temperatures of -40 ... 100 °C (-40 ... 212 °F). This sensor is a robust choice for a wide range of industrial automation, machine monitoring, and positioning tasks.
Key Features
• Designed for flush mounting, allowing installation in compact spaces. • Usable up to SIL 3 acc. to IEC 61508 • Degree of protection IP68 • ATEX-/IECEx-approvals for zone 0/1/20/21 (Ex i) • ATEX-/IECEx-approvals for zone 2/22 (Ex ec/tc) • 5 meter connection cable • Integrated reverse polarity protection ensures safe electrical installation. • Built-in short-circuit protection increases sensor durability. • Reliable performance across wide ambient temperature ranges. • Durable stainless steel housing suitable for harsh industrial conditions.Specifications
Switching function
Normally closed (NC)
Output Type
NAMUR with safety function
Rated operating distance
15 mm
Installation
flush
Assured operating distance s_a
0 ... 12.15 mm
Reduction factor r_Al
0.4
Reduction factor r_Cu
0.3
Reduction factor r_304
0.85
Output type (wiring)
2-wire
Nominal voltage U_o
8.2 V (R_i approx. 1 kΩ)
Operating voltage U_B
5 ... 25 V
Switching frequency f
0 ... 500 Hz
Hysteresis H
≤ 15 %
Current consumption (measuring plate not detected)
≥ 3 mA
Current consumption (measuring plate detected)
≤ 1 mA
Safety Integrity Level
up to SIL 3
MTTF_d
11850 a
Mission Time
20 a
Diagnostic Coverage DC
0 %
Standard conformity
EN 60947-5-6; EN IEC 60947-5-2
Approvals
IECEx, ATEX, UL, CCC, Marine approval DNVGL
Ambient temperature
-40 ... 100 °C (-40 ... 212 °F)
Connection type
Types of connection used for the valve ports.
cable
Cable diameter
6 mm ± 0.2 mm
Bending radius
> 10 x cable diameter
Material (cable)
silicone
Number of cores
2
Core cross section
0.75 mm²
Cable length L
5 m
Housing material
Crastin (PBT)
Sensing face
PBT
Degree of Protection
IP68

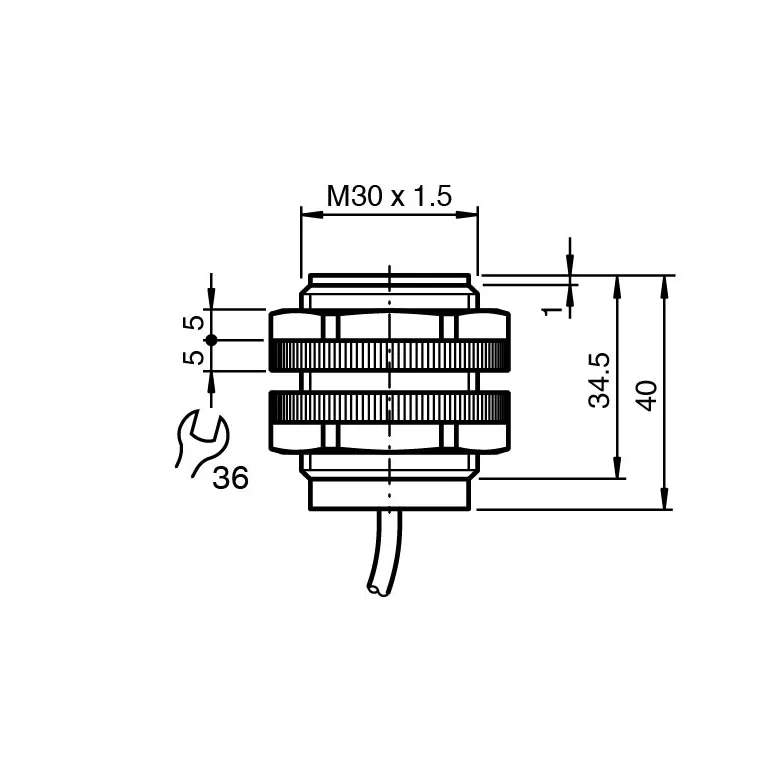

Dimensions (length)
39 mm
Dimensions (diameter)
30 mm
