Pepperl+Fuchs Magnetic Field Sensor for Mounting on Hydraulic Cylinder, 50mm Switching Range, M12X1 Connector, 4 Wire, PNP, 10-30V DC, MB-F32-A2-V1

Part Number : MB-F32-A2-V1

Brand :
Pepperl+Fuchs

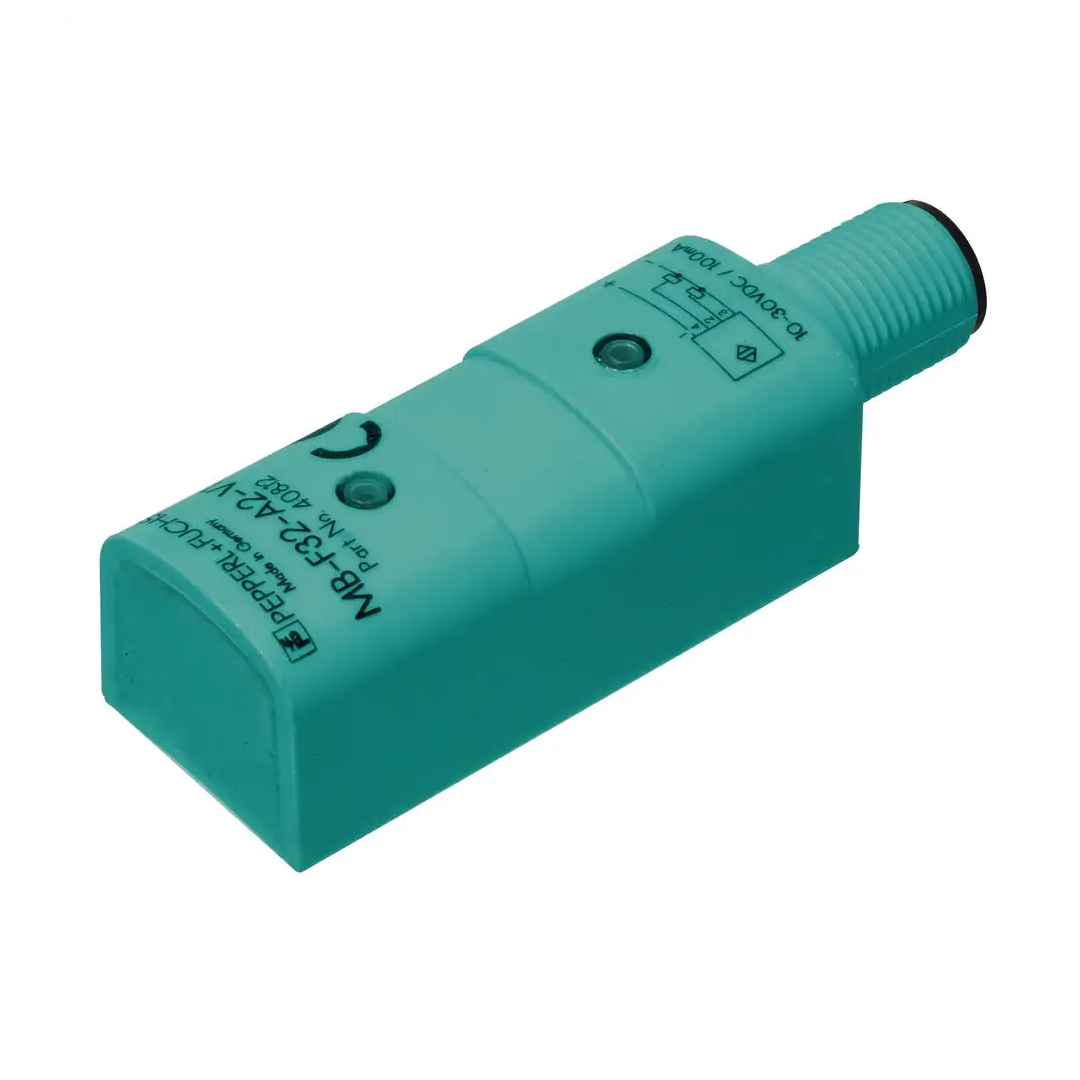

The MB-F32-A2-V1 Magnetic Field Sensor is a compact and reliable solution for detecting piston positions in hydraulic cylinders. Featuring complementary PNP outputs, 4-wire DC operation, and IP67 protection, it ensures accurate and durable performance in industrial environments.

View all

KWD 55.000

Quantity
Description
Specifications
Downloads
Related products

Description

The MB-F32-A2-V1 Magnetic Field Sensor is designed for direct mounting on hydraulic cylinders, enabling non-contact detection of piston positions through the cylinder wall. Ideal for use with magnetic, steel-made hydraulic cylinders, this sensor enhances position sensing with high accuracy and reliability. Equipped with complementary PNP outputs and 4-wire DC configuration, the sensor supports a typical switching range of 50 mm. It offers robust electrical features including reverse polarity protection, short-circuit pulsing protection, and low voltage drop (? 1.5 V). Mechanically, the sensor features a durable polyamide (PA) housing and sensing face, with a connector plug interface and M12 x 1 threading. The IP67-rated enclosure ensures protection against dust and water ingress, making it suitable for harsh industrial environments. With dual LED indicators (red and yellow) for easy status monitoring of each switching output, the MB-F32-A2-V1 ensures easy integration and diagnostics. The product complies with EN IEC 60947-5-2 standards, reflecting its high-quality industrial grade design.

Key Features

• For mounting on a hydraulic cylinder

• Detects the piston position through the cylinder wall

• Suitable for magnetic, hydraulic cylinders made of steel

Downloads

Datasheet MB-F32-A2-V1.pdf

pdf
Download

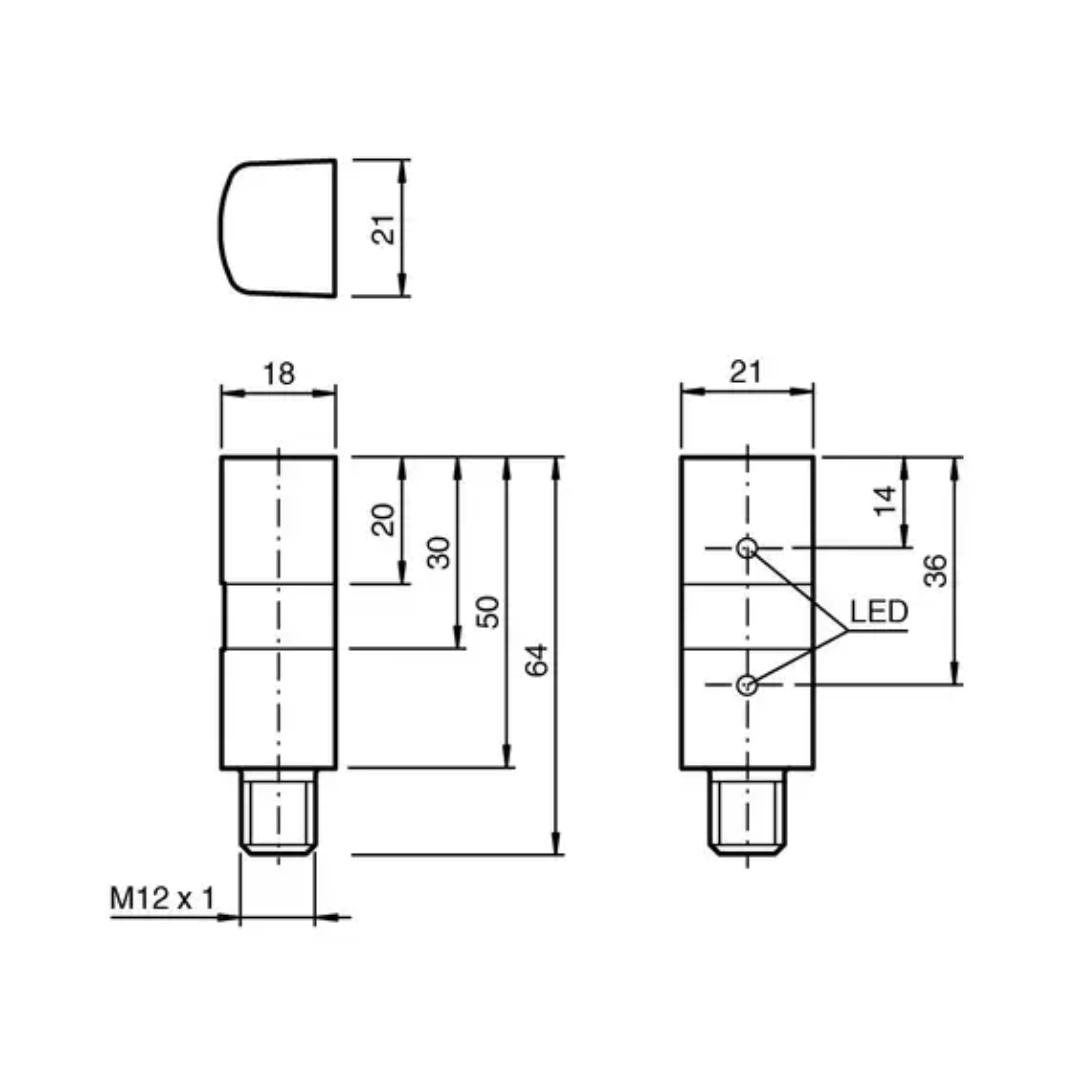

Specifications

Switching function
complementary
Output Type
PNP
Connection

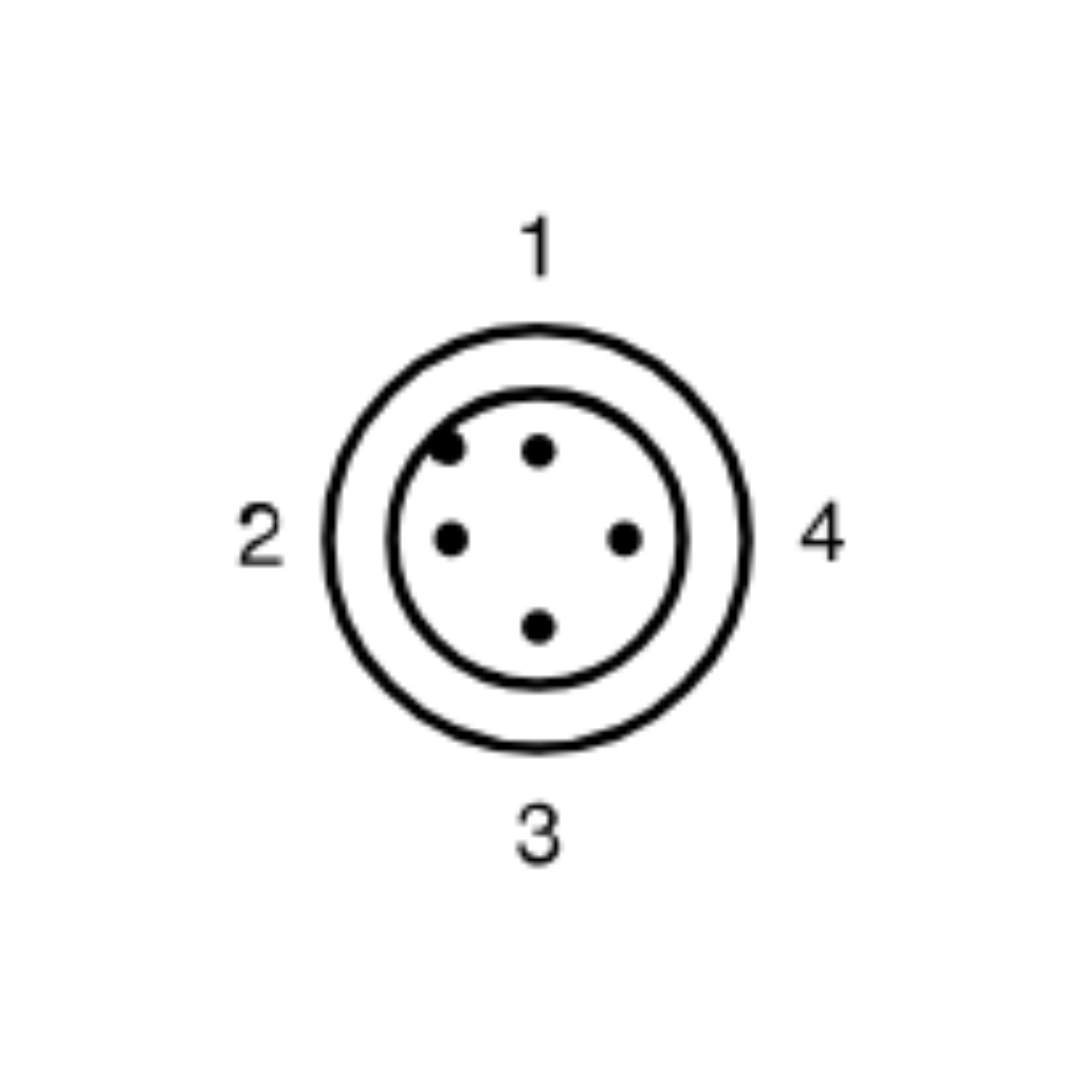

Switching output 1 : pin 4, Switching output 2 : pin 2
Installation
on the cylinder
Output polarity
DC
Switching range
typ. 50 mm
Output type (wiring)
4-wire
Operating Voltage
10 ... 30 V DC
Reverse polarity protection
reverse polarity protected
Short-circuit protection
pulsing
Voltage drop
≤ 1.5 V
Operating current
0 ... 100 mA
No-load supply current
≤ 30 mA
Connection type
Types of connection used for the valve ports.
Connector plug
Housing material
Polyamide (PA)
Sensing face
Polyamide (PA)
Degree of Protection
IP67
Threading
M12 x 1
Number of Pins
4
LED indication
red: switching state output 1, yellow: switching state output 2
Standards
EN IEC 60947-5-2
