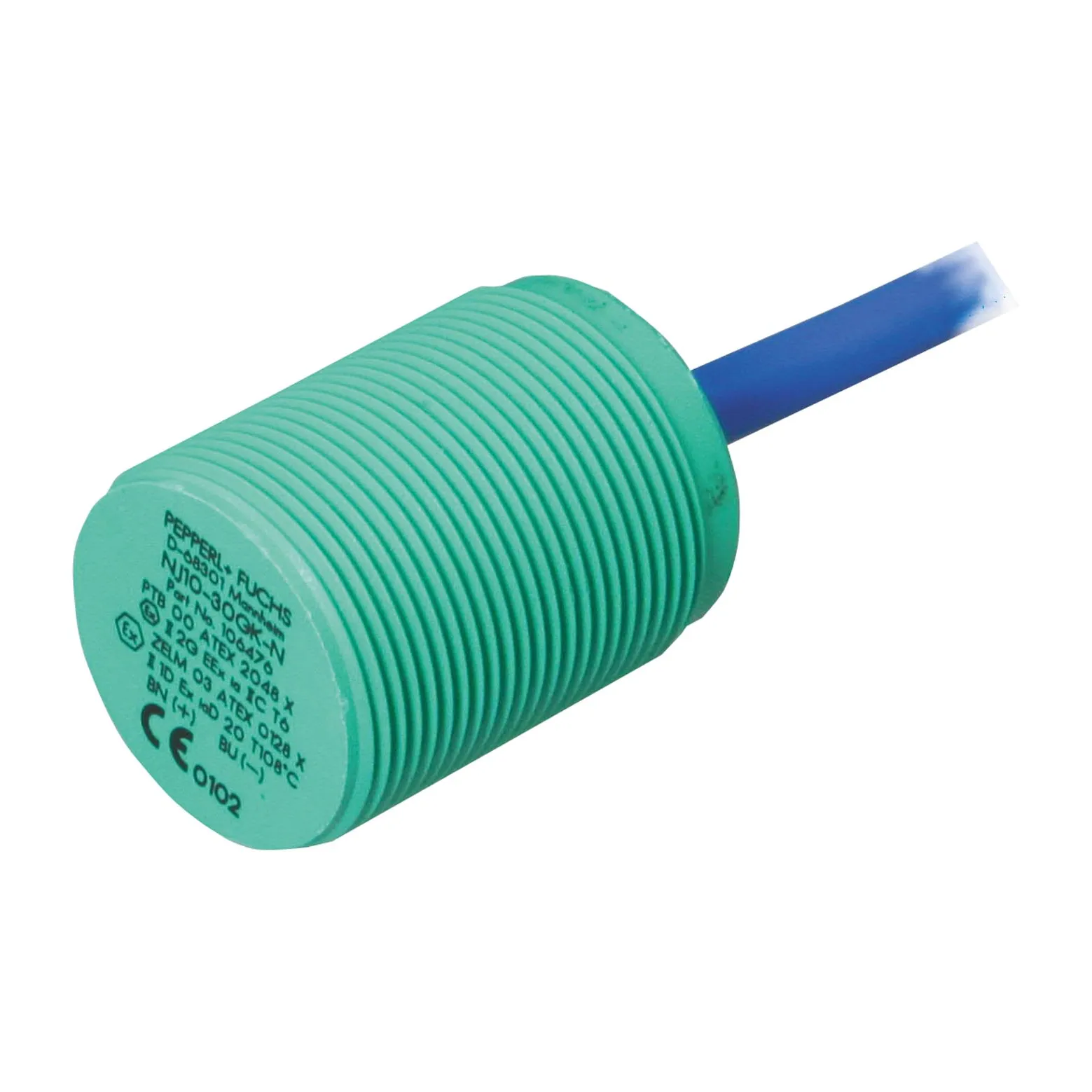

Pepperl+Fuchs Inductive Sensor, Normally closed (NC) Switching Output, 2-wire Output Type, 15 mm non-flush, NAMUR output, NJ15-30GK-N-20M
Part Number : NJ15-30GK-N-20M
Brand :
![Pepperl+Fuchs]()
Pepperl+Fuchs NJ15-30GK-N-20M is a highly reliable inductive sensor designed for accurate metal object detection in industrial environments. It offers a normally closed (nc) switching output with a NAMUR output configuration.
View all
Quantity
Description
Specifications
Downloads
Related
products
Description
Pepperl+Fuchs NJ15-30GK-N-20M is engineered to meet the performance needs of modern automation systems. It operates with a normally closed (nc) switching function and delivers signals through a NAMUR output type. With support for non-flush mounting, it adapts easily to tight or embedded installations. Constructed with a durable Stainless steel 1.4305 / AISI 303 housing, it offers mechanical resilience in harsh environments. With an ingress protection rating of IP67, the sensor is well-protected against dust and water. Suitable for extreme working conditions, it performs reliably within ambient temperatures of -25 ... 100 °C (-13 ... 212 °F). This sensor is a robust choice for a wide range of industrial automation, machine monitoring, and positioning tasks.
Key Features
• Designed for flush mounting, allowing installation in compact spaces. • NAMUR output • Integrated reverse polarity protection ensures safe electrical installation. • Built-in short-circuit protection increases sensor durability. • Reliable performance across wide ambient temperature ranges. • Durable stainless steel housing suitable for harsh industrial conditions.Specifications
Switching function
Normally closed (NC)
Output Type
NAMUR
Rated operating distance
15 mm
Installation
non-flush
Assured operating distance s_a
0 ... 12.15 mm
Reduction factor r_Al
0.4
Reduction factor r_Cu
0.3
Reduction factor r_304
0.85
Output type (wiring)
2-wire
Nominal voltage U_o
8.2 V (R_i approx. 1 kΩ)
Operating voltage U_B
5 ... 25 V
Switching frequency f
0 ... 100 Hz
Hysteresis H
3 %
Current consumption (measuring plate not detected)
≥ 3 mA at nominal voltage
Current consumption (measuring plate detected)
≤ 1 mA at nominal voltage
Safety Integrity Level
SIL 2
MTTF_d
4560 a
Mission Time
20 a
Diagnostic Coverage DC
0 %
Standard conformity
NAMUR EN 60947-5-6; IEC 60947-5-6; EN IEC 60947-5-2
Approvals
IECEx, ATEX, UL, CCC, Marine approval DNVGL
Ambient temperature
-25 ... 100 °C (-13 ... 212 °F)
Connection type
Types of connection used for the valve ports.
cable
Cable diameter
6 mm ± 0.2 mm
Bending radius
> 10 x cable diameter
Material (cable)
PVC
Number of cores
2
Core cross section
0.75 mm²
Cable length L
20 m
Housing material
Stainless steel 1.4305 / AISI 303
Sensing face
PBT
Degree of Protection
IP67

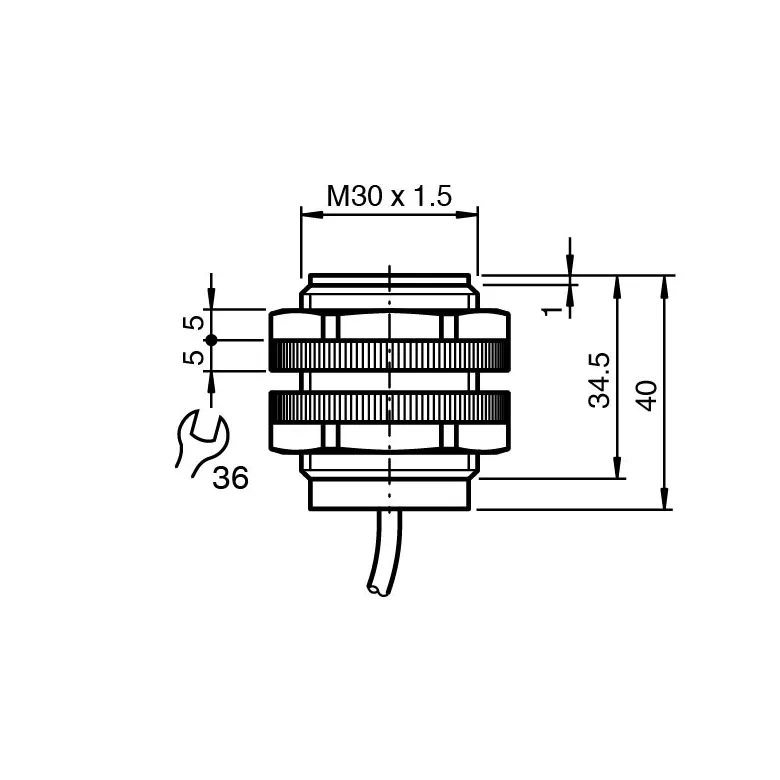

Dimensions (length)
40 mm
Dimensions (diameter)
30 mm
Scope of delivery
2 self locking nuts in scope of delivery
