Pepperl+Fuchs Inductive Sensor, Complementary Switching Output, 4-wire Output Type, NJ50-FP-A-P1
Part Number : NJ50-FP-A-P1
Brand :
![Pepperl+Fuchs]()
Pepperl+Fuchs NJ50-FP-A-P1 is a highly reliable inductive sensor designed for accurate metal object detection in industrial environments. It offers a complementary switching output with a NPN output configuration.
View all
Quantity
Description
Specifications
Downloads
Related
products
Description
Pepperl+Fuchs NJ50-FP-A-P1 is engineered to meet the performance needs of modern automation systems. It operates with a complementary switching function and delivers signals through a NPN output type. With support for non-flush mounting, it adapts easily to tight or embedded installations. It is designed with DC polarity output to ensure consistent electrical performance. Constructed with a durable PBT housing, it offers mechanical resilience in harsh environments. With an ingress protection rating of IP67, the sensor is well-protected against dust and water. Suitable for extreme working conditions, it performs reliably within ambient temperatures of -25 ... 70 °C (-13 ... 158 °F). This sensor is a robust choice for a wide range of industrial automation, machine monitoring, and positioning tasks.
Key Features
• Comfort series • Integrated reverse polarity protection ensures safe electrical installation. • Built-in short-circuit protection increases sensor durability. • Reliable performance across wide ambient temperature ranges. • Durable stainless steel housing suitable for harsh industrial conditions.Specifications
Switching function
complementary
Output Type
NPN
Rated operating distance
50 mm
Installation
non-flush
Output polarity
DC
Assured operating distance s_a
0 ... 40.5 mm
Reduction factor r_Al
0.4
Reduction factor r_Cu
0.3
Reduction factor r_304
0.85
Output type (wiring)
4-wire
Operating voltage U_B
10 ... 30 V
Switching frequency f
0 ... 100 Hz
Hysteresis H
typ. 3 %
Reverse polarity protection
reverse polarity protected
Short-circuit protection
pulsing
Voltage drop U_d
≤ 3 V
Operating current I_L
0 ... 200 mA
Off-state current I_r
0 ... 0.5 mA
No-load supply current I_0
≤ 20 mA
Time delay before availability t_v
≤ 30 ms
Operating voltage indicator
LED, green
Switching state indicator
LED, yellow
Standard conformity
EN IEC 60947-5-2
Approvals
cULus Listed, General Purpose
Ambient temperature
-25 ... 70 °C (-13 ... 158 °F)
Connection type
Types of connection used for the valve ports.
screw terminals
Information for connection
A maximum of two conductors with the same core cross section may be mounted on one terminal connection
Tightening Torque
1.2 Nm + 10 %
Core cross section
up to 2.5 mm²
Minimum core cross-section
0.5 mm² (without ferrule), 0.34 mm² (with connector sleeves)
Maximum core cross-section
2.5 mm² (without ferrule), 1.5 mm² (with connector sleeves)
Housing material
PBT
Sensing face
PBT
Degree of Protection
IP67

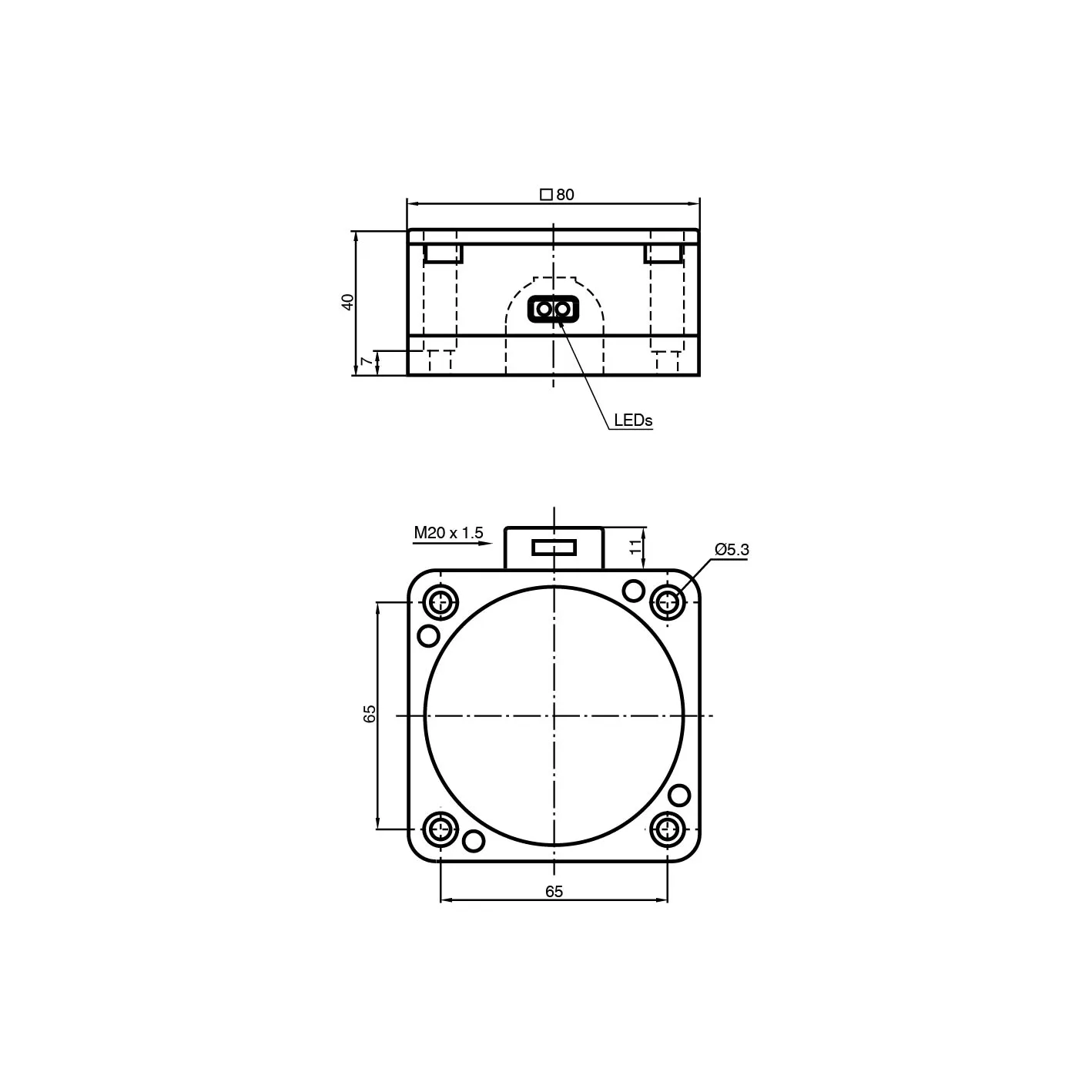

Dimensions (height)
40 mm
Dimensions (width)
80 mm
Dimensions (length)
80 mm
