Pepperl+Fuchs Inductive Sensor, Complementary Switching Output, 4-wire Output Type, 15 mm non-flush, 4-wire DC, NJ15-M1K-A2-V1
Part Number : NJ15-M1K-A2-V1
Brand :
![Pepperl+Fuchs]()
Pepperl+Fuchs NJ15-M1K-A2-V1 is a highly reliable inductive sensor designed for accurate metal object detection in industrial environments. It offers a complementary switching output with a PNP output configuration.
View all
Quantity
Description
Specifications
Downloads
Related
products
Description
Pepperl+Fuchs NJ15-M1K-A2-V1 is engineered to meet the performance needs of modern automation systems. It operates with a complementary switching function and delivers signals through a PNP output type. With support for non-flush mounting, it adapts easily to tight or embedded installations. It is designed with DC polarity output to ensure consistent electrical performance. Constructed with a durable PBT housing, it offers mechanical resilience in harsh environments. With an ingress protection rating of IP67, the sensor is well-protected against dust and water. Suitable for extreme working conditions, it performs reliably within ambient temperatures of -25 ... 70 °C (-13 ... 158 °F). This sensor is a robust choice for a wide range of industrial automation, machine monitoring, and positioning tasks.
Key Features
• Designed for flush mounting, allowing installation in compact spaces. • 4-wire DC • Integrated reverse polarity protection ensures safe electrical installation. • Built-in short-circuit protection increases sensor durability. • Reliable performance across wide ambient temperature ranges. • Durable stainless steel housing suitable for harsh industrial conditions.Specifications
Switching function
complementary
Output Type
PNP
Rated operating distance
15 mm
Installation
non-flush
Output polarity
DC
Assured operating distance s_a
0 ... 12.15 mm
Reduction factor r_Al
0.39
Reduction factor r_Cu
0.36
Reduction factor r_304
0.73
Output type (wiring)
4-wire
Operating voltage U_B
10 ... 60 V DC
Switching frequency f
0 ... 200 Hz
Hysteresis H
typ. 5 %
Reverse polarity protection
yes
Short-circuit protection
pulsing
Voltage drop U_d
≤ 2.5 V
Operating current I_L
0 ... 200 mA
No-load supply current I_0
≤ 14.5 mA
Time delay before availability t_v
≤ 50 ms
Operating voltage indicator
LED, green
Switching state indicator
LED, yellow
MTTF_d
932 a
Mission Time
20 a
Diagnostic Coverage DC
0 %
Standard conformity
EN IEC 60947-5-2
Approvals
cULus Listed, CCC
Ambient temperature
-25 ... 70 °C (-13 ... 158 °F)
Connection type
Types of connection used for the valve ports.
screw terminals
Information for connection
A maximum of two conductors with the same core cross section may be mounted on one terminal connection
Tightening Torque
1.2 Nm + 10 %
Core cross section
up to 2.5 mm²
Housing material
PBT
Sensing face
PBT
Degree of Protection
IP67

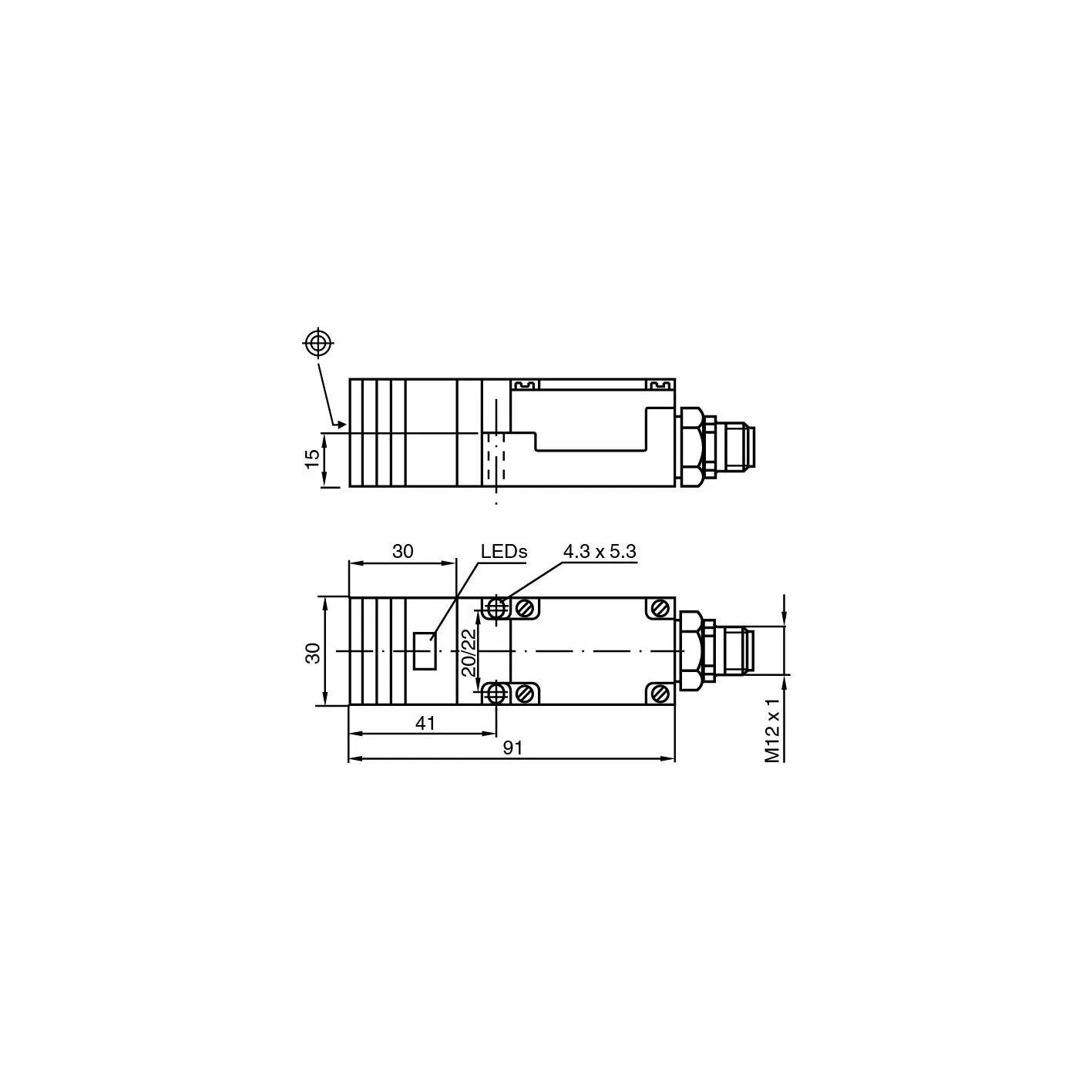

Dimensions (height)
30 mm
Dimensions (width)
30 mm
Dimensions (length)
91 mm
