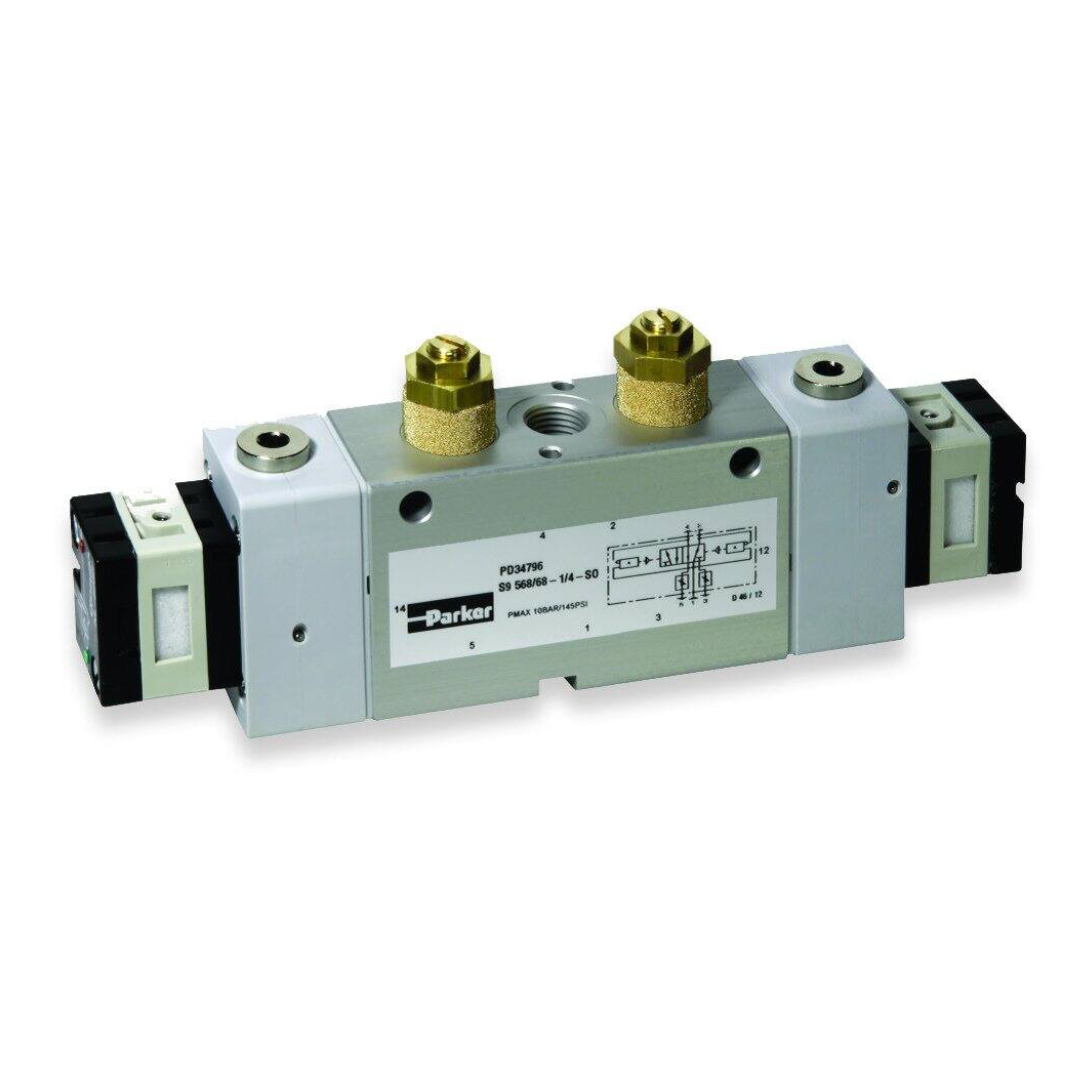

Parker S9 Series 5/2 Oscillating Direction Control Valve 1/4" BSP Port, PD34796, S9 568/68-1/4-SO
Part Number : S9 568/68-1/4-SO
Brand :
![Parker]()
Parker S9 Series PD34796 is a compact 5/2-way oscillating directional control valve with a 1/4" BSP port, designed for automatic reciprocating motion in pneumatic systems. It features built-in flow control valves for easy adjustment and supports multiple industrial automation tasks.
View all
KWD 150.000
Description

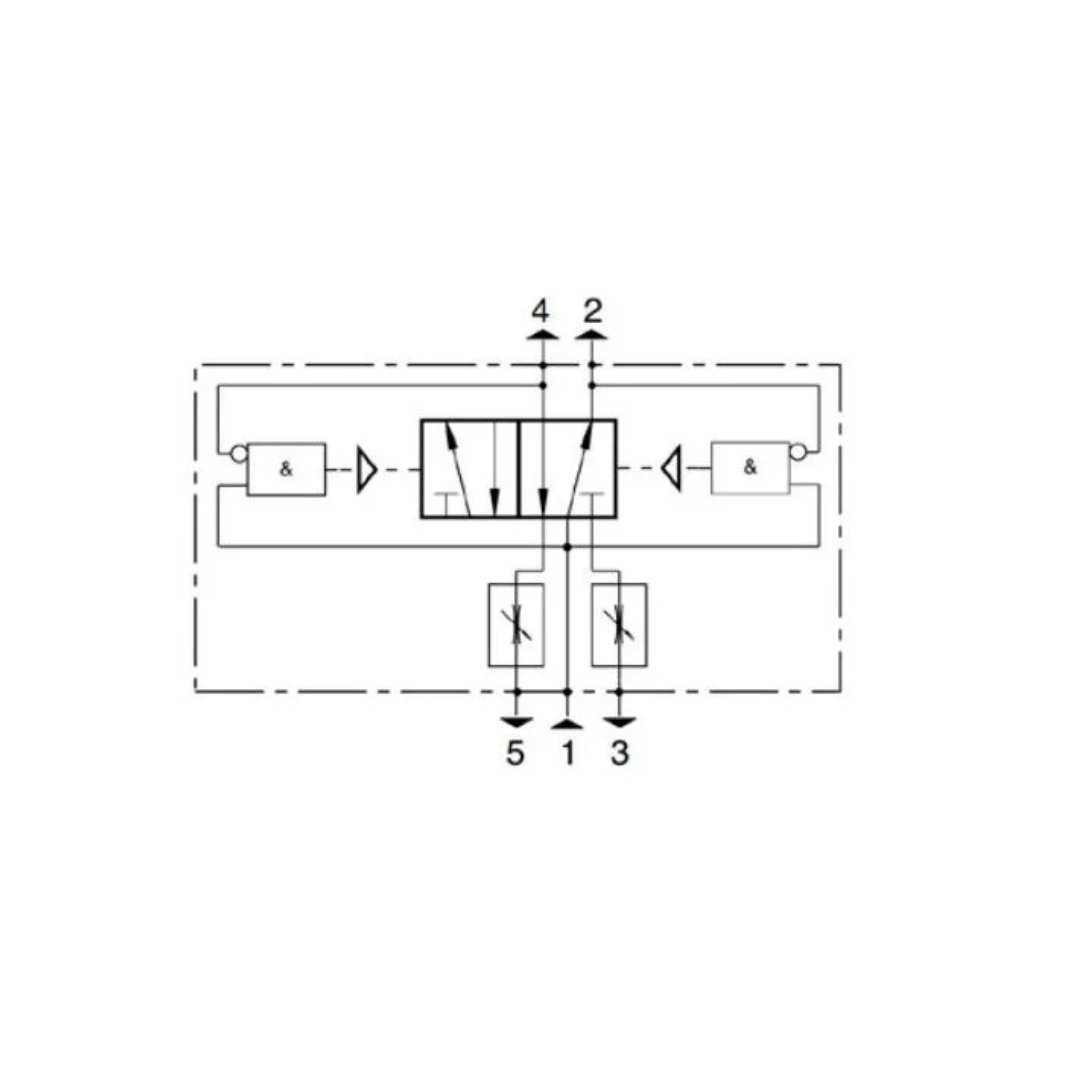

The Parker S9 Series PD34796 is a 5/2-way oscillating directional control valve engineered for robust pneumatic operations requiring automatic reciprocating motion. It features a compact design with a 1/4" BSP threaded port connection and supports applications like shaking, feeding, hammering, wiping, and spraying. With pneumatic direct actuation, this valve enables seamless control of bidirectional air supply, alternating between outlet ports 2 and 4. Integrated with two built-in flow control valves, it simplifies stroke frequency adjustments, enhancing system precision. The valve is suitable for use with filtered compressed air, with or without lubrication, and supports mounting in any orientation. Manufactured by Parker Hannifin, this valve reflects premium engineering ideal for automation tasks across industrial settings.
Key Features
• Compact 5/2-Way Design: Enables oscillating directional control for bidirectional air flow.
• 1/4" BSP Port Connection: Standard threaded connection for easy integration into pneumatic circuits.
• Built-in Flow Control Valves: Allows precise stroke frequency adjustment without external regulators.
• Pneumatic Direct Actuation: Ensures efficient, maintenance-free operation in reciprocating systems.
• Wide Operating Pressure Range: Supports pressures from 3 to 8 bar, ideal for various industrial uses.
• All-Position Mounting: Can be installed in any orientation for flexible assembly in equipment.
• Durable Build: Lightweight yet rugged body suitable for continuous-duty environments.
• Lubrication Optional: Compatible with dry or lubricated air systems, supporting VG32 mineral oil.
• Versatile Applications: Designed for shaking, feeding, hammering, wiping, plunging, and more.
