Mitutoyo 568-925 Digital ABS Borematic with interchangeable head set, 12 to 25 mm

Part Number : 568-925

Brand :
Mitutoyo

The digital ABS borematic with interchangeable head set takes measurements easily and quickly. It has titanium-coated measuring pins that give excellent durability and impact resistance. It also features a range of 12 to 25 mm and a 330° rotatable display unit for easy reading at any angle.

View all

KWD 605.630

Quantity
Description
Specifications
Downloads
Related products

Description

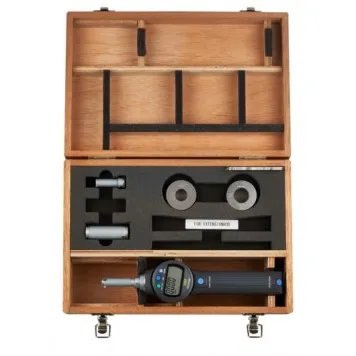

Mitutoyo 568-925 OffersThe digital ABS borematic with interchangeable head set has GO/NG tolerance judgement function. Features TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole Large LCD digits of 8.5 mm height for error-free reading 330-degree rotatable display unit for easy reading at any angle The ABSOLUTE linear encoder eliminates over-speed errors With SPC data output Setting rings for origin point setting are optional Can measure deep holes by attaching an optional extension rod Measurement can be taken closer to the bottom of a blind bore Supplied in fitted wooden case

Downloads

568-925.pdf

pdf
Download

Specifications

Range
12 to 25 mm
Accuracy
12 to 20 mm: ±5 µm, 20 to 25 mm: ±5 µm (excluding quantizing error)
Mass
690 g
Resolution
0.001 mm or 0.00005"/0.001 mm
Measuring Method
Three-point method
Display
LCD
Battery
SR44 (1 pc.)
Battery Life
Approx. 5,000 hours
Inch-Metric
Metric
