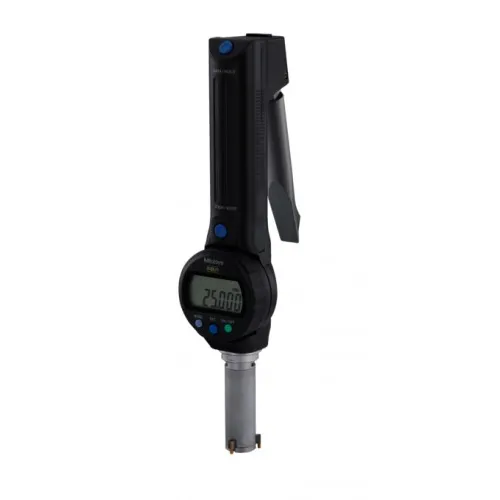

Mitutoyo 568-365 Digital ABS Borematic, 16 to 20 mm

Part Number : 568-365

Brand :
Mitutoyo

The digital ABS borematic takes measurements easily and quickly. It has titanium-coated measuring pins that give excellent durability and impact resistance. It also features a range of 16 to 20 mm and a 330° rotatable display unit for easy reading at any angle.

View all

KWD 356.250

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 568-365 OffersThe digital ABS borematic has GO/NG tolerance judgement function. Features TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole Large LCD digits of 8.5 mm height for error-free reading 330-degree rotatable display unit for easy reading at any angle The ABSOLUTE linear encoder eliminates over-speed errors With SPC data output Setting rings for origin point setting are optional Can measure deep holes by attaching an optional extension rod Measurement can be taken closer to the bottom of a blind bore Supplied in fitted wooden case

Downloads

568-365.pdf

pdf
Download

Specifications

Range
16 to 20 mm
Accuracy
±5 µm
Mass
480 g
Resolution
0.001 mm or 0.00005"/0.001 mm
Measuring Method
Three-point method
Display
LCD
Battery
SR44 (1 pc.)
Battery Life
Approx. 7,000 hours
Inch-Metric
Metric
