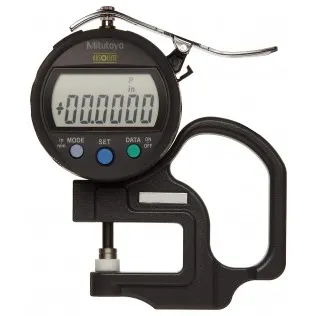

Mitutoyo 547-300A Flat Anvil ABSOLUTE Thickness Gauge, 0 to 0.4"/0 to 10 mm, inch/metric

Part Number : 547-300A

Brand :
Mitutoyo

Quickly and accurately measure the thickness of different materials or objects ranging from 0 to 0.4"/0 to 10 mm with this flat anvil thickness gauge. In addition, this thickness gauge features SPC output capabilities, an ergonomic grip handle, and an easy-to-read LCD.

View all

KWD 111.060

Quantity
Description
Specifications
Related products

Description

Mitutoyo 547-300A OffersFeaturesMeasures the thickness of a wide range of materials and objects including paper, film, wire, sheet metal, and other similar materials with high accuracyMeasurements are shown on an easy-to-read LCD displayUtilizes the ID-C Digimatic indicator to provide error-free LCD readingsThe grip handle, easy-to-reach lifting lever, and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracyThe spindles and anvils are constructed with ceramic for better corrosion resistanceThe signal can be output to an external device; waterproof data output connector protects against dust, water, and oil ingressABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered onOrigin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during useSPC output function allows for quick and easy data management in real-timeUnlimited response speed eliminates over-speed errorsMeasuring force is 1.5 N or lessApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Specifications

Range
0 to 0.4"/0 to 10 mm
Accuracy
±0.001"
Resolution
0.0005"/0.01 mm
Measuring Force
1.5 N or less
Indicator Type
Digimatic ID-C
SPC Output
Yes
Units
Inch/metric
Display
LCD
Spindle/Anvil Material
Ceramic
Battery
Type: 1 x SR44 Life: Approximately 20,000 hours under normal use
