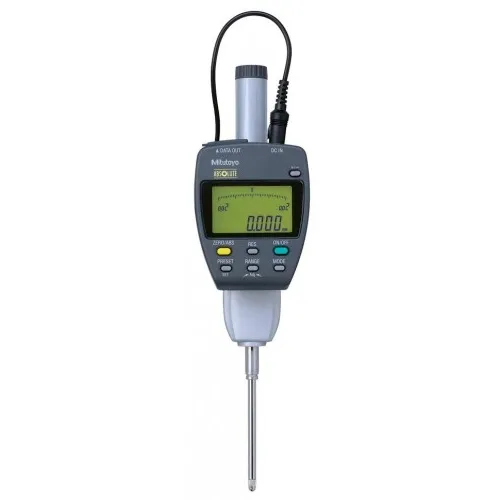

Mitutoyo 543-854A Absolute Digital Indicator ID-F, 0-2" (0-50.8mm), SPC Output

Part Number : 543-854A

Brand :
Mitutoyo

Features a large Digital/Analog LCD display with background color change for Go/No Go determination.

View all

KWD 168.620

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 543-854A OffersFeatures The external power supply eliminates the need to replace batteries for extended continuous operation GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance The PRESET button allows a reference point to be set at any spindle position. With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been preset it will not be lost when the power is turned on The ZERO/ABS button allows a display value to be zero-set at any spindle position. Press this button again to restore the absolute (ABS) coordinate The maximum, minimum, or runout value can be displayed during measurement An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching. It enhances these of operation in the same manner as a dial indicator. The display range of the analog bar can be changed

Downloads

543-854A.pdf

pdf
Download

Specifications

Measuring range
0 to 2" (0 to 50.8mm)
LCD Resolution
0.00005/0.0005/0.0001/0.001" (0.001/0.01mm)
Accuracy (20°C)
±0.00024"
Max Response Speed
Unlimited
Display
LCD
Power Supply
9V DC (via AC Adapter)
