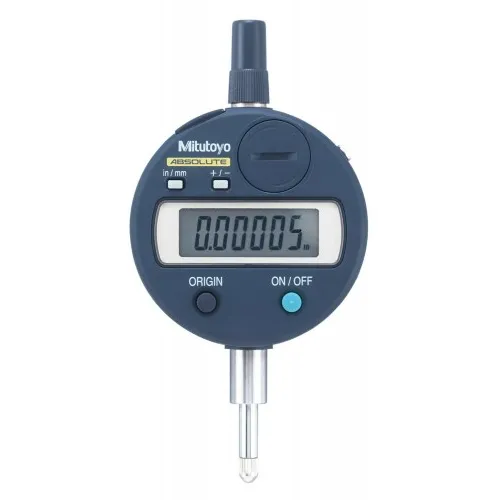

Mitutoyo 543-792-10 Absolute Digimatic Indicator, 0.5" Range, 4-48 UNF Thread Contact Point, with SPC Data Output

Part Number : 543-792-10

Brand :
Mitutoyo

This Absolute Digimatic Indicator is compact and employs the absolute linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on.

View all

KWD 60.730

Quantity
Description
Specifications
Related products

Description

Mitutoyo 543-792 Offers Features As compact as standard Series 2 dial indicators After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors SPC data output IP42 Dust Water Protection Alarm: Low Voltage, Counting value composition error, Over-flow error Absolute electrostatic capacitance type liner encoder Applications Ideal for the following applications: Digital Gauging, Fabricating, Manufacturing, Machining

Specifications

Resolution
.0005in 0.01mm
Range
.5in 12.7mm
Accuracy
.00012
Stem Diameter
3/8in
Force
2.0N or less
Contact Point
4-48 UNF Thread
