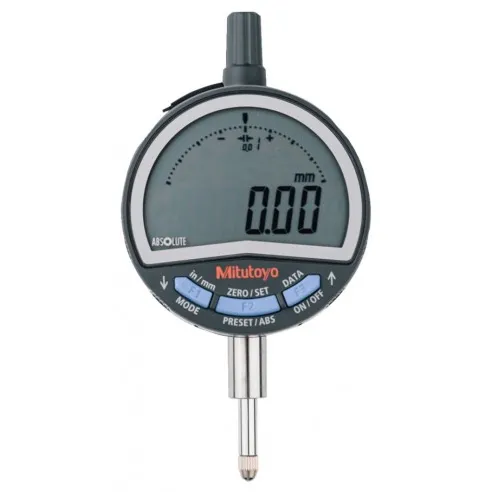

Mitutoyo 543-712B Series 543 High-Performance ABS Digimatic ID-C Indicator with flat back, 0.5"/12.7 mm, inch/metric

Part Number : 543-712B

Brand :
Mitutoyo

Precise and rugged, this digital indicator measures up to 0.5"/12.7 mm and features bidirectional serial communication to help increase work efficiency. In addition, this indicator ensures measurement operations are smooth and precise.

View all

KWD 69.030

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 543-712B OffersFeaturesBidirectional serial communication helps increase work efficiencyMeeting the need for more precise measurementsCalibration period notification function: The LCD displays an icon to notify the user when the set calibration time approachesDramatically improve work efficiency by connecting and linking with a PCBatch zero setting and power ON/OFF operation, etc. of multiple units is made possible by the use of the dedicated software "USB-ITPAK"Various functions can be set from USB-ITPAKThe contents of various function settings can be saved on a PC, and the same settings can be copied to other unitsThe large screen can display various information in an easy-to-read mannerThe analog bar is convenient for observing subtle movements such as the approach to toleranceEase of use is greatly improved by three large buttons; freely set any frequently used functions to these buttonsSimple calculation function: The result of the spindle movement value multiplied by the calculation coefficient can be displayed in real-timeManufactured to meet ASME/ANSI/AGD standardsApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Downloads

543-712B.pdf

pdf
Download

Specifications

Range
0.5"/12.7 mm
Resolution
0.0005"/0.01 mm
Maximum Permissible Error
MPE: ±0.001"/0.02 mm Hysteresis: 0.001"/0.02 mm Repeatability: 0.0005"/0.01 mm
Measuring Force
0.9 N or less
Interface
d1/S1
Detection method
Electrostatic capacitance type absolute linear encoder
Response speed
No limit
Errors/Alarms
Various setting errors, sensor error, display overflow, etc.
Possible Plunger Direction
All directions
Display
Seven segments height: 0.43" (11 mm); analog bar (±20 scale) Rotation: 330°
Environmental Conditions
Operating temperature: 32 to 104°F (0 to 40°C) Storage temperature: 14 to 140°F (-10 to 60°C) Protection level: Equivalent to IP42
Power Supply
Lithium metal battery CR2032 Battery life: Approximately 2.5 years (normal use)/2700 hours (continuous use)
Back Type
Flat back
Contact Point
4-48 UNF
Stem Diameter
0.38" (9.53 mm)
Dimensions
Ø2.32 x 4.49 x 1.5" (Ø58.9 x 114.1 x 38.1 mm)
Weight
5.6 oz (160 g)
