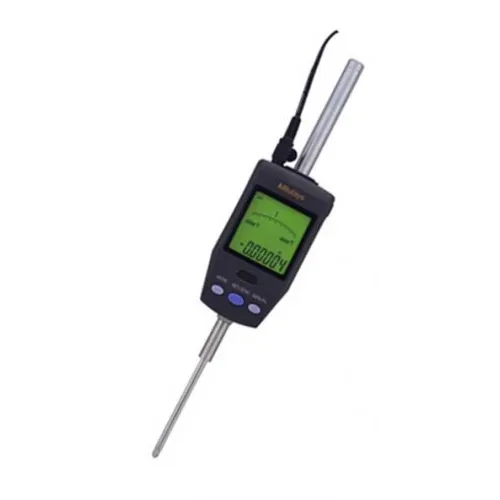

Mitutoyo 543-562A Digimatic Indicator, high accuracy, 0 to 1.2" (0 to 30.5 mm)

Part Number : 543-562A

Brand :
Mitutoyo

Comes equipped with a large display and three easy-to-use buttons with measuring functions including origin-set/preset, zero-set, GO/±NG judgment, runout measurement, peak value hold, resolution switching, and inch/mm conversion. Also, this indicator has a measuring range of 0 to 1.2" (0 to 30.5 mm).

View all

KWD 196.150

Quantity
Description
Specifications
Related products

Description

Mitutoyo 543-562A OffersFeatures High accuracy Remote control functionality via a handheld controller (or an RS-232C interface) Easy runout measurements with the well-established analog bar display The maximum, minimum, or runout value can be displayed during measurement If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance With SPC data output With RS-232C input/output

Specifications

Range
0 to 1.2" (0 to 30.5 mm)
Resolution
0.00002, 0.00005, 0.0001" (0.0005, 0.001 mm)
Accuracy
0.0015 mm
Display
LCD
Length standard
Linear encoder
Maximum Response Speed
1000 mm/s
Measuring Force
2.0 N or less
Power Supply
6 V DC (via AC adaptor)
