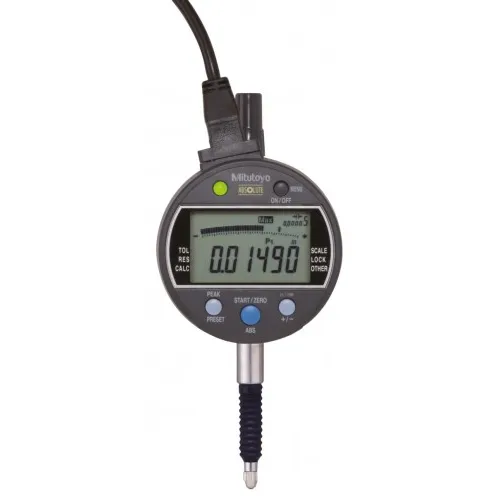

Mitutoyo 543-352B-10 Series 543 ABSOLUTE Digimatic ID-C Indicator with signal output function, 0 to 0.5"/0 to 12.7 mm, inch/metric
Part Number : 543-352B-10
Brand :
![Mitutoyo]()
Durable and reliable, this digital indicator features a dual measurement range of 0 to 0.5"/0 to 12.7 mm, and the SPC output function allows for quick and easy data management in real time. In addition, this indicator features a green/red LED and Go/No-Go output to quickly show if measurements are within tolerance.
View all
KWD 140.410
Description
Mitutoyo 543-352B-10 OffersFeaturesUses a green/red LED and Go/No-Go output to quickly show if measurements are within toleranceMeasurements are shown on a large, easy-to-read LCD displayA maximum/minimum value holding function performs Go/No-Go judgments against the peak values setThe judgment is performed by calculating the measurement data obtained instead of through a mechanical or electrical contact which provides better reliabilityThe judgment is indicated by green and red LEDs and "<, O, >" signs on the LCD allowing the signal to be outputted to an external device such as a sequencer through the NPN open-collectorThe high-speed detector measures 100 times per secondSignal can be outputted to an external deviceAnalog bar provides easy-to-read values when scanning for maximum, minimum, and TIR valuesGo/No-Go judgments are performed by setting the upper and lower tolerancesABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered onOrigin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during useSPC output function allows for quick and easy data management in real-timeFunctions include data output, remote control, origin set, zero-set, Go/No-Go judgment, analog bar, fast measuring frequency, peak detection, calculation, counting direction switching, power on/off, data output, and inch/mm conversionAlarm: Low voltage, counting value composition error, over-flow error, and tolerance limit setting errorUnlimited response speed eliminates over-speed errorsIP54 for protection resists dust and contaminants from machine shop environmentsManufactured to meet ANSI/AGD standardsApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber
Specifications
