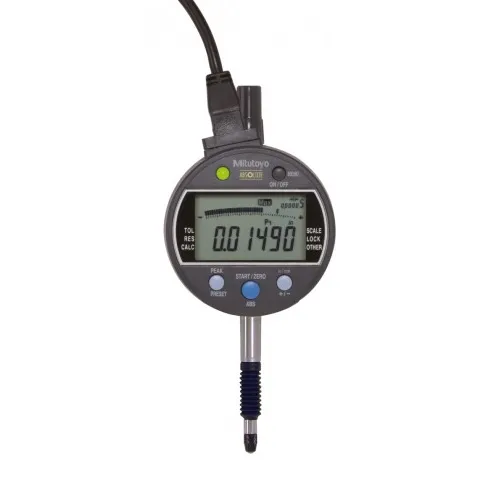

Mitutoyo 543-352-10 Digital Indicator Signal ID-C, ANSI/AGD, inch/metric

Part Number : 543-352-10

Brand :
Mitutoyo

The digital indicator signal ID-C is an externally-powered digimatic indicator with an N-ch open drain –NG, OK, +NG output, and has 0.00005” with a lug back.

View all

KWD 140.410

Quantity
Description
Specifications
Related products

Description

Mitutoyo 543-352-10 OffersThe digital indicator signal ID-C saves three different preset and tolerance settings. Features Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54) Measures MAX/MIN/RANGE (run-out value) Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE) Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger Analogue bar graph in the display (12 different scales switchable) GO/±NG tolerance judgement function

Specifications

Range:
0.5"/12.7 mm
Digital Step:
0.00005"/0.001 mm
Max. Permissible Error of Indication:
0.0001"/0.003 mm
Hysteresis:
0.0001"/0.002 mm
Repeatability:
0.0001"/0.002 mm
Mass:
285 g
Measuring Force:
≤2.5 N
Scale:
Capacitance type, ABSOLUTE linear encoder
Max. Response Speed:
Unlimited
Stem ø:
9.52 mm
Power Supply:
5 - 24 V DC/100 mA (max)
