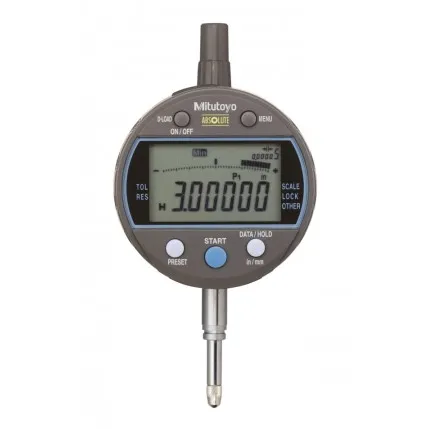

Mitutoyo 543-312B-10 Digital Indicator Bore Gauge ID-C, ANSI/AGD

Part Number : 543-312B-10

Brand :
Mitutoyo

The digital indicator bore gauge ID-C is designed for inside diameter measurement applications on bore gauges with 0.00005” and a flat back.

View all

KWD 98.820

Quantity
Description
Specifications
Related products

Description

Mitutoyo 543-312B-10 OffersThe digital indicator bore gauge ID-C has a minimum value holding function that allows you to easily detect a hole diameter. Features Analogue bar graph in the display (12 different scales switchable) The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement GO/±NG tolerance judgement function A fast measurement frequency mode(detection cycle 20 ms or 50times/s) is selectable to measure in the peak detection mode more reliably Easy indicator setup via a setup menu A USB interface box can be used to set up the indicator from PC via dedicated software

Specifications

Range:
0.5"/12.7 mm
Digital Step:
0.00005"/0.0001"/0.0005"/0.001 mm/0.01 mm
Max. Permissible Error of Indication:
0.0001"/0.003 mm
Hysteresis:
0.0001"/0.002 mm
Repeatability:
0.0001"/0.002 mm
Mass:
170 g
Scale:
Capacitance type, ABSOLUTE linear encoder
Max. Response Speed:
Unlimited
Stem ø:
0.375"
Power Supply:
1 battery CR-2032
