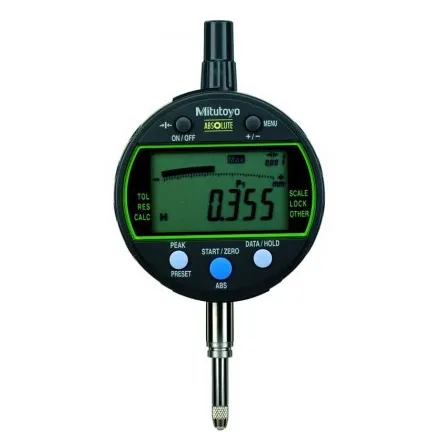

Mitutoyo 543-302B-10 Digimatic Indicator with peak hold function, 0.5" (12.7 mm)

Part Number : 543-302B-10

Brand :
Mitutoyo

Features peak hold function which prevents accidental changing of settings during operations. Additionally, this digimatic indicator comes equipped with a measuring range of 0.5" (12.7 mm) and accuracy of .0012".

View all

KWD 93.340

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 543-302B-10 OffersFeatures The max/min/range (run-out value) can be measured A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (max/min/range) more reliably Easy indicator setup via a setup menu Analogue bar graph in the display (12 different scales switchable) GO/NO-GO tolerance judgement function This indicator enables the use of a calculation function for the measured value Ax Coefficient A is freely definable and x = displacement of the plunger A USB interface box can be used to set up the indicator from PC via dedicated software

Downloads

543-302B-10.pdf

pdf
Download

Specifications

Range
0.5" (12.7 mm)
Resolution
0.00005" (0.001 mm)
Accuracy
0.0012"
Display
LCD
Contact Point
ANSI/AGD type Stem dial 3⁄8" 4 to 48 UNF thread
Measuring Force
Less than 1.5 N
Type
ANSI/AGD
Battery
CR2032
Battery Life
Approximately 12 months under normal use
