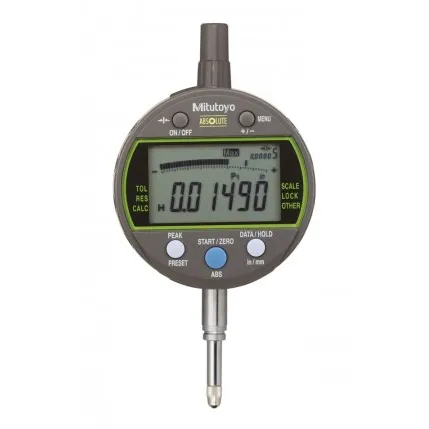

Mitutoyo 543-301-10 Digital Indicator Peak Hold ID-C, inch/metric

Part Number : 543-301-10

Brand :
Mitutoyo

The digital indicator peak hold ID-C enables the use of a calculation function for the measured value Ax with 0.5” and a lug back.

View all

KWD 109.810

Quantity
Description
Specifications
Related products

Description

Mitutoyo 543-301-10 OffersThe digital indicator peak hold ID-C is the max/min/range value holding function model. Features The MAX/MIN/RANGE (run-out value) can be measured A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably Easy indicator setup via a setup menu Analogue bar graph in the display (12 different scales switchable) GO/±NG tolerance judgement function Coefficient A is freely definable and x = displacement of the plunger A USB interface box can be used to set up the indicator from PC via dedicated software

Specifications

Range:
0.5"/12.7 mm
Digital Step:
0.00005"/0.001 mm
Max. Permissible Error of Indication:
0.0001"/0.003 mm
Hysteresis:
0.0001"/0.002 mm
Repeatability:
0.0001"/0.002 mm
Mass:
170 g
Measuring Force:
≤ 1.5 N
Scale:
Capacitance type, ABSOLUTE linear encoder
Max. Response Speed:
Unlimited
Stem ø:
8 mm
Power Supply:
1 battery CR-2032
