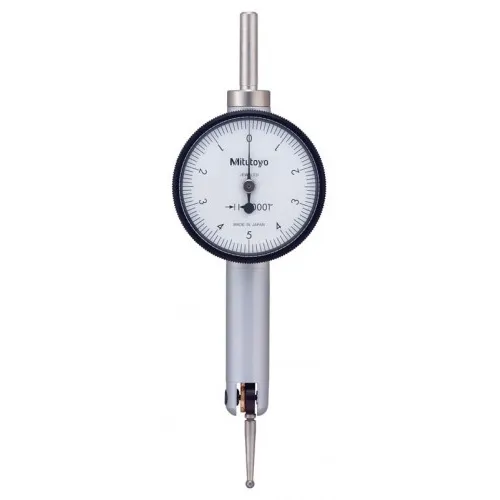

Mitutoyo 513-512-10E Series 513 Inch Pocket Dial Test Indicator, 0 to 0.02", 0.0005"

Part Number : 513-512-10E

Brand :
Mitutoyo

Compact and accurate, this dial test indicator features a reversible measuring direction and adjustable contact point to measure surface variations in narrow or recessed areas. In addition, the one-piece movement provides high-impact resistance and better durability, and the jeweled bearing delivers high sensitivity and quick response.

View all

KWD 44.390

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 513-512-10E OffersFeaturesReversible measuring direction and adjustable contact point to measure surface variations in narrow or recessed areasA horizontal face parallel to the axis, and three dovetail mounts allow for horizontal or vertical mounting from the front, top, or back of the indicatorOne-piece movement provides high-impact resistance and better durabilityJeweled bearings deliver high sensitivity and quick responseNo-clutch structure provides automatic reversal of measuring directionO-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothlyContact point is adjustable within 220° of the axisContact point holder prevents backlashContact point is carbide tipped for lasting accuracy, durabilityCrystal is glare-free with a scratch-resistant coatingApplicationsGeneral manufacturingAerospaceAutomotiveDefenseElectronicsEnergyPlastics and rubber

Downloads

513-512-10E.pdf

pdf
Download

Specifications

Range
0 to 0.02"
Accuracy
±0.0005"
Graduation
0.0005"
Measuring Force
0.3 N or less
Dial Reading
0-10-0
Technology
Mechanical
Units
Inch
Contact Point
Type: Carbide Length: 1.5" (37.4 mm)
Dimensions
3.3 x 0.9 x Ø1.3" (83.5 x 24 x Ø33 mm)
Weight
0.1 lbs (45 g)
