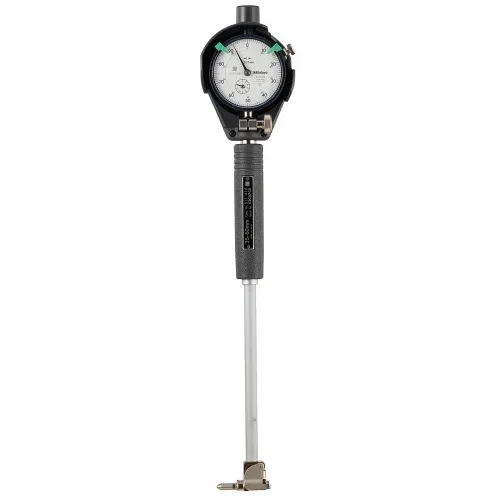

Mitutoyo 511-439-20 Series 511 Blind Hole Bore Gauge with protective cover, 1.4 to 2.4", inch

Part Number : 511-439-20

Brand :
Mitutoyo

Ideal for measuring the inner dimensions at the bottom of blind bores and holes, this bore gauge features a range of 1.4 to 2.4" and a high accuracy of 0.00016". In addition, the interchangeable anvils constructed of alloy steel allow for measurements of a wide range of bore diameters.

View all

KWD 127.520

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 511-439-20 OffersFeaturesMeasures ID at position close to the bottom of holes with high accuracy (4 µ/0.00016")A pendulum guide structure offers the ability to slide the gauge for easier measurements without sacrificing accuracyA two-point contact system detects geometry anomalies such as ovalness and taperLarge, innovative designed hollow grips are easier to hold and reduce heat transfer from the operator for better accuracyFully protected by a rugged coverThe gauge stem diameter is 0.375" (9.5 mm)Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durabilityApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Downloads

511-439-20.pdf

pdf
Download

Specifications

Range
1.4 to 2.4"
Accuracy
0.00016"
Repeatability
0.00004"
Graduation
0.0001"
Adjacent Error
0.0004"
Number of Anvils
6
Number of Spacers
4
Units
Inch
Contact Point
Carbide-tipped
Stem Diameter
0.375" (9.5 mm)
