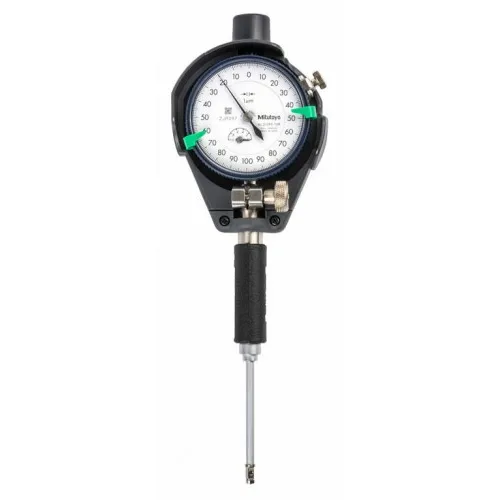

Mitutoyo 511-204-20 Series 511 Small Hole Bore Gauge, 10 to 18.5 mm, 0.01 mm

Part Number : 511-204-20

Brand :
Mitutoyo

Measures inside bore diameters with an accuracy of up to ±5 µm, this bore gauge comes with nine interchangeable anvils to measure several different bore diameters with the same gauge. In addition, it features a range of 10 to 18.5 mm, and a two-point contact system that detects geometry anomalies such as ovalness and taper.

View all

KWD 172.360

Quantity
Description
Specifications
Related products

Description

Mitutoyo 511-204-20 OffersBore gauge featuresLarge and innovative designed grips are easier to hold and reduce heat transfer from the operator for better accuracyFully protected by a rugged coverInterchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durabilityA two-point contact system detects geometry anomalies such as ovalness and taperDial indicator featuresOffered with flat back for mounting purposesA revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping rangeRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceContact point is carbide tipped for lasting accuracy, durabilityCrystal is glare-free with a scratch-resistant coatingManufactured to meet ISO/JIS standardsApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Specifications

Range
  • 10 to 18.5 mm
  • 0 to 10 mm
Graduation
0.01 mm
Accuracy
  • ±5 µm
  • ±0.013 mm
Repeatability
2 µm
Stem Diameter
0.3" (8 mm)
Number of Spacers
1
Technology
Mechanical
Units
Metric
Range Revolution
1 mm
Dial Reading
0-100
Measuring Force
1.4 N or less
Back Type
Flat back
Standards
Meets ISO/JIS
