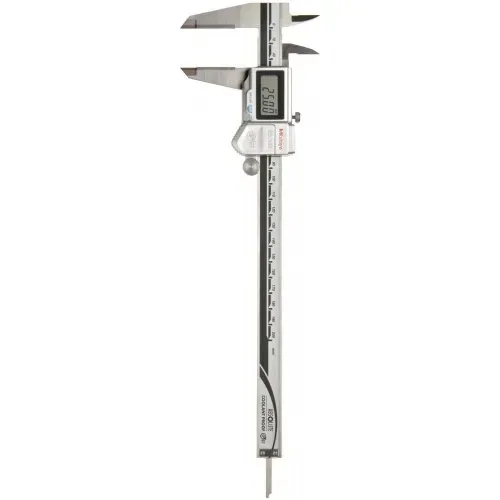

Mitutoyo 500-724-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-200mm, OD & ID Carbide Jaws, SPC Output

Part Number : 500-724-20

Brand :
Mitutoyo

The Mitutoyo 500-724-20 Absolute Coolant Proof Digimatic Caliper has a measuring range of 0-200mm with a 0.01mm Resolution. Includes SPC data output as well as Inside and Outside diameter carbide-tipped measuring jaws.

View all

KWD 115.050

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 500-724-20 Offers Features Font height of 9mm for improved visibility Easy to remove battery cap that doesn't require a screwdriver Incredibly long battery life of 5 years due to low current integrated circuit Easy to use with the advanced ergonomic design and only 1 button Incorporates Mitutoyo's ABSOLUTE measurement system so there is no need to reset the origin The automatic power-on/off function shuts down the LCD display after 20 minutes inactivity, but the ABS scale origin is unaffected Power is restored to the display when the slider is moved Stepped features can be measured Can be integrated into statistical process control and measurement systems An inspection certificate is supplied as standard (however, this cannot be used as a calibration certificate as it is undated)

Downloads

500-724-20.pdf

pdf
Download

Specifications

Range
0 to 200mm
Accuracy (excluding quantizing error)
≤200mm: ±0.02mm >200mm: ±0.03mm
Digital Step
0.01mm
Auto Power OFF
After 20min of non-use
Max Response Speed
Unlimited
Repeatability
0.01mm or 0.0005"/0.01mm
Battery Life
Approx. 20000 hours (5 years) under normal use
Display
LCD, Character Height 9mm
Power Supply
SR44 (1 pc)
Weight
198g
